OK40F Polished Tungsten Carbide Rod With M6 Thread Detector Rods HRA 91.9
OK40F Polished Tungsten Carbide Rod With M6 Thread Detector Rods HRA 91.9
OK40F Polished Tungsten Carbide Rod With M6 Thread Detector Rods HRA 91.9
OK40F Polished Tungsten Carbide Rod With M6 Thread Detector Rods HRA 91.9
OK40F Polished Tungsten Carbide Rod With M6 Thread Detector Rods HRA 91.9
OK40F Polished Tungsten Carbide Rod With M6 Thread Detector Rods HRA 91.9
OK40F Polished Tungsten Carbide Rod With M6 Thread Detector Rods HRA 91.9
OK40F Polished Tungsten Carbide Rod With M6 Thread Detector Rods HRA 91.9
Specifications
Brand Name :
OED or OEM
Model Number :
Detector Rods
Certification :
ISO 9001: 2015
Place of Origin :
China
MOQ :
Small qty of amples are available.
Price :
5-10USD/PC, special tools can be negotiable
Payment Terms :
L/C, D/A, D/P, T/T, Western Union, MoneyGram
Supply Ability :
2000pcs per month
Delivery Time :
Standard products in one week, special tools in 45 days
Packaging Details :
plastic box/box + Cartons
Material :
Tungsten carbide
ISO Grade :
K40
Application :
Detector Rods
Hardness :
HRA 91.9
TRS :
3800
Density :
14.45
Outer diameter :
6
Length :
40
Roughness :
Ra 0.2
Description

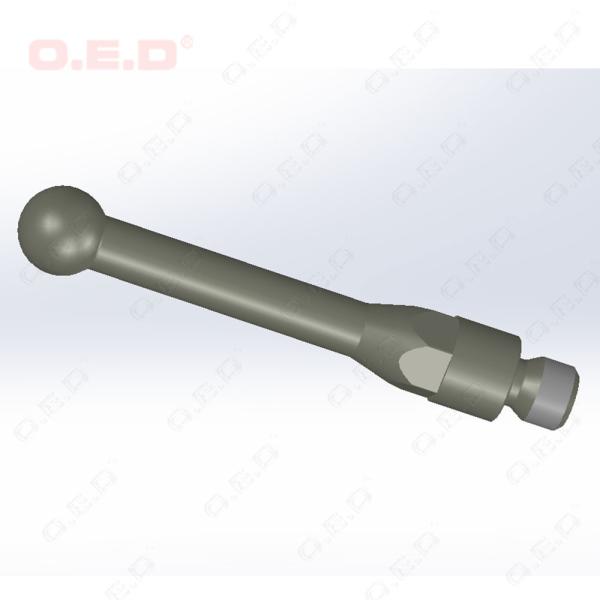

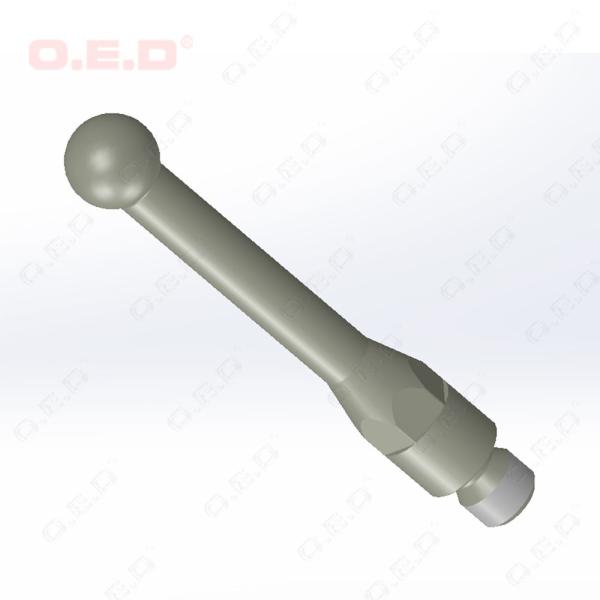

OK40F Polished Tungsten Carbide Rod With M6 Thread Detector Rods HRA 91.9​

Polished carbide detector rods with thread M6.

General Dimensions:
Outer diameter 6mm
Length 40mm
Ball size 8mm
Perpendicularity 0.02mm
Circularity 0.02mm

Thread M6

Remove all sharp edges. It is used for testing the equipment detector head.

All surface Ra 0.2

OK40F Polished Tungsten Carbide Rod With M6 Thread Detector Rods HRA 91.9OK40F Polished Tungsten Carbide Rod With M6 Thread Detector Rods HRA 91.9

Carbide Grade OK40F

Wear part grades Grade ISO Grade Co Density

Hardness

HRA

 T.R.S. Grain size
OK01UF K01-K05 3.00 15.10 93.50 2000 Ultra Fine
OK10F K10-K20 6.00 14.90 92.00 2000 Middle/Fine
OK30 K30 8.00 14.80 91.50 2200 Fine
OK40F K40 10.00 14.45 91.90 3400 Middle/Fine
OK50F K50 12.00 14.25 90.00 3500 Fine
OG10 G10 8.00 14.70 91.00 2100 Middle
OG20 G20 11.00 14.40 89.00 2400 Middle
OG30 G30 15.00 14.20 86.70 2800 Middle
OG40 G40 20.00 13.65 85.00 3000 Middle
OG50 G50 25.00 13.20 84.20 3200 Middle


we specialized in producing Punches, Ejector Pins and sleeves, Die Buttons, Bushes, Ejector Punches, Drill Rods, Ball Cages, Springs,Block Sets of many different standards



OK40F Polished Tungsten Carbide Rod With M6 Thread Detector Rods HRA 91.9


OK40F Polished Tungsten Carbide Rod With M6 Thread Detector Rods HRA 91.9


OK40F Polished Tungsten Carbide Rod With M6 Thread Detector Rods HRA 91.9
