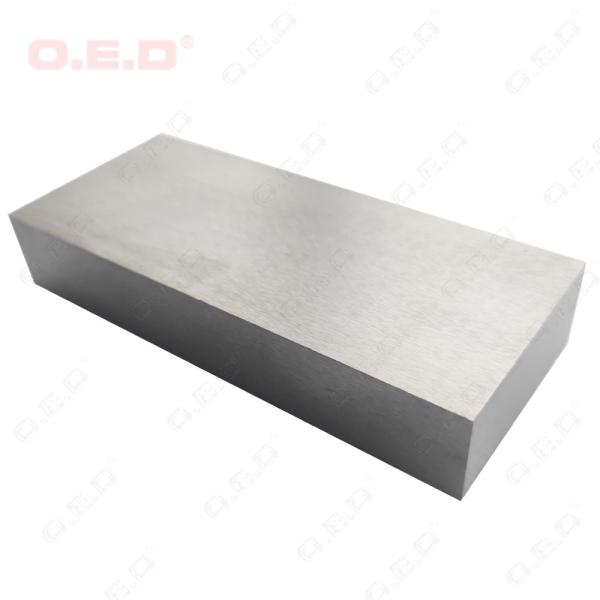

50mm Thickness Tungsten Carbide Block Ground Plates G20 HRA 90
50mm Thickness Tungsten Carbide Block Ground Plates G20 HRA 90
50mm Thickness Tungsten Carbide Block Ground Plates G20 HRA 90
50mm Thickness Tungsten Carbide Block Ground Plates G20 HRA 90
50mm Thickness Tungsten Carbide Block Ground Plates G20 HRA 90
50mm Thickness Tungsten Carbide Block Ground Plates G20 HRA 90
Specifications
Brand Name :
OED/OEM is available
Model Number :
Carbide block
Certification :
ISO9001:2015
Place of Origin :
China
MOQ :
Small qty of amples are available.
Price :
negotiable
Payment Terms :
L/C, D/A, D/P, T/T, Western Union, MoneyGram
Supply Ability :
2000kgs per month
Delivery Time :
Standard products in one week, special tools in 45 days
Packaging Details :
plastic box/box + Cartons
Material :
Tungsten carbide
Applicatin :
Carbide EDM block
ISO Grade :
G20
Length :
185
width :
45
Thickness :
50
TRS :
2800
Hardness :
HRA 90
Density :
14.4
Description

50mm Thickness Tungsten Carbide Block Ground Plates G20 HRA 90

Tungsten Carbide Preforms for Tooling and Wear Parts. Our extensive experience and the full range of cobalt grades gives us the capability to produce a wide variety of high-quality tungsten carbide blocks/plates


Ground carbide block for making molds

Length 185mm

Width 45mm
Thickness 50mm

Tolerance for all dimensions +0.2mm

Grade recommended:

Wear part grades Grade ISO Grade Co Density Hardness T.R.S. Grain size
OK05UF K05 6.00 14.90 93.20 3000 Ultra Fine
OK10F K10-K20 6.00 14.90 92.00 2000 Middle/Fine
OK30M K30 8.00 14.80 91.50 2200 Fine
OK40F K40 10.00 14.45 91.90 3400 Middle/Fine
OK50M K50 12.00 14.25 90.00 3500 Fine
OG30M G10 8.00 14.70 91.00 2100 Middle
OG60M G20 11.00 14.40 89.00 2400 Middle
OG70M G30 15.00 14.20 86.70 2800 Middle
OG80M G40 20.00 13.65 85.00 3000 Middle
OG90M G50 25.00 13.20 84.20 3200 Middle

50mm Thickness Tungsten Carbide Block Ground Plates G20 HRA 9050mm Thickness Tungsten Carbide Block Ground Plates G20 HRA 90

50mm Thickness Tungsten Carbide Block Ground Plates G20 HRA 9050mm Thickness Tungsten Carbide Block Ground Plates G20 HRA 90
