Specifications
Brand Name :
OED or OEM
Model Number :
Tube Scraper Inserts
Certification :
ISO 9001: 2008
Place of Origin :
China
MOQ :
10pcs
Price :
1-3usd
Payment Terms :
L/C, D/A, D/P, T/T, Western Union, MoneyGram
Supply Ability :
10000pcs per month
Delivery Time :
Standard products in one week, special tools in 45 days
Packaging Details :
plastic box/+ Cartons
Material :
Tungsten carbide
Type :
Special Inserts
ISO Grade :
P/N/M
Item :
LNMT402514K
L :
40
W :
25.4
Φd :
9.2
r :
0.4
Description

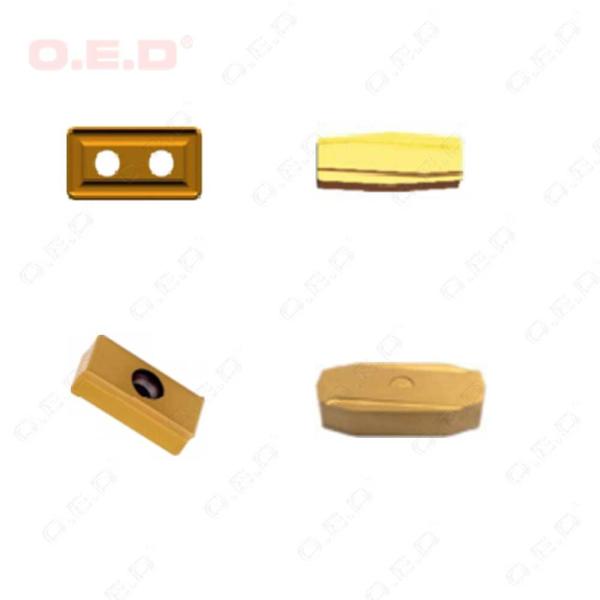

LNMT402514K Special Tube Scraper Inserts Carbide Cutting Inserts​

  • LNMT402514K
  • L: 40
  • W: 25.4
  • Φd: 9.2
  • r: 1.4

LNMT402514K special inserts

Inserts Shape Type Dimensions(mm) Grade for Choice Application
L W Φd r T1300 T3220
Special Tube Scraper Carbide Cutting Tool Inserts P/N/M ISO Grade  LNMT402514K-SK 40 25.4 9.2 1.4 For roughing
LNMT502514K-SK 50 25.4 9.2 1.4


Special Tube Scraper Carbide Cutting Tool Inserts P/N/M ISO Grade  LNMG2006K-E 50 25.4 9.2 1.4 For roughing





Recommend grades for milling inserts

Grade ISO Application Description
T8200 P15-P30 The high-roughness substrate is matched with a suitable thickness of AlTiN coating to achieve both wear resistance and toughness. It's suitable for many fields from general machining of stainless steel turning to mill in the conditions of stable working, and the pursuit of high wear-resistant occasions.
M10-M25
T8290 K15-K25 The toughness substrate with solid solution strengthening technology has excellent bending strength and thermal shock resistance. The highly heat-stable multi-component TiAlN coating provides more effective protection for the cutting edge, and is the preferred grade for milling of steel, stainless steel etc.
P15-P25
M15-M25
T8300 P15-P30 Suitable for milling of stainless steel and steel materials under severe working conditions.
M15-M30
T8450 P30-P40 suitable for interrupting processing and rough machining of steel and stainless steel, and also suitable for low speed and interrupted processing of heat resistant alloys.
M20-M40
S20-S30
T3280 K15-K30 The substrate with moderate strength and hardness + nano-coating, suitable for semi-finishing and rough milling of cast iron.
C5230 P10-P25 The grade for cermet milling. It has good toughness and crater wear resistance, and is suitable for finishing and semi-finishing milling of steel, cast iron etc.
K10-K25
M10-M25
T6200 S15-S30 The substrate with excellent deformation resistance plus nano-coating, suitable for semi-finishing milling of hard-to-machine materials such as high-temperature alloys.
T6250 H10-H15 High hardness and high strength ultra-fine cemented carbide substrate plus nano-coating, suitable for milling of hardened steel.

Special Tube Scraper Carbide Cutting Tool Inserts P/N/M ISO GradeSpecial Tube Scraper Carbide Cutting Tool Inserts P/N/M ISO Grade

Special Tube Scraper Carbide Cutting Tool Inserts P/N/M ISO Grade


Our advantages:

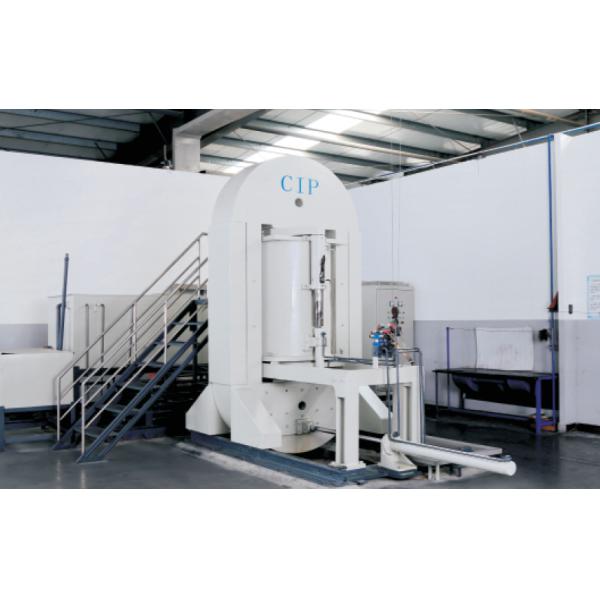

  • CIP forming.

CIP Forming can eliminate the internal defects of raw sintered carbide blanks in particular. It can provide uniform density suppression products for the thick carbide strips/plate and special shape carbide products.

  • Cryogenic process

The internal stress can be removed through the cryogenic process to improve the microstructure.

  • Vibration process

The internal stress can be removed through the vibration process to improve the overall performance.

  • Heat treatment

The service can be improved through the heat treatment process.





Special Tube Scraper Carbide Cutting Tool Inserts P/N/M ISO Grade
CIP forming.
CIP Forming can eliminate the internal defects of raw sintered carbide blanks in particular. It can provide uniform density suppression products for the thick carbide strips/plate and special shape carbide products.


Special Tube Scraper Carbide Cutting Tool Inserts P/N/M ISO Grade




Special Tube Scraper Carbide Cutting Tool Inserts P/N/M ISO Grade



Why choose us for carbide cutting tools:

  • Professional production equipment. From spray drying towers, extrusion molding, mold molding, injection molding, CIP, HIP sintering furnaces, flat grinders, heartless grinders, round grinders, EMD cutting, polishing machines, etc. OED can provide reliable quality assurance for your products.

  • The strict control of the production processing. From raw materials, sintering, processing, we will strictly test each process, non-conforming products will not enter the subsequent production.

  • Proficient technical team. Senior carbide raw materials engineers: To analyze whether the product meets your application requirements. Senior production managers: To study the most suitable for your product processing methods. Skilled technical inspectors: To test whether the finished product meets your drawing requirements.

  • Reliable service. Not only can we provide pre-sales technical services, but our engineers can also come up with product improvements to provide the most reasonable solution for your product.

  • Low-cost sample development. For trial orders, such as quantity below 10pcs, our engineer team can help customers to find the solution with mold fees. In this way, our customers can try the samples at a minimized cost.

  • Fast delivery. Standard products could be delivered in one week, and the special carbide tools could be finished in 25-45 days after confirming the drawings or 3D model.
