OED S1-32-722-67 Carbide Drilling Tools , Hole Drilling Tapered Cross Bits
OED S1-32-722-67 Carbide Drilling Tools , Hole Drilling Tapered Cross Bits
OED S1-32-722-67 Carbide Drilling Tools , Hole Drilling Tapered Cross Bits
OED S1-32-722-67 Carbide Drilling Tools , Hole Drilling Tapered Cross Bits
Specifications
Brand Name :
OED or OEM
Model Number :
Q8-34-1222-65
Certification :
ISO 9001: 2008
Place of Origin :
China
MOQ :
Small qty of amples are available.
Price :
negotiable
Payment Terms :
L/C, D/A, D/P, T/T, Western Union, MoneyGram
Supply Ability :
2000kgs per month
Delivery Time :
Standard products in one week, special tools in 45 days
Packaging Details :
plastic box/box + Cartons
Material :
42CrMo/Z780/45CrNiMov
Application :
Rocking drlling tools
Color :
Golden/Red/Yellow
Water Holes :
1 On Front, 2 On Side
Taper Degree :
7°
Button Bit :
32mm
Description

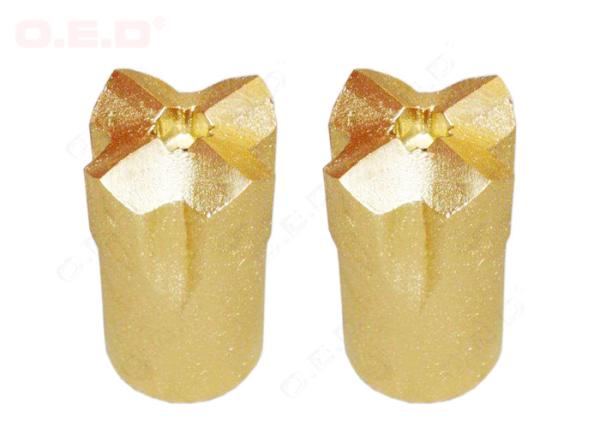

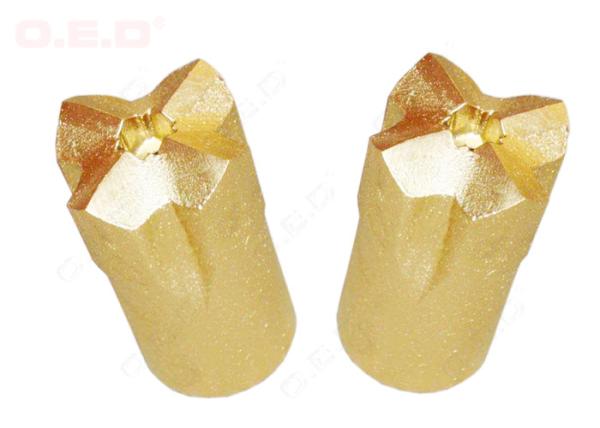

S1-32-722-67 Tapered Cross Bit Small Rock Drill Bits Hole Drilling

Tapered Cross Bit​ S1-32-722-67 specification:

Diameter: 32mm
Length: 67mm
Tapered Degree: 7°
Carbide Dimension: 12mm*8mm
Water Holes: 1 on front, 2 on side

Advantages:
1.Premium designs and steel and premium tungsten carbide(carbide code No. YK05 supplied by ZCC factory) , Offers industry-leading strength and penetration rates for more productivity.

2.Excellent straightness and hole clean quality ,Get max . drilling performance.

Tapered cross bit suitable for mining of black metal mines(such as iron mine, manganese etc), nonferrous metal mine(such as gold, silver, copper etc), marble and granite etc. Its drilling depth usually is 15m-18m in case of hardness grade F8-14.

Rock Hardness Classification

Gabbro —–
Gniess ——
Granite ——
Limestone ——
Marble ——
Quartzite ——
Sandstone ——
Slate ——
Shale——
Taconite
Mpa510152025303540
GradesoftMediumHard to Very

It is widely used in drilling holes with a depth size less than 5 meters and diameter scope in 20-45 mm by light-duty hand hold drills, like Y6, Y10, Y24, major use in natural dimensional stone quarry for small hole drilling, block’s trimming and 2nd splitting for small blocks. To match Hexagonal 22 mm and Hexagonal 12 mm’s tapered drill steel with 4/6/7/11/12 degree.
