BR COP type Carbide Drilling Tools , 45CrNiMov Dth Drill Rods
BR COP type Carbide Drilling Tools , 45CrNiMov Dth Drill Rods
BR COP type Carbide Drilling Tools , 45CrNiMov Dth Drill Rods
BR COP type Carbide Drilling Tools , 45CrNiMov Dth Drill Rods
Specifications
Brand Name :
OED or OEM
Model Number :
3 inch 4 inch 5 inches 6 inches
Certification :
ISO 9001: 2008
Place of Origin :
China
MOQ :
Small qty of amples are available.
Price :
negotiable
Payment Terms :
L/C, D/A, D/P, T/T, Western Union, MoneyGram
Supply Ability :
2000kgs per month
Delivery Time :
Standard products in one week, special tools in 45 days
Packaging Details :
plastic box/box + Cartons
Material :
45CrNiMov
Application :
Rocking drlling tools
Diameter :
89mm
Gauge Button :
8×12.7
Front Button :
6×12.7
Type :
Button Drill Bit
Description

Middle air pressure BR & COP type DTH Tools Button Bit 35° FOR CIR50 CIR110 CIR170

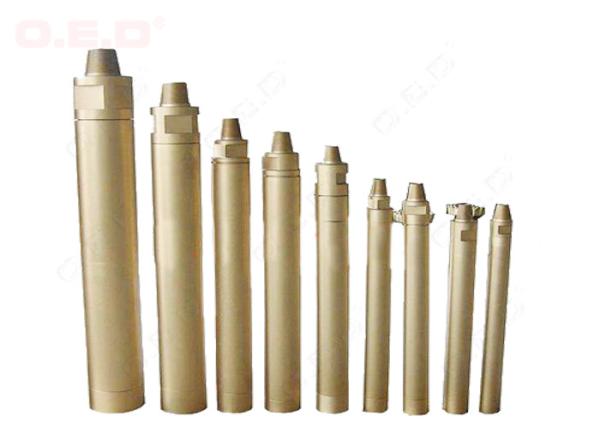

DTH Hammers And Button Bits

DTH Hammers Are Used For High Air Pressure Mining Dth Hammerblast Hole Drilling And Water Well Drilling Project.

Working With DTH Drilling Pipe And DTH Drill Bit, Mainly Applied In Mining,

Marble Quarry Or Well Drilling And Other Construction Projects.

Diameter No. of Buttons Buttons*Button Diameter (mm) Gauge Buttons Angle° Flushing Hole Weight Approx. Kg Shank
mm Inch Gauge Centre Side Centre 　 　
115 4 1/2 15 8*12.7 7*11 35° - 2 9 DHD340,DHD4,QL40,SD4,MS40,COP44
130 5 16 8*16 8*14 35° - 2 15.9 DHD350,DHD5,QL50,SD5,MS50,COP54
140 5 1/2 18 8*16 10*14 35° - 2 16.6 DHD350,DHD5,QL50,SD5,MS50,COP54
152 6 16 8*16 8*14 35° - 2 23.3 DHD360,DHD6,QL60,SD6,MS60,COP64
165 6 1/2 18 8*16 10*14 35° - 2 25.2 DHD360,DHD6,QL60,SD6,MS60,COP64
203 8 21 8*19 13*19 35° - 2 47.7 DHD380,DHD8,QL80,SD8,MS80,COP84
115 4 1/2 16 8*14 8*13 35° - 2 14 HRC,MIC,HRP
140 5 1/2 16 8*16 8*14 35° - 2 16.5 HRC,MIC,HRP
165 6 1/2 15 8*18 8*16 35° - 2 19.5 HRC,MIC,HRP

BR COP type Carbide Drilling Tools , 45CrNiMov Dth Drill RodsBR COP type Carbide Drilling Tools , 45CrNiMov Dth Drill RodsBR COP type Carbide Drilling Tools , 45CrNiMov Dth Drill RodsBR COP type Carbide Drilling Tools , 45CrNiMov Dth Drill Rods
