High Hardness Tungsten Carbide Wear Parts Rings For Oil Field
High Hardness Tungsten Carbide Wear Parts Rings For Oil Field
Specifications
Brand Name :
OED or OEM
Model Number :
Customized
Certification :
ISO 9001: 2008
Place of Origin :
China
MOQ :
Small qty of amples are available.
Price :
Raw sintered between 38-68usd/kg, special tools can be negotiable
Payment Terms :
L/C, D/A, D/P, T/T, Western Union, MoneyGram
Supply Ability :
2000kgs per month
Delivery Time :
Standard products in one week, special tools in 45 days
Packaging Details :
plastic box/box + Cartons
Material :
Tungsten carbide
ISO GRADE :
G20
Application :
Carbide Valve Rings
Type :
Oil/Gas wear parts
Hardness :
HRA 90.1
TRS :
3800
Density :
14.2
Description

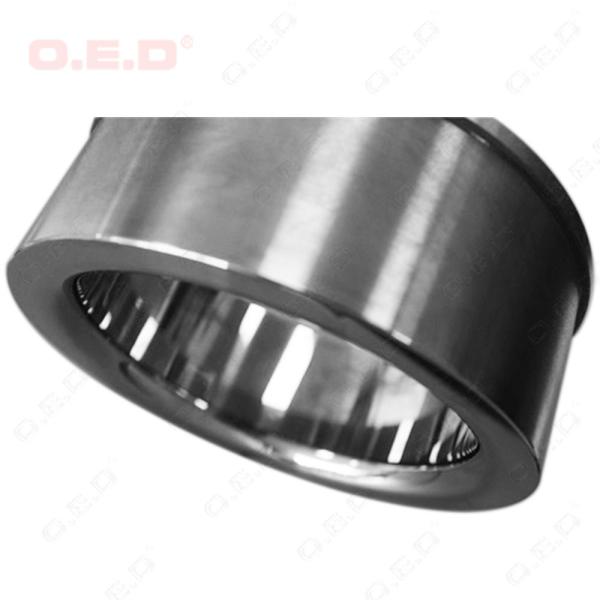

Tungsten Carbide Oil Gas Wear Parts Precision Carbide Rings In Oil Field

OED offer a wide range of custom-sized alloy rings, from blanks to precision sizes.

High Hardness Tungsten Carbide Wear Parts Rings For Oil Field

Carbide has high hardness, high wear resistance and corrosion resistance, compared to silicon carbide wear resistance is higher, so widely used in oil fields, mines, exploration and other high temperature and high pressure environment,

Carbide wear parts for oil and gas industry, wellhead assembly, such as multi­stage choke manifold, multi­stage blow down processing, products such as small bits, choke bean, core and seat, plates for throttle valve, explosion proof sleeves, orifice plate, lagging, blasting nozzle, half ball, etc.

  • Recommened carbide grades for Oil/Gas wear parts:

Cobalt Binder Grades

Grade Binder
(Wt %)		 Density
(g/cm3)		 Hardness
(HRA)		 TRS
(≥N/mm²)
YG6 6 14.8 90 1520
YG6X 6 14.9 91 1450
YG6A 6 14.9 92 1540
YG8 8 14.7 89.5 1750
YG12 12 14.2 88 1810
YG15 15 14 87 2050
YG20 20 13.5 85.5 2450
YG25 25 12.1 84 2550

Nickel Binder Grades

Grade Binder
(Wt %)		 Density
(g/cm3)		 Hardness
(HRA)		 TRS
(≥N/mm²)
YN6 6 14.7 89.5 1460
YN6X 6 14.8 90.5 1400
YN6A 6 14.8 91 1480
YN8 8 14.6 88.5 1710

High Hardness Tungsten Carbide Wear Parts Rings For Oil Field

High Hardness Tungsten Carbide Wear Parts Rings For Oil Field

High Hardness Tungsten Carbide Wear Parts Rings For Oil Field

High Hardness Tungsten Carbide Wear Parts Rings For Oil Field
