Oil Gas Tungsten Carbide Rings HRA 91.5 1600 TRS For Well Drilling
Oil Gas Tungsten Carbide Rings HRA 91.5 1600 TRS For Well Drilling
Specifications
Brand Name :
OED or OEM
Model Number :
Customized
Certification :
ISO 9001: 2008
Place of Origin :
China
MOQ :
Small qty of amples are available.
Price :
Raw sintered between 38-68usd/kg, special tools can be negotiable
Payment Terms :
L/C, D/A, D/P, T/T, Western Union, MoneyGram
Supply Ability :
2000kgs per month
Delivery Time :
Standard products in one week, special tools in 45 days
Packaging Details :
plastic box/box + Cartons
Material :
Tungsten carbide
ISO GRADE :
G20
Application :
Oil/Gas wear parts
Type :
Punching head
Hardness :
HRA 90.5-92
TRS :
1800-3800
Density :
14.5-15.2
Description

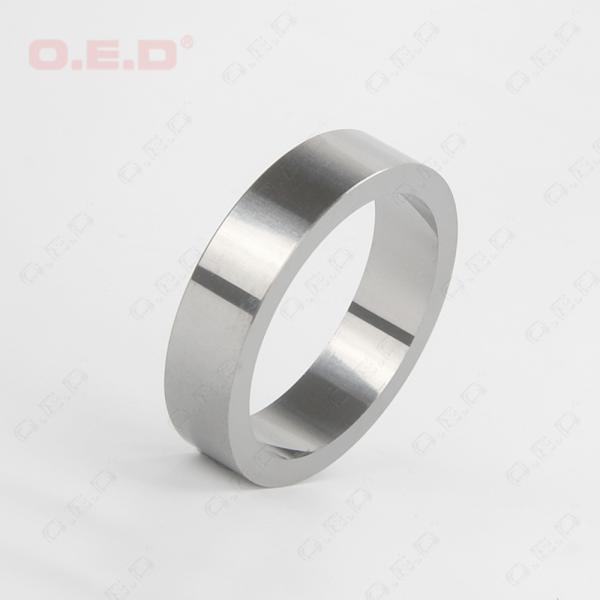

Tungsten Carbide Wear Rings For Oil Gas Wear Parts Carbide Protection Rings

Material: YG6, Co 6%

Hardness: HRA 91.5

TRS; 1600

Outer diameter 32mm

Inner Diameter 30mm

Height 8mm

Carbide wear ring/bush as protection wear parts in well drlling.

Compared with silicon carbide rings, cemented carbide rings have more stable chemical properties such as good wear resistance, high thermal conductivity, low friction coefficient, small expansion coefficient, acid resistance, alkali resistance, self-lubricity, corrosion resistance,

  • Recommened carbide grades for Oil/Gas wear parts:

Cobalt Binder Grades

Grade Binder
(Wt %)		 Density
(g/cm3)		 Hardness
(HRA)		 TRS
(≥N/mm²)
YG6 6 14.8 90 1520
YG6X 6 14.9 91 1450
YG6A 6 14.9 92 1540
YG8 8 14.7 89.5 1750
YG12 12 14.2 88 1810
YG15 15 14 87 2050
YG20 20 13.5 85.5 2450
YG25 25 12.1 84 2550

Nickel Binder Grades

Grade Binder
(Wt %)		 Density
(g/cm3)		 Hardness
(HRA)		 TRS
(≥N/mm²)
YN6 6 14.7 89.5 1460
YN6X 6 14.8 90.5 1400
YN6A 6 14.8 91 1480
YN8 8 14.6 88.5 1710

Oil Gas Tungsten Carbide Rings HRA 91.5 1600 TRS For Well Drilling

Oil Gas Tungsten Carbide Rings HRA 91.5 1600 TRS For Well Drilling

Oil Gas Tungsten Carbide Rings HRA 91.5 1600 TRS For Well Drilling

Oil Gas Tungsten Carbide Rings HRA 91.5 1600 TRS For Well Drilling
