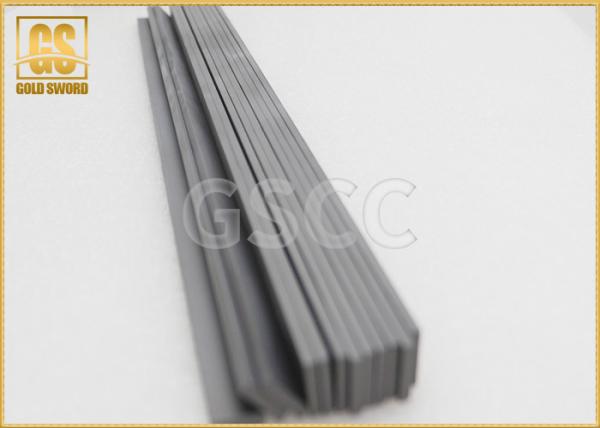

Multipurpose Tungsten Carbide Blade K30 Fine Machining 200 - 500 M / Min Speed
Multipurpose Tungsten Carbide Blade K30 Fine Machining 200 - 500 M / Min Speed
Multipurpose Tungsten Carbide Blade K30 Fine Machining 200 - 500 M / Min Speed
Multipurpose Tungsten Carbide Blade K30 Fine Machining 200 - 500 M / Min Speed
Specifications
Packaging Details :
Carton packaging 15 kg per carton
Delivery Time :
25 days
Payment Terms :
TT
Price :
Negotiable
Size :
OEM acceptable
Material :
Tungsten carbide
Surface :
Polished
Using Method :
POT And EOT
Brand Name :
Gold Sword
Place of Origin :
Zhuzhou，Hunan，China（mainland）
Description

Cemented carbide has high hardness, strength, wear resistance and corrosion resistance. It is known as “industrial teeth” and is used in the manufacture of cutting tools, cutting tools, cobalt tools and wear parts. It is widely used in military and aerospace. In the fields of machining, metallurgy, oil drilling, mining tools, electronic communication, construction, etc., with the development of downstream industries, the demand for hard alloys is increasing. And the future of high-tech weaponry equipment manufacturing, advances in cutting-edge science and technology, and the rapid development of nuclear energy will greatly increase the demand for high-tech content and high-quality stability of cemented carbide products.

Classification
Drag blades: used in non-powered tools such as UCT, KCT, VCT, SCT, C2
Particularly suitable for Foils, Paper, Thin folding carton, PVC,Plastic ,Carpet ,Light foam core etc.
Oscillating blades: used in EOT / POT oscillating tools.
Recommended materials: Folding carton, Gasket materials, Foam, Leather,Rubber, Felt,Woven , Textiles, Plastic etc.
Rotary blade: decagonal (ten-sided) blades for DRT / PRT tools.
Recommended for breathable materials such as textile, carbon fibre, glass fibre, etc.

Coating blade mark and use recommended

ISO classification Mark uses Cutting speed(m/min)
P YBC151 High wear-resistant matrix and ultra-thick composite coating for steel finishing. 180-460
YBC152 220-550
YBC251 A tough base with good edge safety and a coating of MT-TiCN for semi-finishing of steel. 160-440
YBC252 180-480
YBC351 The highly plastic matrix and the composite thick coating are suitable for roughing of steel. 130-380
M YBM151 Suitable for finishing and semi-finishing of stainless steel. 110-280
YBM251 Suitable for semi-finishing of stainless steel.
YBM351 Suitable for rough finishing of stainless steel.
K YBD052 The chemical ultra-thick coating combines with a hard matrix to provide excellent wear resistance in high-speed dry cutting of grey cast iron. 200-500
YBD102 Chemically coated grade for high speed cutting of ball cast iron. 200-480
YBD152 Good anti-flaking, suitable formedium- and high-speed turning in cast iron, and can withstand slight interrupted cutting at medium speed. 180-450
YBD252 Suitable for turning in medium and low speed wet milling and intermittent conditions of cast iron with toughness requirements. 150-380

Recommended cutting amount ( B04 )

Raw material processing method Mark Cutting speed(m/min)
P steel c YBC151 180-460
YBC152 220-500
semi finishmachining YBC251 160-440
YBC252 180-480
rough finish machining YBC351 130-380
M stainless steel

fine machining,

semi finish machining,

rough finish machining

YBM151

YBM251

 110-280
K cast iron fine machining YBD052 200-500
YBD102 200-480
semi finish machining YBD151 180-450
YBD152 190-450
rough finish machining YBD252

150-380
