HIP Sintering Tungsten Carbide Rods , Tungsten Metal Rod Wear Resistant
HIP Sintering Tungsten Carbide Rods , Tungsten Metal Rod Wear Resistant
HIP Sintering Tungsten Carbide Rods , Tungsten Metal Rod Wear Resistant
HIP Sintering Tungsten Carbide Rods , Tungsten Metal Rod Wear Resistant
HIP Sintering Tungsten Carbide Rods , Tungsten Metal Rod Wear Resistant
HIP Sintering Tungsten Carbide Rods , Tungsten Metal Rod Wear Resistant
Specifications
Brand Name :
Gold sword
Model Number :
¢1.2*100/330、¢1.6*90/100/330、¢1.8*90/100/330、¢2.1*100/330、¢2.5*100/330、¢3*100/330
Certification :
ISO9001
Place of Origin :
ZHUZHOU
Payment Terms :
L/C, D/A, D/P, D/P, T/T, T/T, Western Union
Supply Ability :
20000pcs/month
Delivery Time :
15-30 days
Packaging Details :
boxes, carton
material :
100% Virgin raw material
free sample :
available
Surface :
Polished,Blanks or polished grinding
inch size :
acceptable
Description

diameter 1.6/1.8/2.1/2.3/2.5/3.0 micro round rods for large inventory

Product description

Brand New Zhuzhou Gold Sword Service Tungsten rod. Perfect for resistance welding! Product has a ground finish and is manufactured via pressing and sintering. All are stress relieved and lot controlled. We can provide a material or ISO cert upon request. This Tungsten Copper meets international standards and is available for immediate, free shipping. It's perfect for machine shops, research and development, DIY'ers, and labs. Tungsten Copper is highly machinable and used extensively as a resistance welding electrode. WCo also has excellent electrical conductivity. Zhuzhou Gold Sword Tungsten Service is ISO certified and has been manufacturing tungsten for over 30 years!

We provide high quality tungsten carbide rods with the following advantages:

1. 100% Virgin raw material

2. Advanced production equipment/test equipment (With HIP sintering).
3. With production experience over 10 years. We can make extruded tungsten carbide rod or die pressing tungsten carbide tube.
4. Standard length 100mm and 330mm, dia. from 0.5mm to 60mm, also can produce according to customers' request.
5. Competitive price and fast delivery

Application of Cemented Carbide Rods Blank

1. For making carbide mold punches

2. For making carbide core pins

3. For making carbide dental burrs

4. For making carbide PCB drills, drills, end mills & hole drilling tools, boring bar

5. For making carbide reamers.

Products description

YL10.2 91.8HRa dia.3.0*L55mm tungsten carbide tool rod
1. Grade: YL10.2,YG10X,YG12X,YG15,YG20,YG10,YG8,YG8 etc.
2. diameter from 0.3mm~100mm,
3. length from 10mm~1000mm
4. tolerance for diameter (.-0.05~+0.05),tolerance for length (0~+0.2mm).

5. angles of tips are 30º,60º,90º

GRADE ISO CODE COBALT CONTENT DENSITY HARDNESS TRS
(%) g/cm³ HRA N/mm²
K10T K05-K10 4.5-6.0 14.95-15.05 92.7 1800
YG8 K30 8 14.8 89.5 2200
YG6 K20 6 14.95 90.5 1900
YG6X K10 6 14.95 91.5 1800
YL10.2 K30 10 14.5 91.8 2400
YG13X K30-K40 13 14.3 89.5 2600
YG15 K40 15 14 87.5 2800

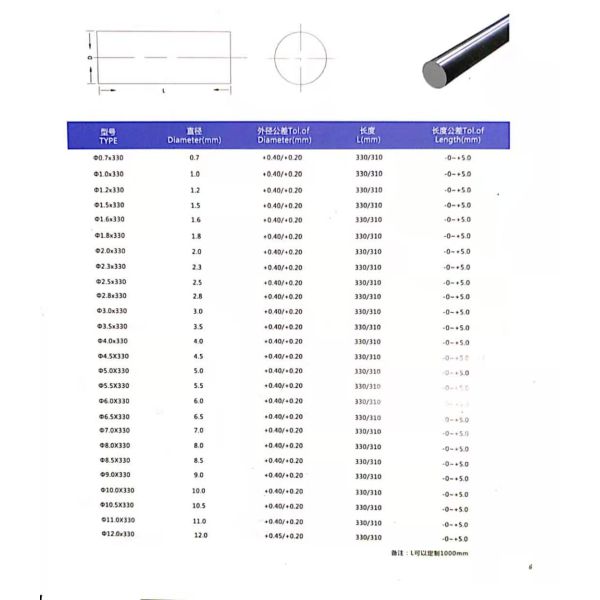

Tolerance

TYPE D Tolerance of diameter (mm) Tolerance of length (mm)
0.5~12 0.2~0.45 0~1.5
12.5~20 0.3~0.6 0~1.5
21~30 0.5~0.8 0~1.5
