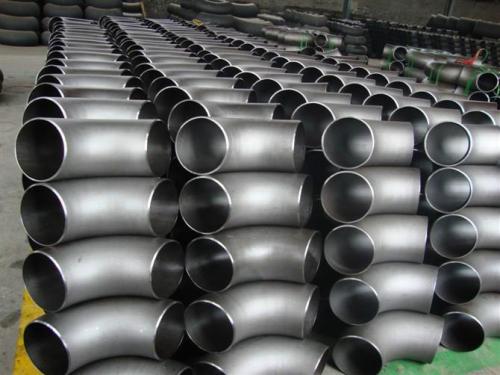

Stainless Steel Buttweld Long Radius 2 45 Degree Elbow
Stainless Steel Buttweld Long Radius 2 45 Degree Elbow
Stainless Steel Buttweld Long Radius 2 45 Degree Elbow
Stainless Steel Buttweld Long Radius 2 45 Degree Elbow
Specifications
Brand Name :
Shengtian
Model Number :
Elbow 020
Certification :
ISO9000
Place of Origin :
Mengcun County，China
MOQ :
1 piece
Price :
1-9 Pieces US $1.23/piece; >10 Pieces US $0.86/piece
Payment Terms :
L/C, D/A, D/P, T/T, Western Union, MoneyGram
Supply Ability :
700000 pieces/month
Delivery Time :
7-15 work days
Packaging Details :
Plywood Cases, Pallets, Wooden Catron
Material :
Stainless Steel
Angle :
45 Degree
Color :
Silver
Connection :
Weld
Type :
Elbow
Size :
1/8“-24”
Standard :
ASME,AISI,JIS,DIN
Shape :
Round
Description

2 Inch 45 Degree Stainless Steel Butt Weld Long Radius Pipe Fitting Elbow

　　Butt weld elbow is a steel elbow formed by hot pressing or forging. Its connection form is to directly weld the elbow and steel pipe. Butt welded elbows have beveled ends to allow for ease of welding. This bevel allows for full penetration weld in most of the cases. Butt welded elbows are mainly used for elbow with higher pressure and temperature.

　　Pipe Fitting Elbow Specification

Standards:ANSI – B 16.9
ASTM A403 – ASME SA403 – ‘Standard Specification for Wrought Austenitic Stainless Steel Piping Fittings’
API 590-605
ASME B16.9 – ‘Factory-Made Wrought Buttwelding Fittings”
ASME B16.25 – ‘Buttwelding Ends’
ASME B16.28 – ‘Wrought Steel Buttwelding Short Radius Elbows and Returns’
MSS SP-43 – ‘Wrought and Fabricated Butt-Welding Fittings for Low Pressure, Corrosion Resistant Applications’
Schedule:Sch 5 TO Sch XXS.
Size:Diameters – from 21,3 to 711 mm.
Wall Thickness – from 2 to 40 mm.
Materials:Monel, Nickel, Inconel, Hastalloy, Titanium, Tantalum, Stainless Steel, Alloy Steel, Carbon Steel, Cupro-Nickel 90/10 & 70/30
Stainless Steel ASME / ASTM SA / A403 SA / A 774 WP-S, WP-W, WP-WX, 304, 304L, 316, 316L, 304/304L,
316/316L, DIN 1.4301, DIN1.4306, DIN 1.4401, DIN 1.4404
Type:Butt Weld (BW)
Thickness:Schedule 5S, 10S, 20S, S10, S20, S30, STD, 40S, S40, S60, XS, 80S, S80, S100, S120, S140, S160, XXS and etc.
Dimension:ANSI B16.9, ANSI B16.28, MSS-SP-43 Type A, MSS-SP-43 Type B, JIS B2312, JIS B2313


　　Pipe Fitting Elbow Tolerances

For all fittingsElbows 90/45 deg180° Returns
Nominal Pipe Size(NPS)Outside Ø
at Bevel		Inside Ø
at End		Wall Thickness
t / t1		Center to End Dim. A-B-C-MCenter to Center Dim.
O		Back to Face Dim.
K		Alignment of Ends
U
1/2 a 2 1/210,8Not2771
3 a 3 1/211,6less2771
4+2 -11,6than2771
5 a 6+3 -11,687,50%2771
821,6of nominal2771
10+4 -33,2tickness2772
12 a 18+4 -33,2 31072
20 a 24+6 -54,8 31072
26 a 30+7 -54,8 3…..…..…..
32 a 48+7 -54,8 5…..…..…..


Product Show

Stainless Steel Buttweld Long Radius 2 45 Degree Elbow
