Din Flat Cast Welding Forged 15mm Carbon Steel Blind Flange
Din Flat Cast Welding Forged 15mm Carbon Steel Blind Flange
Din Flat Cast Welding Forged 15mm Carbon Steel Blind Flange
Din Flat Cast Welding Forged 15mm Carbon Steel Blind Flange
Specifications
Brand Name :
ST
Model Number :
Blind Flange 021
Certification :
ISO9000/EN10204 3.1B/BV/TUV/SGS
Place of Origin :
China
MOQ :
1 Piece
Price :
10-50 pieces US $ 3.6 / Piece;>50 pieces US $ 3.1/ Piece
Payment Terms :
L/C, D/A, D/P, T/T, Western Union, MoneyGram
Supply Ability :
50000 pieces/month
Delivery Time :
7-14 work days
Packaging Details :
Plywood Cases, Pallets,
Manufacturing Way :
Forging
Size :
15mm-6000mm
Steel Grade :
A105
Pressure :
Pn6-Pn160
Transport Package :
Plywooden Case or Pallet
Type :
Blind
Material :
Carbon Steel
Connection :
Welding
Description

　　DIN Flat Steel Cast Welding Forged Carbon Steel Blind Flange

　　Product Description:

　　A Blind Flange has no bore, and is used to close ends of piping systems. A blind flange also permits easy access to a line ones it has been sealed. The blind flange is sometimes machined to accept a pipe of the nominal Size to which reduction is being made. The reduction can be either threaded or welded.

Material Stainless Steel,Carbon Steel
Certification ISO9001:2015, TS
Standard ANSI : ANSI B16.5, ANSI B16.47, MSS SP44, ANSI B16.36, ANSI B16.48
DIN : DIN2527, DIN2566, DIN2573, DIN2576, DIN2641, DIN2642, DIN2655, DIN2656, DIN2627, DIN2628, DIN2629, DIN 2631, DIN2632, DIN2633, DIN2634, DIN2635, DIN2636, DIN2637, DIN2638, DIN2673
B.S : BS4504 , BS4504, BS1560, BS10
Size 1/2"-48"
Pressure 150#, 300#,400 #,600#,900#, 1500# & 2500 #.
Type BL
Flange surface FF, RF,MFM,TG,RJ

　　The Parameter Of Carbon Steel Blind Flange:

150#
Branch NB A D E F Gx.No. Weight kg
1/2" (15) 89 11,6 35.0 60.3 15.8 x 4 0.6
3/4" (20) 99 13.2 43.0 69.8 15.8 x 4 0.8
1" (25) 108 14.7 51.0 79.4 15.8 x 4 1.1
1 1/2" (40) 127 19.5 73.0 98.4 15.8 x 4 1.8
2" (50) 152 22.7 92.0 120.6 19.0 x 4 2.7
3" (80) 191 24.3 127.0 152.4 19.0 x 4 4.5
4" (100) 229 24.3 157.0 190.5 19.0 x 4 7.0
6" (150) 279 25.9 215.0 241.3 22.2 x 8 10.8
8" (200) 343 29.0 270.0 298.4 22.2 x 8 18.0
10" (250) 400 30.6 324.0 362.0 25.4 x 12 24.0
12" (483) 483 32.2 381.0 432 25.4 x 12 37.0
14" (350) 533 35.4 413.0 476.3 28.4 x 12 14.0
16" (400) 597 37.0 470.0 539.8 28.4 x 12 61.0
18" (450) 635 40.1 533.0 577.9 31.8 x 16 68.0
20" (500) 698 43.3 584.0 635.0 31.8 x 16 84.0
24" (600) 813 47.8 692.0 749.3 35.0 x 16 115.0
.
300#
Branch NB A D E F Gx.No. Weight kg
1/2" (15) 96 14.7 35.0 60.7 15.8 x 4 1.5
3/4" (20) 117 16.3 43.0 82.6 19.8 x 4 1.8
1" (25) 124 17.9 51.0 88.9 19.8 x 4 2.0
1 1/2" (40) 156 21.1 73.0 114.3 22.2 x 4 3.5
2" (50) 165 22.7 92.0 127.0 19.0 x 8 4.0
3" (80) 210 29.0 127.0 168.3 22.2 x 8 7.0
4" (100) 254 32.2 157.0 200.0 22.2 x 8 11.0
6" (150) 318 37.0 215.0 269.9 22.2 x 12 19.0
8" (200) 381 41.7 270.0 330.2 25.4 x 12 30.0
10" (250) 445 48.1 324.0 387.4 28,5 x 16 41.0
12" (483) 521 51.3 381.0 450.8 31.8 x 16 62.0
14" (350) 584 54.4 413.0 514.3 31.8 x 20 86.0
16" (400) 648 57.6 470.0 571.5 35.0 x 20 106.0
18" (450) 711 60.8 533.0 628.6 35.0 x 24 131.0
20" (500) 775 64.0 584.0 685.8 35.0 x 24 158.0
24" (600) 914 70.3 692.0 812.8 41.0 x 24 230.0

　　Product details:

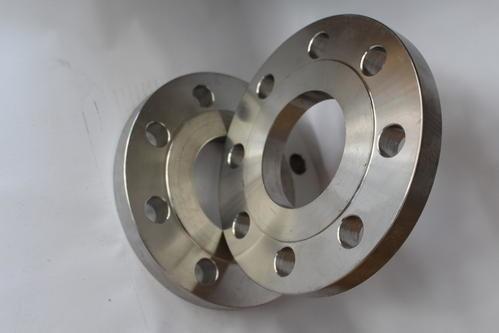

Din Flat Cast Welding Forged 15mm Carbon Steel Blind Flange

Product tags

wnrf forged flange

,

forged alloy steel rtj flange

,

din pn40 forging flange
