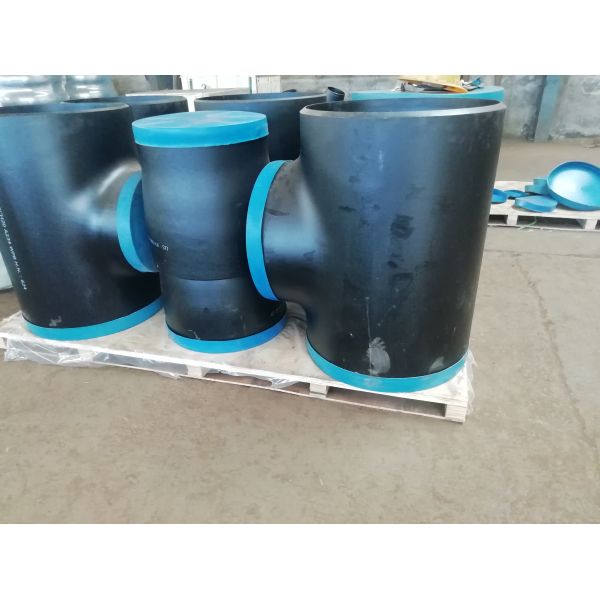

Stainless Steel SCH20 ASME B16.9 Pipe Fitting Tee
Stainless Steel SCH20 ASME B16.9 Pipe Fitting Tee
Stainless Steel SCH20 ASME B16.9 Pipe Fitting Tee
Stainless Steel SCH20 ASME B16.9 Pipe Fitting Tee
Stainless Steel SCH20 ASME B16.9 Pipe Fitting Tee
Stainless Steel SCH20 ASME B16.9 Pipe Fitting Tee
Specifications
Brand Name :
Shengtian
Model Number :
Equal
Certification :
ISO9000
Place of Origin :
Mengcun，Cangzhou,Hebei
MOQ :
1 Piece
Price :
1-100 Piece US $6.4/ Piece；>100 Pieces US $5.2/ Piece
Payment Terms :
L/C, D/A, D/P, T/T, Western Union, MoneyGram
Supply Ability :
2000 Ton/Month
Delivery Time :
10-15 work days
Packaging Details :
by Plywooden Case or Pallet
Specification :
1/2"-24"
Material :
Carbon steel
Thickness :
sch20
Surface :
Black painting
Port :
Tianjin
Lateral :
90°Tee
Description

ASME B16.9 Stainless Steel/Carbon Steel Equal /Reducing Pipe Fittings Tee

　　Hebei shengtian pipe-fitting group Co., ltd is Global Manufacturers, Stockist, and Exporters of Standard ASME B16.9 Stainless Steel Pipe Fitting tee, We Also Produce ASME/ANSI B16.9 Pipe Fitting Tee, ASTM A403 SS ASME B16.9 Pipe Fitting Tee, Monel Buttweld ANSI B16.9 Pipe Fitting Tee, ASME B16.9 Butt Weld Pipe Fitting Tee, 304 SS ASME B16.9 Pipe Fitting Tee, Alloy Steel ASME B16.9 Pipe Fitting Tee, ANSI B16.9 Buttweld Pipe Fitting Tee available in all dimensions.

Stainless Steel SCH20 ASME B16.9 Pipe Fitting Tee

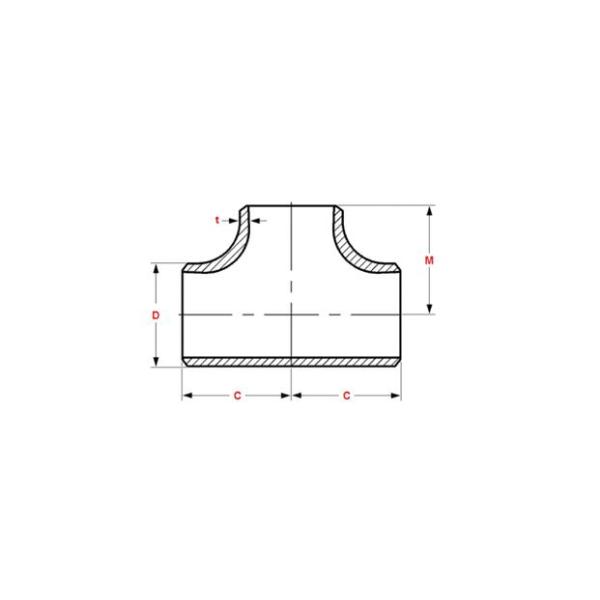

Dimensions Of ASME B16.9 Stainless Steel/Carbon Steel Equal /Reducing Pipe Fittings Tee

Nominal Pipe Size Outside diameter Center-to-End
at bevel
Run Outlet Run Outlet Run (C) Outlet (M)
1/2" 1/4" 21.3 13.7 25 25
3/8" 17.3
3/4" 3/8" 26.7 17.3 29 29
1/2" 21.3
1" 1/2" 33.4 21.3 38 38
3/4" 26.7
1 1/4" 1/2" 42.2 21.3 48 48
3/4" 26.7
1" 33.4
1 1/2" 1/2" 48.3 21.3 57 57
3/4" 26.7
1" 33.4
1 1/4" 42.2
2" 3/4" 60.3 26.7 64 44
1" 33.4 51
1 1/4" 42.2 57
1 1/2" 48.3 60
2 1/2" 1" 73 33.4 76 57
1 1/4" 42.2 64
1 1/2" 48.3 67
2" 60.3 70
3" 1 1/4" 88.9 42.2 86 70
1 1/2" 48.3 73
2" 60.3 76
2 1/2" 73 83
3 1/2" 1 1/2" 101.6 48.3 95 79
2" 60.3 83
2 1/2" 73 89
3" 88.9 92
4" 1 1/2" 114.3 48.3 105 86
2" 60.3 89
2 1/2" 73 95
3" 88.9 98
3 1/2" 101.6 102
5" 2" 141.3 60.3 124 105
2 1/2" 73 108
3" 88.9 111
3 1/2" 101.6 114
4" 114.3 117
6" 2 1/2" 168.3 73 143 121
3" 88.9 124
3 1/2" 101.6 127
4" 114.3 130
5 141.3 137
8" 3 1/2" 219.1 101.6 178 152
4" 114.3 156
5" 141.3 162
6" 168.3 168
10" 4" 273 114.3 216 184
5" 141.3 191
6" 168.3 194
8" 219.1 203
12" 5" 323.8 141.3 254 216
6" 168.3 219
8" 219.1 229
10" 273 241
14" 6" 355.6 168.3 279 238
8" 219.1 248
10" 273 257
12" 323.8 270
16" 6" 406.4 168.3 305 264
8" 219.1 273
10" 273 283
12" 323.8 295
14" 355.6 305
18" 8" 457 219.1 343 298
10" 273 308
12" 323.8 321
14" 355.6 330
16" 406.4 330
20" 8" 508 219.1 381 324
10" 273 333
12" 323.8 346
14" 355.6 356
16" 406.4 356
18" 457 368
22" 10" 559 273 419 359
12" 323.8 371
14" 355.6 381
16" 406.4 381
18" 457 394
20" 508 406
24" 10" 610 273 432 384
12" 323.8 397
14" 355.6 406
16" 406.4 406
18" 457 419
20" 508 432
22" 559 432
