Carbon Steel SCH 40 ASME B16.5 Pipe Fitting Elbow
Carbon Steel SCH 40 ASME B16.5 Pipe Fitting Elbow
Carbon Steel SCH 40 ASME B16.5 Pipe Fitting Elbow
Carbon Steel SCH 40 ASME B16.5 Pipe Fitting Elbow
Carbon Steel SCH 40 ASME B16.5 Pipe Fitting Elbow
Carbon Steel SCH 40 ASME B16.5 Pipe Fitting Elbow
Specifications
Brand Name :
Shengtian
Model Number :
Sch40
Certification :
ISO/BV/TUV/SGS
Place of Origin :
China
MOQ :
10 piece
Price :
$1.50-$6.00/ Piece
Payment Terms :
L/C, D/A, D/P, T/T, Western Union, MoneyGram
Supply Ability :
500000/PC per month
Delivery Time :
10-15 work days
Packaging Details :
wooden case, pallet
Color :
Black
Standards :
ASME B16.5
Technics :
Forged
Degree :
30/45/90/180
Material :
Carbon steel
Surface treatment :
Transparent oil, rust-proof black oil or hot galvanized
Description

ASTM A234 WPB Sch 40 90 Deg Short Radius Carbon Steel Pipe Fitting Elbow

　　Manufacturer of ASTM A234 WPB Sch 40 90 Deg Short Radius Carbon Steel Pipe Fitting Elbow in China, Find ASTM A234 WPB Sch 40 90 Deg Short Radius Carbon Steel Pipe Fitting Elbow Price List China.

　　ASTM A234 WPB Sch 40 90 Deg Short Radius Carbon Steel Pipe Fitting Elbow is one of the most used forms of pipe fittings. An elbow is a connector shaped like an elbow and allows for directional transformation in fluid flow. ASTM A234 WPB Sch 40 90 Deg Short Radius Carbon Steel Pipe Fitting Elbow is produced and supplied in the butt welded form. ASTM A234 WPB Sch 40 90 Deg Short Radius Carbon Steel Pipe Fitting Elbow usually comes in either of three angles; 22.5, 45 or 90 degrees. ASTM A234 WPB Sch 40 90 Deg Short Radius Carbon Steel Pipe Fitting Elbow is a standardization that conforms to schedule 40. ASTM A234 WPB Sch 40 90 Deg Short Radius Carbon Steel Pipe Fitting Elbow could also be threaded or machined; sometimes it is also socketed.

Product Description

Type Pipe Fitting Elbow
Size Seamless Elbow:1/2"~24" DN15~DN600
Welded Elbow: 1/2"~100" DN15~DN2500
Wall thickness sch10, sch20, sch30, std, sch40, sch60, xs, sch80, sch100,
sch120, sch140, sch160, xxs, std,sch5s, sch20s, sch40s, sch80s
Standards ANSI B16.9, ASME,DIN2506, JIS, BS,GOST
Material Carbon steel: ASTM/ASME A234 WPB,WPC, ST37-2,ST54
Alloy steel: ASTM/ASME A234 WP9-WP12-WP11-WP22-WP5-WP91
Stainless steel: ASTM/ASME A403 WP 304-304L, WP 316-316L,WP 321,201
Surface treatment Transparent oil, rust-proof black oil or hot galvanized
Packing wooden case, pallet or as customers' requirement
Applications Petroleum, chemical, power, gas, metallurgy, shipbuilding, construction, etc
Min order 10 piece
Delivery time 7 after receipt of advanced payment
Certification ASME, ISO9001:2000
Delivery Term FOB(30% down payment in advance, the balance before shipment)
CIF or C&F(30% in advance , the balance against with the copy of B/L)

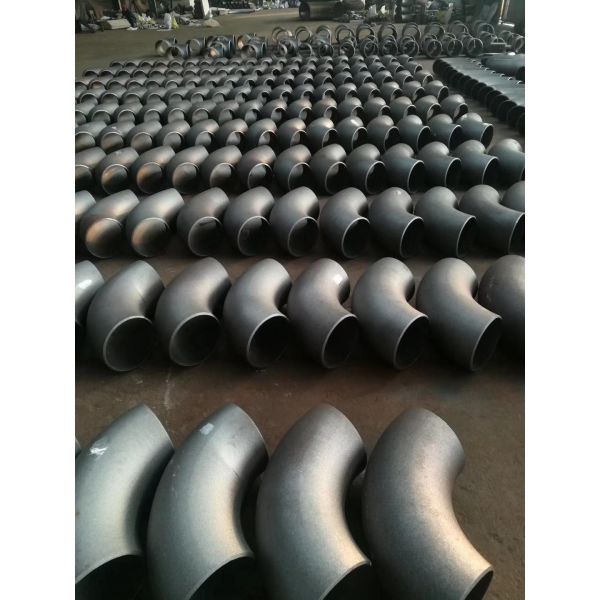

Product picture

Carbon Steel SCH 40 ASME B16.5 Pipe Fitting Elbow

Carbon Steel SCH 40 ASME B16.5 Pipe Fitting Elbow

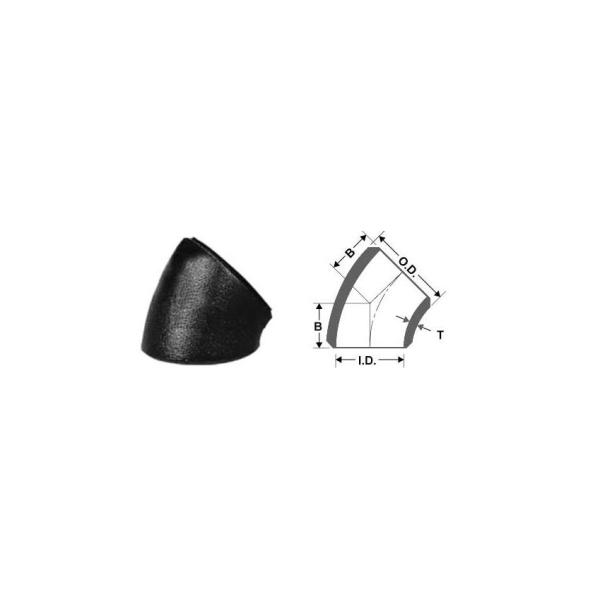

ASTM A234 Wpb Elbow Dimensions

Carbon Steel SCH 40 ASME B16.5 Pipe Fitting Elbow

Nominal Pipe Size Outside Diameter Inside Diameter Wall Thickness Center To End Pipe Schedule Weight Pounds
1/2 0.84 0.622 0.109 0.62 40 0.09
3/4 1.05 0.824 0.113 0.75 40 0.1
1 1.32 1.05 0.133 0.88 40 0.22
1 1/4 1.66 1.38 0.14 1 40 0.33
1 1/2 1.9 1.61 0.145 1.12 40 0.43
2 2.38 2.07 0.154 1.38 40 0.85
2 1/2 2.88 2.47 0.203 1.75 40 1.7
3 3.5 3.07 0.216 2 40 2.5
3 1/2 4 3.55 0.226 2.25 40 3.4
4 4.5 4.03 0.237 2.5 40 4.5
5 5.56 5.05 0.258 3.12 40 7.5
6 6.62 6.06 0.28 3.75 40 11.7
8 8.62 7.98 0.322 5 40 23.3
10 10.75 10.02 0.365 6.25 40 40.9
12 12.75 12 0.375 7.5 / 61.4
14 14 13.25 0.375 8.75 30 78.1
16 16 15.25 0.375 10 30 101
18 18 17.25 0.375 11.25 / 128
20 20 19.25 0.375 12.5 20 159
24 24 23.25 0.375 15 20 231
30 30 29.25 0.375 18.5 / 358
36 36 35.25 0.375 22.25 / 518
42 42 41.25 0.375 26 / 707
48 48 47.25 0.375 29.88 / 1,000
