Oil Construction JIS G3445 0.4μm Seamless Steel Pipe
Oil Construction JIS G3445 0.4μm Seamless Steel Pipe
Oil Construction JIS G3445 0.4μm Seamless Steel Pipe
Oil Construction JIS G3445 0.4μm Seamless Steel Pipe
Specifications
Brand Name :
Shengtian
Model Number :
Seamless steel pipe 006
Certification :
API5L ISO 9001:2008 TUV SGS BV etc
Place of Origin :
China
MOQ :
1 Ton
Price :
1-5 Tons US $526/ Ton；>5 Tons US $473/ Ton
Payment Terms :
L/C, D/A, D/P, T/T, Western Union, MoneyGram
Supply Ability :
2000 Tons/Month
Delivery Time :
10-15 work days
Packaging Details :
Bundles or in Bulk. Bundled Pipes with Two Slings
Thickness :
SCH5S, SCH10S, SCH20S,SCH20, SCH30
Surface Treatment :
Galvanized, Natural, Anticorrosive 3PE coated,polyurethane foam Insulation
Outside Diameter :
21.3mm-609.6mm
Technic :
Hot piercing processing technic
Application :
Oil pipe line, Gas pipe, Fluid pipe etc
Port :
Tianjin
Description

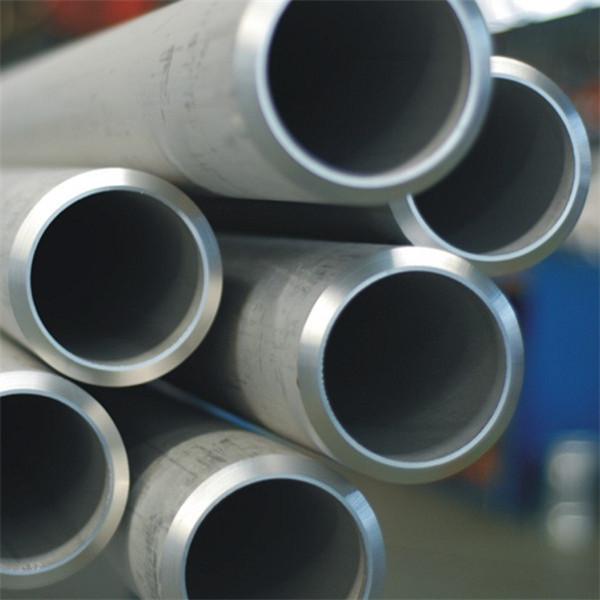

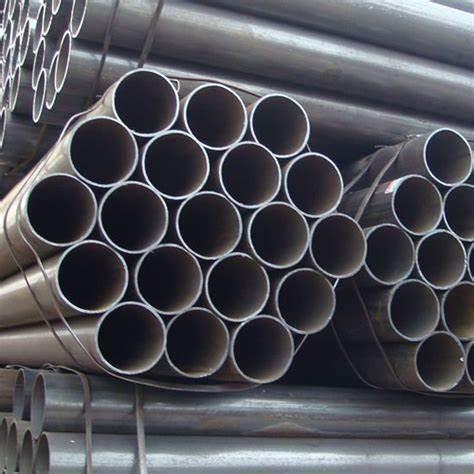

JIS G3445 Stkm13A Cold Rolled Precision Seamless Steel Pipe For Oil Gas Construction

　　Seamless steel pipes are used in a range of applications in all different industries, including petrochemical, environmental, energy, fluid water, building and more. We can help you with the right products for your unique application.

Standard & Material Carbon Steel ASTM A519 Standard MT1010, MT1020, 1008, 1010, 1018, 1020, 1025, 1030, 1045, 1518
JIS G3445 Standard STKM11A STKM12A STKM12B STKM12C STKM13A STKM13B STKM13C STKM14A STKM14B STKM14C STKM15A STKM15C STKM16A STKM16C STKM17A STKM17C STKM18A STKM18B STKM18C STKM19A STKM19C STKM20A
JIS G3473 Standard STC370, STC440, STC510A, STC510, STC540, STC590A, STC590B
DIN 2391 Standard St 35, St45, St52
EN 10297-1 Standard E235, E275, E315, E355, E470
EN 10305-1 Standard E215, E235, E355
EN 10305-4 Standard E215, E235, E355
BS 6323-3 Standard HFS 3, HFS 4, HFS 5, HFS 8
NF A49-311 TU 37-b, TU 52-b, TU 56-b, TU XC35
Alloy Steel ASTM A519 Standard 1345, 3140, 4130, 4135, 4140, 4150, 4320, 4340, 5120, 5130
JIS G3429 Standard STH11, 12 STH21, 122 STH31
JIS G3441 Standard SCR420TK, SCM415TK, SCM418TK, SCM420TK, SCM430TK, SCM440TK
Stainless Steel ASTM A511 Standard MT304, MT304L, MT310S, MT316, MT316L, MT317, MT321, MT347, MT403, MT410, MT431
ISO Standard NACE MR-0175


Size		 Size Range Tolerance
OD 6-325mm -0.035 -- +0.045mm
ID 2-250mm ±0.035mm
WT 1-32mm depends on sizes
Length random or fixed length +0-3.5mm
Straightness 0.15:1000, 0.4:1000, 0.5:1000 1:1000 or customized
Surface Roughness Ra 0.02-0.4μm

Chemical Composition

Steel Grade C(%) Si(%) Mn(%) P(%) S(%) Nb/V(%)
STKM11A ≤0.12 ≤0.35 ≤0.60 ≤0.040 ≤0.040 -
STKM12A ≤0.20 ≤0.35 ≤0.60 ≤0.040 ≤0.040 -
STKM12B ≤0.20 ≤0.35 ≤0.60 ≤0.040 ≤0.040 -
STKM12C ≤0.20 ≤0.35 ≤0.60 ≤0.040 ≤0.040 -
STKM13A ≤0.25 ≤0.35 0.30~0.90 ≤0.040 ≤0.040 -
STKM13B ≤0.25 ≤0.35 0.30~0.90 ≤0.040 ≤0.040 -
STKM13C ≤0.25 ≤0.35 0.30~0.90 ≤0.040 ≤0.040 -
STKM14A ≤0.30 ≤0.35 0.30~1.00 ≤0.040 ≤0.040 -
STKM14B ≤0.30 ≤0.35 0.30~1.00 ≤0.040 ≤0.040 -
STKM14C ≤0.30 ≤0.35 0.30~1.00 ≤0.040 ≤0.040 -
STKM15A 0.25~0.35 ≤0.35 0.30~1.00 ≤0.040 ≤0.040 -
STKM15C 0.25~0.35 ≤0.35 0.30~1.00 ≤0.040 ≤0.040 -

Mechanical Properties

Steel Grade Tensile Strength(N/mm²) Yield Strength(N/mm²)
STKM11A ≥290 -
STKM12A ≥340 ≥175
STKM12B ≥390 ≥275
STKM12C ≥470 ≥355
STKM13A ≥370 ≥215
STKM13B ≥440 ≥305
STKM13C ≥510 ≥380
STKM14A ≥410 ≥245
STKM14B ≥500 ≥355
STKM14C ≥550 ≥410
STKM15A ≥470 ≥275
STKM15C ≥580 ≥430

Oil Construction JIS G3445 0.4μm Seamless Steel Pipe
