1200NB API 605 Threaded Pipe Flange For Water Line
1200NB API 605 Threaded Pipe Flange For Water Line
1200NB API 605 Threaded Pipe Flange For Water Line
1200NB API 605 Threaded Pipe Flange For Water Line
Specifications
Brand Name :
Shengtian
Model Number :
Threaded Pipe Flange002
Certification :
ISO9000
Place of Origin :
China
MOQ :
1 piece
Price :
1-50 Pieces US $8.9/ Piece；>50 Pieces US $7.6/ Piece
Payment Terms :
L/C, D/A, D/P, T/T, Western Union, MoneyGram
Supply Ability :
500ton/Year
Delivery Time :
7-15 work days
Packaging Details :
in Wooden Cases or Customers Requirements
Material :
Stainless Steel
Manufacturing Way :
Forging
Types of Threaded Flange :
Forged / Threaded / Screwed / Plate
Standard :
ANSI, DIN, GB, JIS, GOST
Size :
1/2"-24"
Description

304 316 316L Stainless Steel Threaded Pipe Flange For Water Line

　　The 304 316 316L Stainless Steel Threaded Pipe Flange and Stainless Steel Threaded Pipe Flange supplied in various spheres of the industries ranging from basic industries such as, Textile, Paper, Sugar, Dairy, Engineering to more complex such as Oil & Gas, Power Generation, Chemical & Fertilizers , Petrochemical, and Nuclear Industries. We provide a complete range of 304 316 316L Stainless Steel Threaded Pipe Flange, Stainless Steel Threaded Pipe Flange, Threaded Pipe Flange in the world.

Specifications of 304 316 316L Stainless Steel Threaded Pipe Flange For Water Line

Threaded flange Standards

ANSI/ASME B16.5, B16.47 Series A & B, B16.48, BS4504, BS 10, EN-1092, DIN, ANSI Flanges, ASME Flanges, BS Flanges, DIN Flanges, EN Flanges, GOST Flange, ASME/ANSI B16.5/16.36/16.47A/16.47B, MSS S44, ISO70051, JISB2220, BS1560-3.1,

API7S-15, API7S-43, API605, EN1092

Threaded flange Size

1/2″ (15 NB) to 48″ (1200NB) DN10~DN5000
Application Petroleum industry, Refinery Company, fertilizer industry, power station, shipbuilding

Threaded flange Pressure

Class 150 LBS, 300 LBS, 600 LBS, 900 LBS, 1500 LBS, 2500 LBS

Types Of Threaded flange

Forged / Threaded / Screwed / Plate

Port

Tianjin

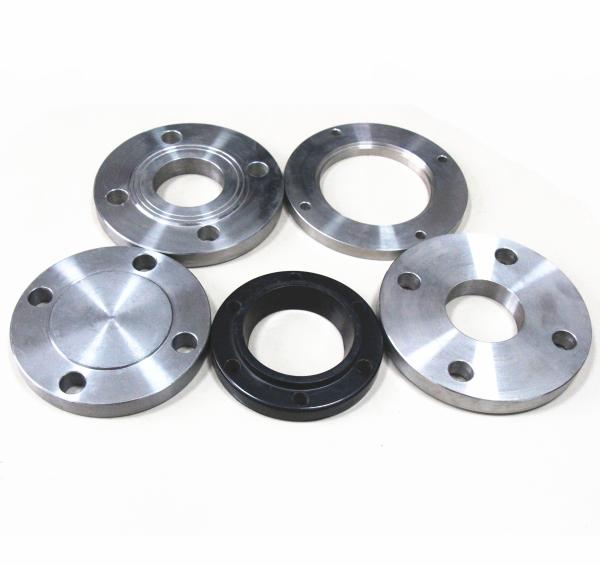

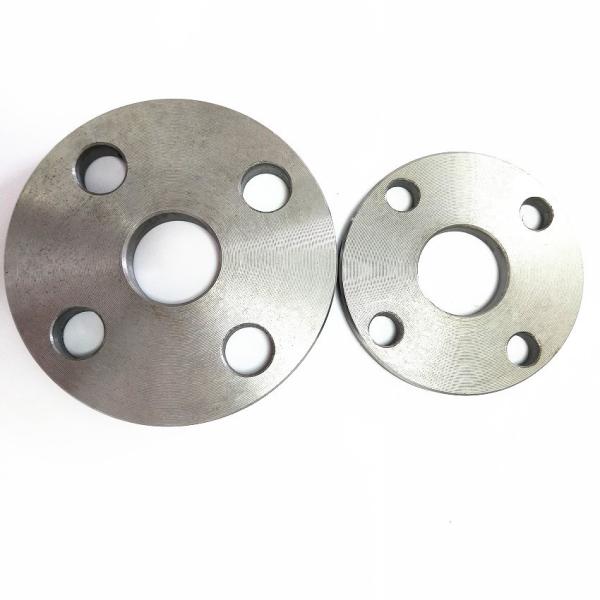

304 316 316L Stainless Steel Threaded Pipe Flange For Water Line Picture

1200NB API 605 Threaded Pipe Flange For Water Line

Dimensions Of 304 316 316L Stainless Steel Threaded Pipe Flange

Pipe Size Outside Diameter of Flange Diameter of Raised Face Thickness of Flange Diameter of Hub at Base Length of Hub Minimum Thread Length Number of Bolt Holes Approx. Weight
(NPS) A B C J L N (Lbs.)
1/2 3 1/2 1 3/8 7/16 1 3/16 5/8 5/8 4 2
3/4 3 7/8 1 11/16 1/2 1 1/2 5/8 5/8 4 2
1 4 1/4 2 9/16 1 15/16 11/16 11/16 4 2
1 1/4 4 5/8 2 1/2 5/8 2 5/16 13/16 13/16 4 3
1 1/2 5 2 7/8 11/16 2 9/16 7/8 7/8 4 3
2 6 3 5/8 3/4 3 7/16 1 1 4 5
2 1/2 7 4 1/8 7/8 3 9/16 1 1/8 1 1/8 4 7
3 7 1/2 5 15/16 4 1/4 1 3/16 1 3/16 4 8
3 1/2 8 1/2 5 1/2 15/16 4 13/16 1 1/4 1 1/4 8 11
4 9 6 3/16 15/16 5 5/16 1 5/16 1 5/16 8 13
5 10 7 5/16 15/16 6 7/16 1 7/16 1 7/16 8 15
6 11 8 1/2 1 7 9/16 1 9/16 1 9/16 8 19
8 13 1/2 10 5/8 1 1/8 9 11/16 1 3/4 1 3/4 8 30
10 16 12 3/4 1 3/16 12 1 15/16 1 15/16 12 43
12 19 15 1 1/4 14 3/8 2 3/16 2 3/16 12 64
14 21 16 1/4 1 3/8 15 3/4 2 1/4 2 1/4 12 85
16 23 1/2 18 1/2 1 7/16 18 2 1/2 2 1/2 16 93
18 25 21 1 9/16 19 7/8 2 11/16 2 11/16 16 120
20 27 1/2 23 1 11/16 22 2 7/8 2 7/8 20 155
22 29 1/2 25 1/4 1 13/16 24 3 1/8 3 1/8 20 159
24 32 27 1/4 1 7/8 26 1/8 3 1/4 3 1/4 20 210
