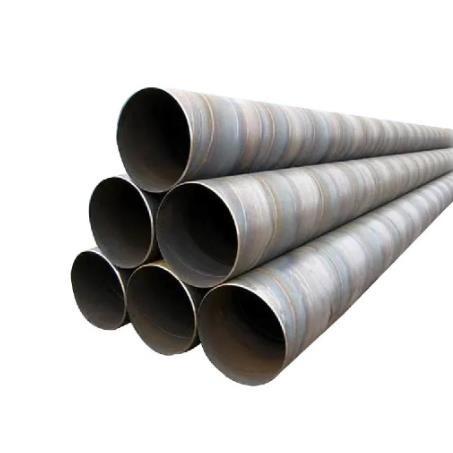

Api Spec 5ct J55 316 Stainless Steel Seamless Pipe Astm A500 Spiral For Casing
Api Spec 5ct J55 316 Stainless Steel Seamless Pipe Astm A500 Spiral For Casing
Specifications
Brand Name :
ST
Model Number :
pipe fitting 034
Certification :
SGS/ISO9000/EN10204 3.1B/TUV
Place of Origin :
China
MOQ :
1 Piece
Price :
1-100 pieces US $0.53/ Piece;>100 pieces US $0.41/ Piece
Payment Terms :
L/C, D/A, D/P, T/T, Western Union, MoneyGram
Supply Ability :
80000 pieces/month
Delivery Time :
7-15 work days
Packaging Details :
in Wooden Cases or Customers Requirements
Type :
Seamless
Surface Treatment :
Black
Section Shape :
Round
Material :
Carbon Steel
Trademark :
ST
Transport Package :
in Bundles, Wooden Box
Origin :
China
Description

API Spec 5CT J55 Spiral Stainless Seamless Steel Pipe for Casing

Product Description

NOMINAL PIPE SIZE

OD

(mm)

NOMINAL WALL THICKNESS
DN NB(inch) ASME SCH10 SCH20 SCH30 STD SCH40 SCH60 XS SCH80 SCH100 SCH120 SCH140 SCH160 XXS
15 1/2" 21.3 2.11 2.41 2.77 2.77 3.73 3.73 4.78 7.47
20 3/4" 26.7 2.11 2.41 2.87 2.87 3.91 3.91 5.56 7.82
25 1" 33.4 2.77 2.9 3.38 3.38 4.55 4.55 6.35 9.09
32 1.1/4" 42.2 2.77 2.97 3.56 3.56 4.85 4.85 6.35 9.7
40 1.1/2" 48.3 2.77 3.18 3.68 3.68 5.08 5.08 7.14 10.15
50 2" 60.3 2.77 3.18 3.91 3.91 5.54 5.54 8.74 11.07
65 2.1/2" 73 3.05 4.78 5.16 5.16 7.01 7.01 9.53 14.02
80 3" 88.9 3.05 4.78 5.49 5.49 7.62 7.62 11.13 15.25
90 3.1/2" 101.6 3.05 4.78 5.74 5.74 8.08 8.08
100 4" 114.3 3.05 4.78 6.02 6.02 8.56 8.56 11.13 13.49 17.12
125 5" 141.3 3.4 6.55 6.55 9.53 9.53 12.7 15.88 19.05
150 6" 168.3 3.4 7.11 7.11 10.97 10.97 14.27 18.26 21.95
200 8" 219.1 3.76 6.35 7.04 8.18 8.18 10.31 12.7 12.7 15.09 18.26 20.62 23.01 22.23
250 10" 273 4.19 6.35 7.8 9.27 9.27 12.7 12.7 15.09 18.26 21.44 25.4 28.58 25.4
300 12" 323.8 4.57 6.35 8.38 9.53 10.31 14.27 12.7 17.48 21.44 25.4 28.58 33.32 25.4
350 14" 355.6 6.35 7.92 9.53 9.53 11.13 15.09 12.7 19.05 23.83 27.79 31.75 35.71
400 16" 406.4 6.35 7.92 9.53 9.53 12.7 16.66 12.7 21.44 26.19 30.96 36.53 40.19
450 18" 457.2 6.35 7.92 11.13 9.53 14.27 19.05 12.7 23.83 39.36 34.93 39.67 45.24
500 20" 508 6.35 9.53 12.7 9.53 15.09 20.62 12.7 26.19 32.54 38.1 44.45 50.01
550 22" 558.8 6.35 9.53 12.7 9.53 22.23 12.7 28.58 34.93 41.28 47.63 53.98
600 24" 609.6 6.35 9.53 14.27 9.53 17.48 24.61 12.7 30.96 38.89 46.02 52.37 59.54
650 26" 660.4 7.92 12.7 9.53 12.7
700 28" 711.2 7.92 12.7 15.88 9.53 12.7
750 30" 762 7.92 12.7 15.88 9.53 12.7
800 32" 812.8 7.92 12.7 15.88 9.53 17.48 12.7
850 34" 863.6 7.92 12.7 15.88 9.53 17.48 12.7
900 36" 914.4 7.92 12.7 15.88 9.53 19.05 12.7

Commodity welded steel pipe
Outer Diamater 1/2"-24"(20mm-610mm)
Wall Thickness 0.4-25mm
Length 1-12m or as your requirement,Ready to ship pipes are 6m long
Steel Material Q195 Q235 Q345 St37 St52 A53
Standard ASTM A53 ASTM A500; GB/T3091 GB/T3094;DIN EN10025; DIN EN10217-2005; BS EN10217; BS EN10219; BS EN10025; JIS G3466
Type Welded pipe
Pipe ends 1)Plain
2)Beveled
3)Threaded with coupling and plastic cap
End protector 1) Plastic cap
2) Iron protector
3) as request
Surface Treatment 1) Bared
2) Black Painted
3) Galvanized
4) Oiled
Deep processing oiled, painted, galvanized, powder coating, shrink head, pressure groove, welding head, punching, threaded with coupling and plastic cap
Inspection With Hydraulic Testing, Eddy Current, Infrared Test
Application Construction,machine structure pipe, Agriculture equipment pipe,Water and gas pipe, Greenhouse pipe, Scaffolding pipe, Building material tube, Furniture tube, Low pressure fluid tube, Oil pipe, etc.
Shipment
  1. FCL
  2. LFL
  3. By bulk
Loading port Xingang,China
Package
  1. Packed in bundles with 6-8 pcs steel strips
  2. Packed in bundles with 6-8 pcs steel strips, and wrapped with waterproof cloth
  3. Packed as your request
Payment terms TT or LC at sight

Company introduction

　Established in 1989, Hebei Shengtian Pipe-Fitting Group Co., Ltd. located in Mengcun County Hebei Province China, covering a land area of 100,000 square meters, with a workshop of 25,000 square meters and registered capital of 110 million RMB. Our company has a strong staff team. There are over 360 employees, including over 30 professionals and technicians.

　　We are capable of manufacturing various pipe fittings. Our main products scope: steel elbow, tees, bends, reducers, caps, forged flanges and sockets. We have been in this line for over 20 years. Our products are exported to many countries and regions, such as Southeast Asia, the Middle East, Europe and America etc. Our pipes and pipe fittings enjoy a good reputation in domestic and foreign markets. Every year, hundreds of foreign visitors and innumerable domestic visitors come to our company for business cooperation.

　　We have first-class inspection devices, perfect detecting means and well-trained specialists. And we stick to ISO9000:2000 quality system and efficiently control procedure in production. We have confidence that we can supply the best quality products. We would like to take responsibility for any quality uncertainty. Even so, our price is competitive. Besides, we can provide the best service to you.

　　In order to avoid the policy of the anti-dumping duties imposed on pipe & fittings from the Europe, United States and other countries, We can re-export through other countries like Malaysia, etc, to circumvent the anti-dumping duties, which could make you to win more competitive price.

Steel pipes processing and fabrication

Api Spec 5ct J55 316 Stainless Steel Seamless Pipe Astm A500 Spiral For Casing


Api Spec 5ct J55 316 Stainless Steel Seamless Pipe Astm A500 Spiral For Casing

Packing and Shipping

Shipping--- by container (Apply to a few or common quantity) or in bulk ( Apply to huge quantity)
Container sizes:
20ft GP:5898mm(Length)x2352mm(Width)x2393mm(High)
40ft GP:12032mm(Length)x2352mm(Width)x2393mm(High)
40ft HC:12032mm(Lengh)x2352mm(Width)x2698mm(High)
For 20feet container load 25tons-28tons pipes whose max. length is 5.8m.
For40feet container load 25tons-26tons pipes whose max. length is 12m.

Api Spec 5ct J55 316 Stainless Steel Seamless Pipe Astm A500 Spiral For Casing

FAQ
Q: Do you provide samples ?How can I get a sample to check your quality? is it free or extra ?
A: After price confirmation, you can require for samples to check our quality counter display. If you need the samples, we won't charge for the sample cost .But the freight cost is on yours, when you place an order, we will decrease the freight cost for you.

Q: What's the delivery time?
A: 7-15days after receiving T/T prepayment or LC date.

Q: How is the quality of your products?
A: Our products are manufactured strictly according to national and international standard, and we take a test on every coil
before delivered out. If you want see our quality certifications and all kinds of testing report, please just ask us for it.You
are also welcomed to check our factory yourself.
