Sanitary Stainless Steel Tube Pipe 304 ASTM A312 A270 3A 4 Inch 6 Inch 8 Inch
Sanitary Stainless Steel Tube Pipe 304 ASTM A312 A270 3A 4 Inch 6 Inch 8 Inch
Sanitary Stainless Steel Tube Pipe 304 ASTM A312 A270 3A 4 Inch 6 Inch 8 Inch
Sanitary Stainless Steel Tube Pipe 304 ASTM A312 A270 3A 4 Inch 6 Inch 8 Inch
Sanitary Stainless Steel Tube Pipe 304 ASTM A312 A270 3A 4 Inch 6 Inch 8 Inch
Sanitary Stainless Steel Tube Pipe 304 ASTM A312 A270 3A 4 Inch 6 Inch 8 Inch
Sanitary Stainless Steel Tube Pipe 304 ASTM A312 A270 3A 4 Inch 6 Inch 8 Inch
Sanitary Stainless Steel Tube Pipe 304 ASTM A312 A270 3A 4 Inch 6 Inch 8 Inch
Specifications
Brand Name :
Tisco BAOSTEEL ANSTEEL
Model Number :
SUS304
Certification :
CE,SGS,ISO9001 etc
Place of Origin :
China
MOQ :
1 ton
Price :
$2,000.00 - $2,500.00/ ton
Payment Terms :
L/C, D/A, D/P, T/T, Western Union, MoneyGram
Delivery Time :
5-8 work days
Packaging Details :
1.Use plastic bag as first layer of packing; 2.Use bubble sheet as second layer of packing; 3.Use PE sheet as third layer of packing; 4.Use carton for accessories; 5.If the poles are ship in the LCL container,it will need the wooden case to protect them fr
Material :
300 Series
Surface :
Mirror/2B/Polished or as required
Outer Diameter :
15.88mm-120mm
Thickness :
0.8mm-20 mm
Technique :
Cold Rolled Hot Rolled
Production :
ASTM, DIN, JIS, GB, EN, ASME
Processing Service :
Bending, Welding, Cutting
Tolerance :
±3%
Description

Cold Roller ASTM A312 A270 3A 4 Inch 6 Inch 8 Inch 304 Sanitary Welded Seamless Tube Stainless Steel Pipe

Sanitary Stainless Steel Tube Pipe 304 ASTM A312 A270 3A 4 Inch 6 Inch 8 Inch

Stainless steel 304 and stainless steel 304L are also known as 1.4301 and 1.4307 respectively. Type 304 is the most versatile and widely used stainless steel. It is still sometimes referred to by its old name 18/8 which is derived from the nominal composition of type 304 being 18% chromium and 8% nickel.

Sanitary Stainless Steel Tube Pipe 304 ASTM A312 A270 3A 4 Inch 6 Inch 8 Inch

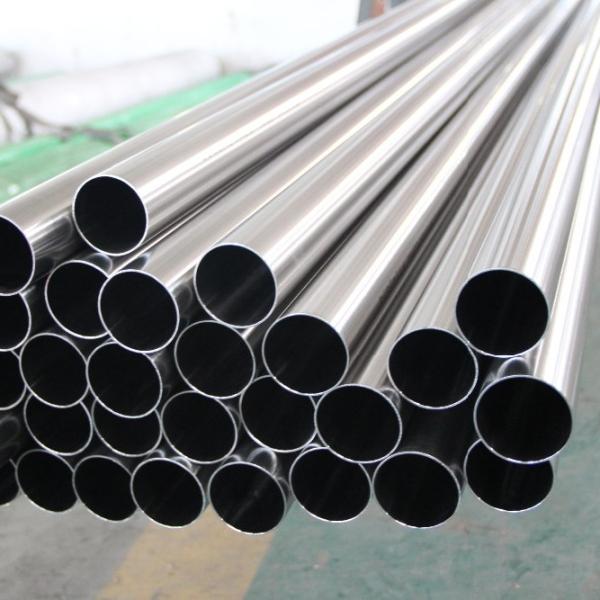

Stainless Steel Pipe
Product Standards
Food Grade Sanitary Tube: JIS G3447, KS D 3585, ASTM A270, EN 10357(DIN 11850), AS 1528.1, ISO 2037(NF A49-249)
Heat exchanger tube: ASTM A249 / ASME SA249, GB / T 24593-2009, HG 20537.2
Industrial pipe: ASTM A312, EN 10217-7, GB / T 12771-2008, HG 20537.3
Drinking water tube: GB / T 19228
Mechanical tube: ASTM A554, EN 10296-2
Production Size
Outer Diameter Range: 9.5~2000mm
Thickness Range: 0.5~20mm (Size can be customized.)
Length: Up to 18.3 meters per piece.
Shape sections of tube
Round, square, rectangular
Usage of tube
Sanitary tubing: for food processing industry, beverage industry, sugar mill and so on;

Heat exchanger tube: condenser, boiler, super heater, evaporator and so on;

Industiral pipe: for petroleum delivery, gas delivery, petrochemical industry, wastewater treatment, drainage system, and so on;

Mechanical tube: handrail, railings, balustrade, hence and so on.

UNS ASTM EN JIS C% Mn% P% S% Si% Cr% Ni% Mo%
S20100 201 1.4372 SUS201 ≤0.15 5.5-7.5 ≤0.06 ≤0.03 ≤1.00 16.0-18.0 3.5-5.5 -
S20200 202 1.4373 SUS202 ≤0.15 7.5-10.0 ≤0.06 ≤0.03 ≤1.00 17.0-19.0 4.0-6.0 -
S30100 301 1.4319 SUS301 ≤0.15 ≤2.00 ≤0.045 ≤0.03 ≤1.00 16.0-18.0 6.0-8.0 -
S30400 304 1.4301 SUS304 ≤0.08 ≤2.00 ≤0.045 ≤0.03 ≤0.75 18.0-20.0 8.0-10.5 -
S30403 304L 1.4306 SUS304L ≤0.03 ≤2.00 ≤0.045 ≤0.03 ≤0.75 18.0-20.0 8.0-12.0 -
S30908 309S 1.4833 SUS309S ≤0.08 ≤2.00 ≤0.045 ≤0.03 ≤0.75 22.0-24.0 12.0-15.0 -
S31008 310S 1.4845 SUS310S ≤0.08 ≤2.00 ≤0.045 ≤0.03 ≤1.50 24.0-26.0 19.0-22.0 -
S31600 316 1.4401 SUS316 ≤0.08 ≤2.00 ≤0.045 ≤0.03 ≤0.75 16.0-18.0 10.0-14.0 2.0-3.0
S31603 316L 1.4404 SUS316L ≤0.03 ≤2.00 ≤0.045 ≤0.03 ≤0.75 16.0-18.0 10.0-14.0 2.0-3.0
S31703 317L 1.4438 SUS317L ≤0.03 ≤2.00 ≤0.045 ≤0.03 ≤0.75 18.0-20.0 11.0-15.0 3.0-4.0
S32100 321 1.4541 SUS321 ≤0.08 ≤2.00 ≤0.045 ≤0.03 ≤0.75 17.0-19.0 9.0-12.0 -
S34700 347 1.455 SUS347 ≤0.08 ≤2.00 ≤0.045 ≤0.03 ≤0.75 17.0-19.0 9.0-13.0 -
S40500 405 1.4002 SUS405 ≤0.08 ≤1.00 ≤0.04 ≤0.03 ≤1.00 11.5-14.5 ≤0.60 -
S40900 409 1.4512 SUS409 ≤0.08 ≤1.00 ≤0.045 ≤0.03 ≤1.00 10.5-11.75 ≤0.50 -
S43000 430 1.4016 SUS430 ≤0.12 ≤1.00 ≤0.040 ≤0.03 ≤0.75 16.0-18.0 ≤0.60 -
S43400 434 1.4113 SUS434 ≤0.12 ≤1.00 ≤0.040 ≤0.03 ≤1.00 16.0-18.0 - -
S44400 444 1.4521 SUS444L ≤0.025 ≤1.00 ≤0.045 ≤0.03 ≤1.00 17.5-19.5 ≤1.00 -
S40300 403 - SUS403 ≤0.15 5.5-7.5 ≤0.04 ≤0.03 ≤0.50 11.5-13.0 ≤0.60 -
S410000 410 1.40006 SUS410 ≤0.15 ≤1.00 ≤0.035 ≤0.03 ≤1.00 11.5-13.5 ≤0.60 ≤1.00
S42000 420 1.4021 SUS420J1 0.16~0.25 ≤1.00 ≤0.04 ≤0.03 ≤1.00 12.0-14.0 ≤0.75 ≤1.00
S440A 440A 1.4028 SUS440A 0.60~0.75 ≤1.00 ≤0.04 ≤0.03 ≤1.00 16.0-18.0 - ≤0.75
S32750 SAD2507 1.441 ≤0.03 ≤1.2 ≤0.035 ≤0.02 ≤0.80 24.0-26.0 6.0-8.0 3.0-5.0
S31803 SAF2205 1.4462 ≤0.03 ≤2.0 ≤0.03 ≤0.02 ≤1.00 21.0-23.0 4.0-6.5 2.5-3.5
N08904 904L 1.4539 ≤0.0.3 ≤2.0 ≤0.035 ≤0.03 ≤1.00 18.0-20.0 23.0-25.0 3.0-4.0

Sanitary Stainless Steel Tube Pipe 304 ASTM A312 A270 3A 4 Inch 6 Inch 8 InchSanitary Stainless Steel Tube Pipe 304 ASTM A312 A270 3A 4 Inch 6 Inch 8 InchSanitary Stainless Steel Tube Pipe 304 ASTM A312 A270 3A 4 Inch 6 Inch 8 Inch
