Cnc machining service for multicopter Carbon Fiber CNC Service Chassis.

Introduction

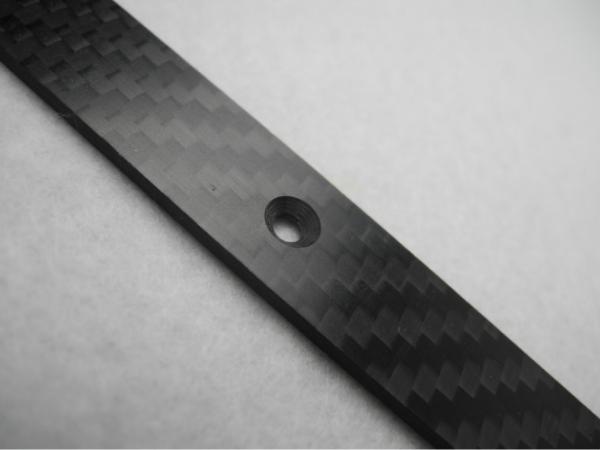

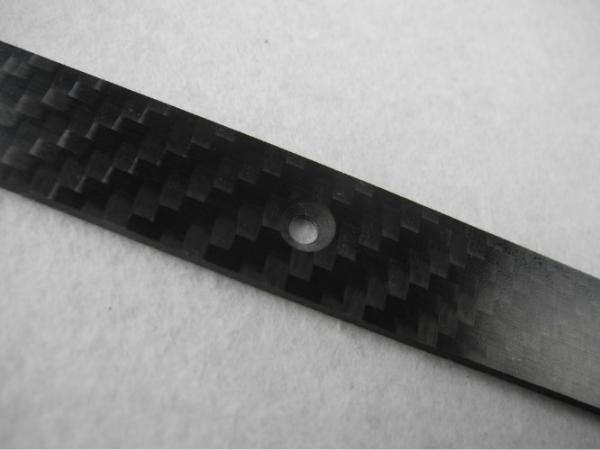

Carbon Fiber CNC with Countersink holes

Not only can Shanghai Lijin finish the rugular cutting and drilling feature, parts with Countersink holes

feature can be offered as well.

There are many subclasses in these directories need further elaboration.Such as different carbon fiber

stripe to produce different components and final product performance.

In order to create a carbon fiber part of tensile and compression are tough, needs a stable internal

structure building foundation and to maintain its shape.Epoxy resin is a kind of good compressive strength

and deformation of the excellent material, is often used to form the structure made of carbon fiber in the

structure reinforcement.As the density of resin small accordingly Light can be used to create the quality

of parts and very strong.

When making a components can use many different ways, including wet stack coating, vacuum bag

molding pressure, resin transfer, matching mould, insert molding, pultrusion and many other ways.

Specification

Carbon fiber advantage nc machining characteristics

High Strength
Good Tenacity
High Corrosion Resistance
Excellent Structural Properties
UV Resistant Inhibited
Environmentally Safe
Variety Of Colors For Choice
Non-Magnetic Electromagnetic
Consistent Cross Section
Dimensional Stability
Non-Conductive Thermally And Electrically
Wide Temperature Range Use

Carbon fiber CNC machining

1. CNC is a kind of by process control automation of machine tools, through the computer to decode,
2. Make the machine to perform prescribed actions, through the tool cutting blank material processed
3. Into semi-finished products production parts.
4. Three is efficient, highly efficient fixture can reduce processing time, improve labor productivity,
5. Reduce labor intensity;Four is flexible, adaptable flexibility is similar to that of a machine tool, through
6. The adjustment and combination way, improve the adaptability to process variables, better meet the
7. Modern machinery industry the needs of the many varieties, small batch production.

The comparison of strength, hardness and other materials

Carbon fiber is very strong, this is typical of the strength of the engineering material weight ratio and

stiffness to weight ratio, particularly in the increased weight can lead to a life cycle cost or not satisfied with

the performance of structure design.Hardness of a material is measure by its elasticity coefficient, the

coefficient of carbon fiber typical values 20 msi (138 Gpa), and its maximum tensile strength values are

typical 500 ksi (3.5 Gpa).High strength and hardness of carbon fiber material also has a higher application

value and can be through the professional heat treatment process.Compared with the 2024 - T3 aluminum

coefficient of typical values only 10 msi and the maximum tensile strength only 500 ksi typical values, and

the coefficient of 4130 steel typical values is 30 msi and the maximum tensile strength values are typical

125 ksi.

As an example, a plain carbon fiber board has 6 msi elasticity coefficient and bulk density of 83 LBS/ft3.In

contrast, the density of aluminum is 169 LBS/ft3, its weight hardness is 8.8 x 108 ft.So even if an ordinary

plain the weight of the carbon fiber board hardness is higher than the aluminum 18% 14% higher than

steel.When considering a custom as well as the strength of the reinforced carbon fiber board at the same

time increase the strength and hardness of the core material, obviously advanced carbon fiber composite

materials can be applied to widely.

***Pictures shown below are only to display the carbon fiber CNC capability,experience and Quality from LijinCarbon.
LijnCarbon will NOT disclose or share any drawings or product detail to third parties.

Display
