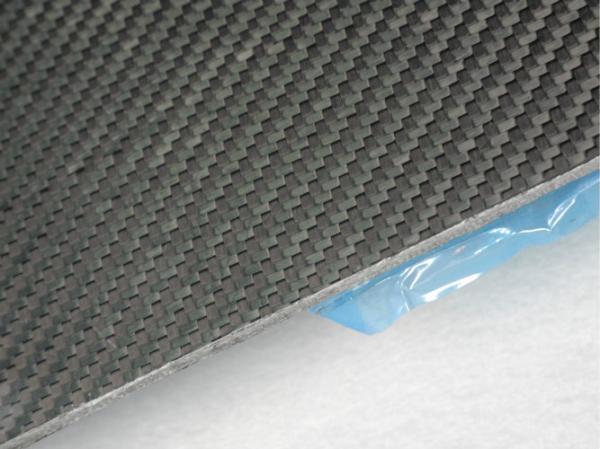

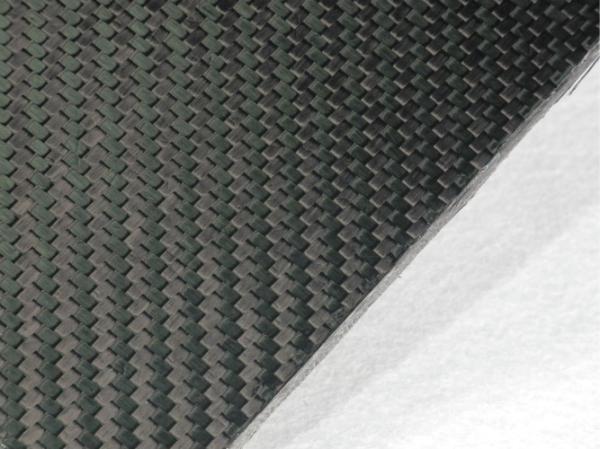

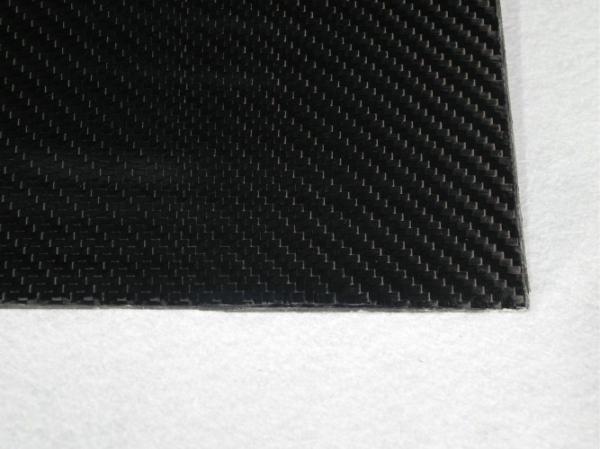

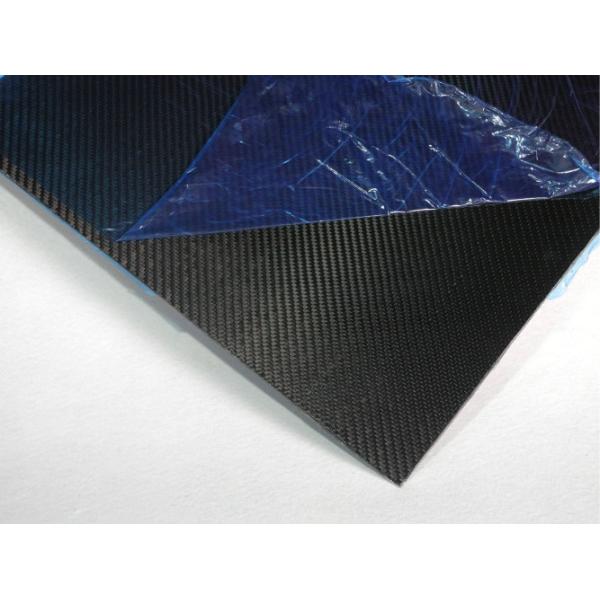

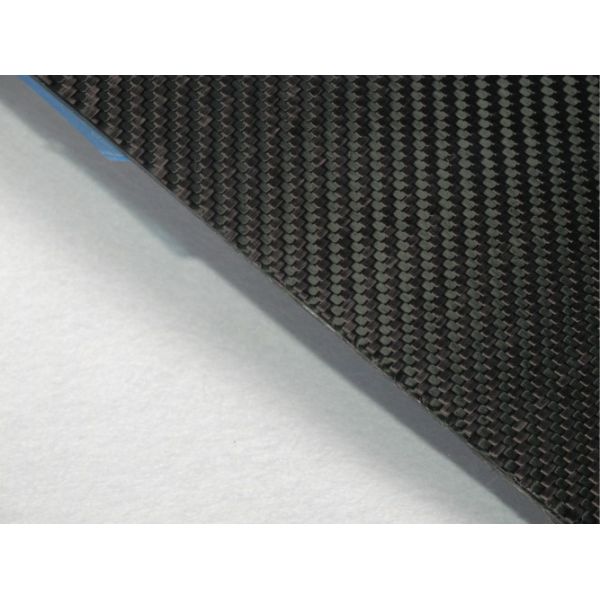

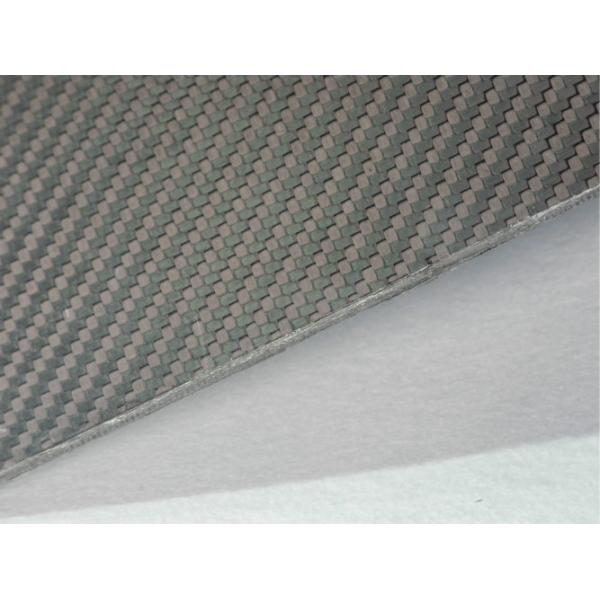

3K Twill glossy Carbon Fiber Plate 1.5mm Thickness 250mm*350mm Sheet UAV use .

Compared with the carbon fiber cloth, carbon fiber board has the following

advantages

1. Carbon fiber sheet is more suitable for adopts prestressed reinforcement method, can give full play

to their role as the carbon fiber high strength more,
2. Construction is convenient, easy to guarantee construction quality,
3. Carbon fiber plate than carbon fiber cloth is easy to keep straight, more conducive to carbon fiber,
4. A 1.2 mm thick plate is equivalent to 10 layers of carbon fiber cloth,
5. Compared with fiber cloth, fiber board wall brick mix structure are .

Specification

The development

During the 1980s Courtaulds continued to be a major supplier of carbon fiber for the sporting goods

markets, with Mitsubishi its main customer. Sadly, a move to expand, including building a manufacturing

plant in California, turned out unfortunately. The investment didn't generate the anticipated returns,

leading to a decision to pull out of the area. Courtaulds ceased carbon fiber production in 1991, though

ironically the one surviving UK carbon-fiber manufacturer continued to thrive making fiber based on

Courtaulds's precursor. Inverness-based RK Carbon Fibres Ltd has focused on producing carbon fiber

for industrial applications, and thus does not need to compete at the quality levels reached by overseas

producers.

Each carbon filament thread is a bundle of many thousand carbon filaments. A single such filament is

a thin tube with a diameter of 5-8 micrometers and consists almost exclusively of carbon. The earliest

generation of carbon fibers (i.e., T300, and AS4) had diameters of 7-8 micrometers. Later fibers

(i.e., IM6) have diameters that are approximately 5 micrometers.

Precursors for carbon fibers are rayon, polyacrylonitrile (PAN) and pitch. Carbon fiber filament yarns are

used in several manufacturing techniques: the direct uses are for prepregging, pultrusion, filament

winding, weaving, braiding, etc. Carbon fiber yarn is rated by the linear density (weight per unit length,

i.e. 1 g/1000 m = 1 tex) or by number of fibers per yarn count, in thousands. For example, 200 tex for

3,000 filaments of carbon fiber is three times as strong as 1,000 carbon fibers, but is also three times

as heavy. This count is usually expressed as 3K, 12K, 6K, etc. This thread can then be used to weave

a carbon fiber filament fabric or cloth. The appearance of this fabric generally depends on the linear

density of the yarn and the weave chosen. Some commonly used types of weave are plain, 2x2 twill,

4x4 twill and satin.
