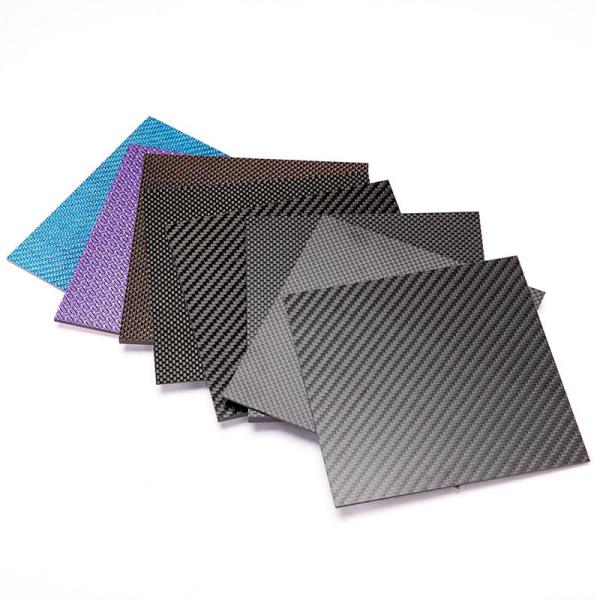

100% Real Carbon Fiber Plate CNC Cutting 3K Carbon Fiber Sheet Panels

Carbon fiber panel, also known as a carbon fiber sheet, is a flat, rigid material made from carbon fiber-reinforced composites. These panels are designed to be lightweight, incredibly strong, and versatile, making them suitable for a wide range of applications in various industries. Carbon fiber panels are typically composed of carbon fibers embedded in a resin matrix, which is cured and processed to create a solid and strong structure.

Key characteristics and applications of carbon fiber panels include:

• High Strength-to-Weight Ratio: Carbon fiber panels offer an exceptional strength-to-weight ratio, meaning they are significantly stronger than traditional materials like steel or aluminum while remaining lightweight.
• Stiffness: These panels provide high stiffness, making them suitable for applications that require minimal flex and high structural integrity.
• Corrosion Resistance: Carbon fiber panels do not corrode, making them ideal for outdoor and marine applications where exposure to moisture and harsh environments is a concern.
• Customizability: They can be customized in terms of thickness, size, and surface finish to meet specific project requirements.

Carbon fiber panels come in various forms, including plain weave, twill weave, unidirectional (UD) sheets, and more, each with different fiber orientations and aesthetics. The specific type of carbon fiber panel chosen depends on the application's requirements and the desired balance between strength, weight, and cost.

Carbon fiber panels come in various forms, including plain weave, twill weave, unidirectional (UD) sheets, and more, each with different fiber orientations and aesthetics. The specific type of carbon fiber panel chosen depends on the application's requirements and the desired balance between strength, weight, and cost.

3K real carbon fiber panels are an excellent solution when looking for a high-performance panel or when a thinner sheet is desired. Routes and cuts easily, with the lowest possible resin content for this production method. Flawless matte (low-medium gloss) 3K twill finish on both sides.

Single-Sided Carbon Fiber Plate Specification:

FAQ:

1. What kind of finish is available for carbon fiber sheets? Are carbon fiber sheets with a matt finish available?

At this moment only carbon fiber sheets with a gloss finish are available. We can supply a matt finish for larger wholesale orders.

2. Do you supply carbon fiber sheets of thickness customized to individual needs? And what accuracy can your company guarantee?

Our standard carbon fiber sheets are manufactured with accuracy up to ~ + 0.2mm, which means that a sheet 1.5mm thick may have a thickness within the range of 1.5-1.7mm. Upon request, we provide cutting of carbon fiber sheets to the required thickness with an accuracy of 0.05mm.

3. Do you supply unidirectional carbon fiber sheets or biaxial and triaxial carbon fiber sheets?

We supply carbon fiber sheets with 2/2 (twill) or 1/1 (plain) weave but upon request, we also supply unidirectional carbon fiber (UD) or biaxial and triaxial carbon fiber sheets.

4. Are carbon fiber sheets of the quasi-isotropic type available?

We supply carbon fiber sheets with layers oriented at 0/90 degrees, but upon request, we also supply carbon fiber sheets with layers oriented at 0/90/-45/+45 degrees namely quasi-isotropic carbon fiber sheets.

5. What is the thermal resistance of carbon fiber sheets?

Carbon fiber sheets offer thermal resistance of up to 70oC. Upon request, we also supply carbon fiber sheets with thermal resistance up to 150oC.

6. How can I cut carbon fiber sheets in my workshop?

The carbon fiber plates we make are easy to process. They do not flatten when milling on a CNC machine, and the edges are sharp and nice. The carbon plates we make can also be easily machined with household tools such as an angle grinder, drill, file, sandpaper, etc.

7. Can carbon fiber sheets be painted?

Actually, any further treatment depends on the intended use. All supplied carbon fiber sheets (and ones made from epoxy resin) offer resistance to UV. However in the case of long duration or repeated exposure to sunshine (UV radiation) it is recommended to apply a layer of clear top coat (e.g. Polyurethane and Acrylic based) on the outer side of the carbon fiber sheet to ensure total protection against UV radiation.
