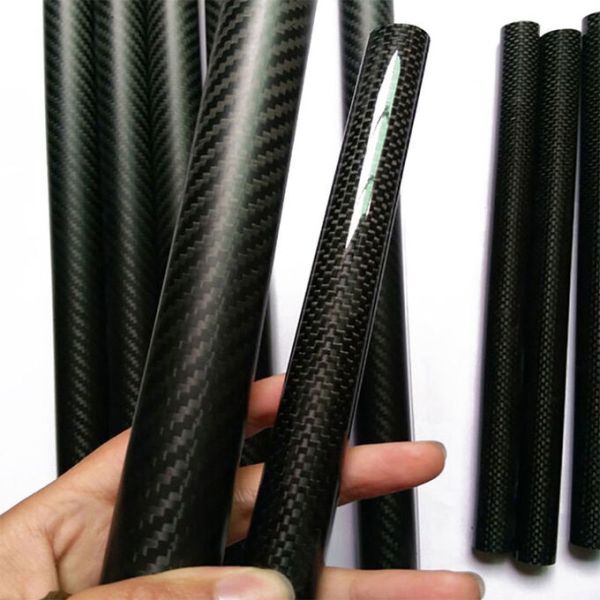

Roll Wrapped 30mm Glossy Finish 3K Carbon Fibre Pipe
Roll Wrapped 30mm Glossy Finish 3K Carbon Fibre Pipe
Roll Wrapped 30mm Glossy Finish 3K Carbon Fibre Pipe
Roll Wrapped 30mm Glossy Finish 3K Carbon Fibre Pipe
Roll Wrapped 30mm Glossy Finish 3K Carbon Fibre Pipe
Roll Wrapped 30mm Glossy Finish 3K Carbon Fibre Pipe
Roll Wrapped 30mm Glossy Finish 3K Carbon Fibre Pipe
Roll Wrapped 30mm Glossy Finish 3K Carbon Fibre Pipe
Specifications
Brand Name :
Tanku
Model Number :
OEM
Certification :
SGS, ROHS
Place of Origin :
China
MOQ :
Negotiable
Price :
Negotiable
Payment Terms :
T/T, Western Union, L/C
Supply Ability :
1500pcs month
Delivery Time :
7 working days after receiving Order Pay
Packaging Details :
Normal Corrugated Carton Packing for International Shipment
Product Name :
3K Carbon Fibre Pipe
Material :
100% Carbon Fiber
Color :
Black or custom
Surface :
Glossy finish
Diameter :
from 4mm to 100mm and more
Length :
the max is up to 6m
Condition :
100% New
Process :
Roll wrapped process
Application :
Sports Equipment, Industrial Equipment, Musical Instruments, etc.
Description

Customized Round Twill Weave Carbon Fiber Tubing 16MM 3K Matte Carbon Fiber Tube Pipe

3K Carbon Fibre Pipe Description:

High-performance carbon fibre tubes are our range of 3K woven finish tubes which have a stunning high-gloss woven carbon fibre finish to complement their incredible strength.

With the classic appearance of twill or plain carbon fibre coupled with 100% roll-wrapped prepreg carbon fibre construction, these remarkable tubes look as good as they perform.

As an industry-recognized leader of composite tubes, LIJIN is able to provide an extensive range of high-performance, lightweight composite tubing for use in a wide variety of industries and applications.

Our assortment of composite tubes is manufactured through roll wrapping, pultrusion, or filament winding processes in the most popular composite materials such as carbon fiber, fiberglass.

Available in standard and custom sizes, our composite tubes exhibit outstanding strength, durability, lightweight, and rigidity.

They deliver excellent tensile strength characteristics compared to conventional structural metals (such as steel, aluminum, and stainless steel), and are the first choice in a variety of performance applications.

3K Carbon Fibre Pipe Features:

  1. Made of high modulus 100% carbon fiber imported with epoxy resin.
  2. Great replacement for the low-grade aluminum wing tubes.
  3. Weighs only 1/5 of steel and 5 times stronger than steel.
  4. Low Coefficiency Of Thermal Expansion, High-Temperature Resistance.
  5. Good Tenacity, Good Toughness, Low Coefficiency Of Thermal Expansion.

Product

3K Carbon Fibre Pipe

Size

Diameter: from 4mm to 100mm and more
Length: the max is up to 6m
Customize tube is welcome. Please advise the OD*ID*length to us.

Surface

Glossy finish

Weave

3K weave on the inside and outside
3K weave on surface
LOGO printing is available

Condition

100% New

Process

Roll wrapped process

Features

High strength lightweight

Can use for

Frame arm, landing Gear, DIY drone, robotics/automation, R/C models, recreational equipment, motorsport, marine fishing equipment, machinery, automobile, sports equipment, decorating parts, and so on.

Carbon Fiber Tubes diameter specifications:

Outer diameter x Inner diameter:

1.8mm x1.0mm 2.0mm x1.0mm 2.5mm x1.5mm 3.0 mmx1.5mm 3.0 mmx2.0mm
3.5mm x2.0mm 4.0mm x2.0mm 4.0mm x2.5mm 4.0mm x3.0mm 4.5mm x2.5mm
4.5mm x3.0mm 5.0mm x3.0mm 5.0mm x4.0mm 5.5mm x3.5mm 5.5mm x4.0mm
6.0mm x4.0mm 6.0mm x4.5mm 6.0mm x5.0mm 7.0mm x5.0mm 7.0mm x6.0mm
8.0mm x6.0mm 8.0mm x7.0mm 8.5mm x6.5mm 9.5mm x7.5mm 10.0mm x6.0mm
10.0mm x8.0mm 10.0mm x9.0mm 12.0mm x8mm 12.0mm x10.0mm 16.0mm x12.0mm
16.0mm x14.0mm 18.0mm x16.0mm 20.0mm x16.0mm 20.0mm x18.0mm 25.0mm x20.0mm
35.0mm x30.0mm

We offer many composite tubing varieties if this tube does not meet your needs. We offer pultruded materials in a round solid bar, pipe, and square bar/tubing. We also stock roll wrapped tubes in 2x2 Twill and Plain weave styles with both matte and high gloss finish to give that stunning visual appearance your consumer products need. Upon special order, all of our unique fabrics can be converted into piping.

If you need a large diameter carbon fiber tube or want to get our carbon fiber tube price, please tell us.
