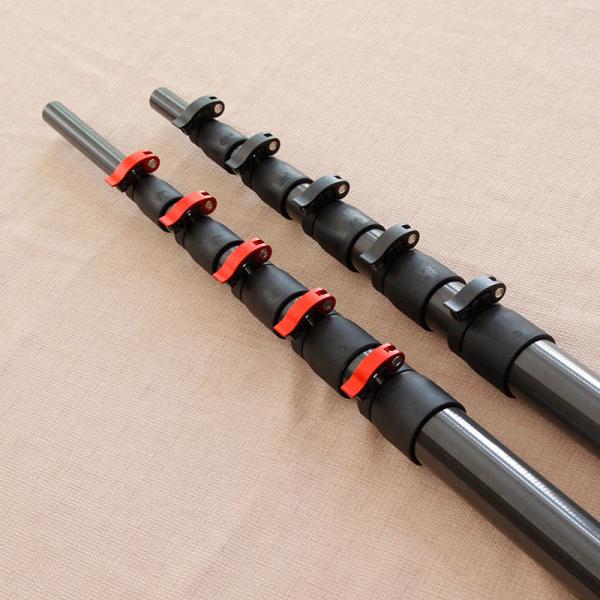

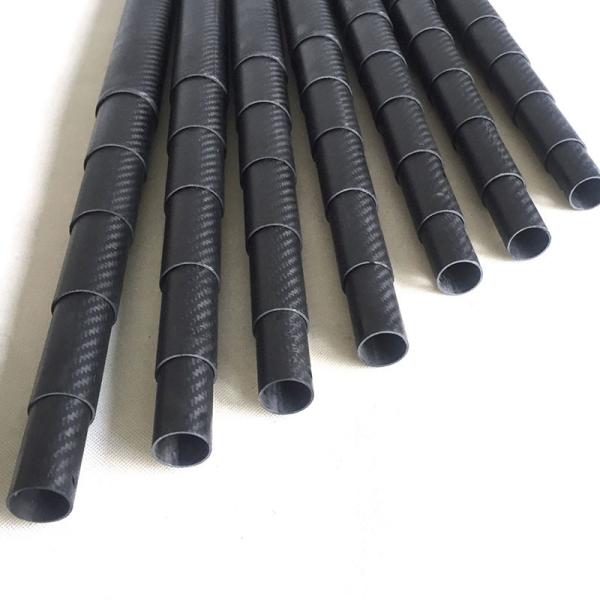

High-End Lightweight Carbon Fiber Telescopic Poles for Industrial Applications

Specialize in high-end telescopic poles for a variety of applications: aerial photography, fire and safety, industrial applications, audio & visual, military and security, and telescopic cleaning. Strong and quick-release NYLON clamp body and anti-pinch leather protection, all poles and parts are replaceable.

Telescopic extension pole is made of carbon fiber, fiberglass and hybrid. The length of telescopic extension pole can be customized to meet every application with the options of flap clamp, twist lock, friction telescoping locking mechanism. Moreover, the pole consists of a nylon end cap and top connected parts with removable, anti-off and rotation resistant design. The pole comes in a variety of sizes and lengths, so you'll find the one that's best for you.

Description

Lightweight construction, high stability, high-quality telescopic pole system

• Excellent corrosion and UV resistance
• Lock Type: flip clamps, heavy-duty clamps, twist locking telescoping mechanism
• Removable, anti-off, and rotation-resistant design options
• Telescopic pole systems are available in many different lengths, depending on the intended use, such as aerial photography, fire and safety, industrial applications, audio & visual, military and security, telescopic cleaning

Specifications

• High-quality lightweight carbon fiber, fiberglass, hybrid materials options
• Surface Finish: 3K and UD options
• Achievable Height: Customized long up to 30m
• Sections: 2~9
• Standard Accessories: tough end cap, top connected parts

Applications

Window cleaning, dust wiping, vacuuming, changing bulbs, tree pruning saw, various tool handles, measuring, swimming pool cleaning, microphone boom pole, telescopic video inspection, photography.

Detailed Size:

CHARACTERISTICS:
• Extended total length: 5000mm. (Tolerance ± 10mm.)
• Total length collected: 1360mm. (Tolerance ± 10mm.)
• Outside diameter of the larger tube: 31mm. (Tolerance ± 0.2mm.)
• Wall of the tubes: 1mm. (Tolerance ± 0.2mm.)
• Total weight: 812gr. (Tolerance ± 50gr.)
• Fiber: carbon 3K 200 gr / m2 Fabric Twill 2x2 (Twill)
• Resin: Epoxy
• Orientation of the fibers: Bidirectional
