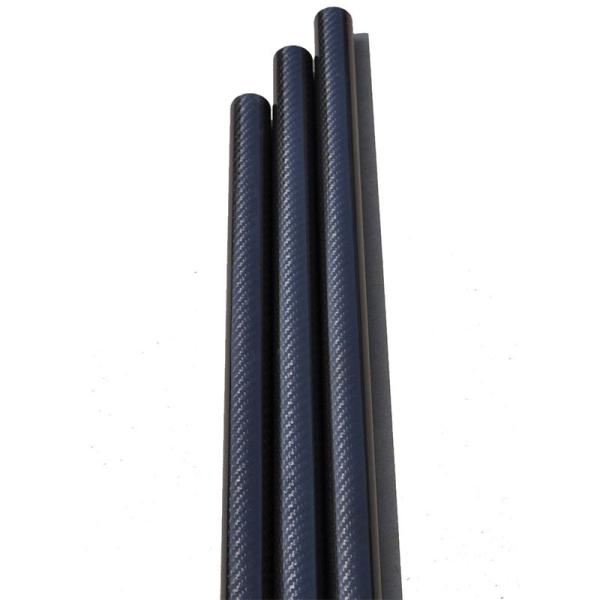

Carbon Fiber Tubing - 10mm x 8mm x 500mm - 3K Roll Wrapped 100% Carbon Fiber Tube Glossy

Roll wrapped prepreg carbon fiber tubes are constructed using multiple wraps of twill and/or unidirectional fabrics. Rolled tubes are ideal for applications that require the highest bending stiffness and lowest weight, such as automation, robotics, telescoping poles, idler rollers, and UAV components. The standard finish is cello-wrapped gloss, but a smooth sanded finish is also available. We use a roll wrapping process for smaller, shorter tubes. Roll-wrapping is primarily used for producing small to medium diameter tubes of shorter lengths like 1 meter to 1.5 meters, Roll-wrapping is typically the most economical process for smaller quantity production runs.

Also, We manufacture high-strength, low-weight carbon fiber tubes in various diameters. Our tubes are filament wounds for optimum fiber placement, to get the best performance. These tubes can be fabricated and assembled. Operations such as bonding, drilling, and precision cutting are also available.

What are composites?

Composites are a mixture of fibers and resin systems, which in combination result in a very strong and rigid material. The properties of the fibers are used to resist tensile and compressive loads, while the resin systems transfer shear. Because it is a combination of materials, a composite product can be combined and designed with a view to specific load-bearing capacities. Composites provide a number of advantages in relation to traditional materials, such as resistance to chemicals, as well as electrical and thermal insulating properties.

The main techniques we use are pultrusion and table rolling. With rich experience in pultrusion and FRP, we can provide you with varieties of tubes with different lengths and wall thicknesses.

LIJIN manufactures custom carbon fiber pultrusions to fit your strength, stiffness, and geometric requirements. Our products can be used as fishing poles, paddles, arrow shafts, alpenstocks, etc.

The regular color is black. And other colors are also available by special request.

To get more information or have an inquiry, please feel free to contact us.

1. Custom Carbon Fiber Tube/Tubing, Colored Carbon Fiber Tubes

· Size: Any Size Make-to-Order

· Appearance: We normally use 3k carbon. Custom made 1k,6k,12k

· Shape.: Round, Square, Oval, or per your request

· Thickness: 0.25mm-50mm

2. Promising Carbon Fiber Tube/Tubing Strength.

3. Surface: Glossy/ Matte & Weave Pattern : Twill / Plain / UD

4. 100% Carbon Fiber, Not including of any Glassfiber Mix Carbon.

5. Feature

· Low Density : 55%~67% of aluminum

· High Strength, tenacity, high modulus

· High corrosion resistance

· UV resistance

· Electromagnetic transparency

· Dimensional stability

· Applicability under the wide temperature range

6. Professional OEM Carbon Fiber CNC Cutting Parts, According to Customers Design Drawing(DWG.&DXF. format), Confidentiality DIY Design

Uses Include:

• Aerospace Spars & Beams
• UAV Housing Components
• Frames & Supports
• Structural Components
• Interior Design
• Automation Equipment
• Recreational Equipment

• Good production capacity, prompt delivery
• Specification can be customized
• Strict quality control system in every production process
