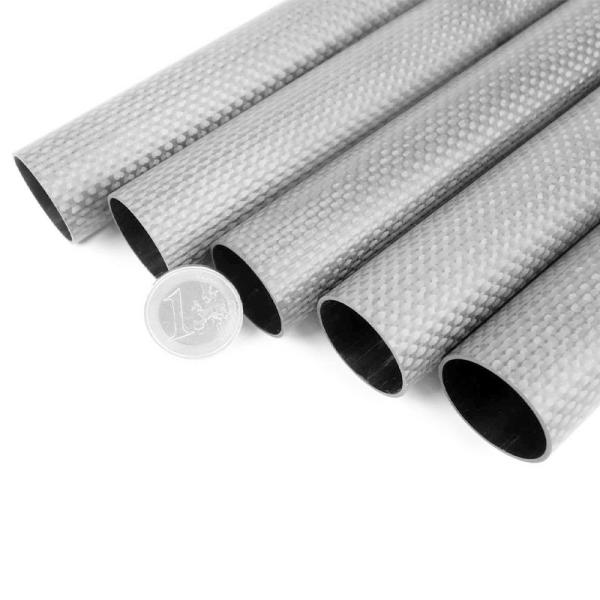

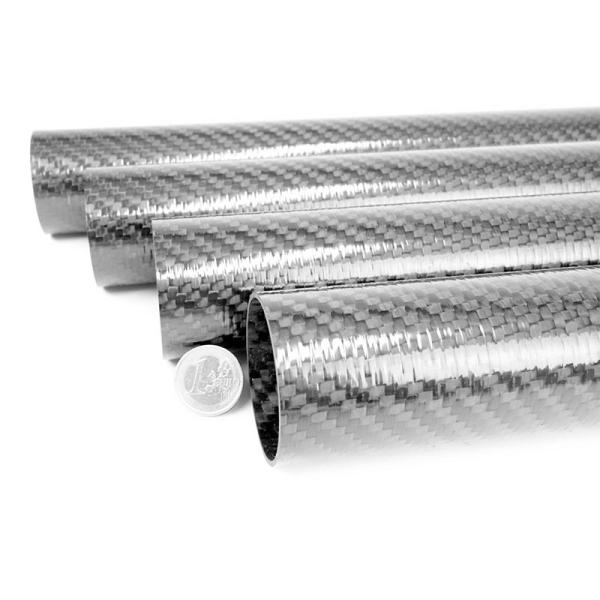

Carbon Fiber Tube - Silver - 25mm X 23mm X 1000mm - Hollow Carbon Fiber Rods - 3K Wrap

LIJIN carbon fiber tubing utilizing advanced Nano technology. These lightweight pur carbon fiber tubes are carbon hollow rods with 1mm carbon fiber walls yet extremely strong. Round carbon fiber tubes made of 100% carbon fiber with a glossy finish, Tubes are made from 3K Tow carbon fiber weave, which means each weave group consists of 3000 carbon nanotubes with these tow woven in a weave pattern giving both vertical and horizontal strength. These tubes can have any number of uses including RC cars and planes, projects requiring high strength-to-weight ratios, drones, and more.

About this item

• 25mm x 23mm x 1000mm Carbon fiber tubes
• 1mm - Carbon fiber wall thickness
• Silver High glossy finish over twill weave
• Easy to use and modify can be cut with fine tooth blades
• High-strength carbon tubing

Properties and Benefits of Carbon Fiber Tubes

Strength-to-Weight Ratio

One of the most significant advantages of carbon fiber tubes is their exceptional strength-to-weight ratio. Carbon fiber tubes are known to be up to five times stronger than steel while weighing only one-fifth as much. This makes them ideal for applications where weight savings are crucial without compromising structural integrity. The specific strength (strength per unit density) of carbon fiber tubes can reach values around 1500 kNm/kg, significantly higher than that of traditional materials like aluminum and steel. This property is particularly beneficial in industries such as aerospace, automotive, and sporting goods, where reducing weight can lead to enhanced performance and fuel efficiency.

Moreover, carbon fiber tubes can be customized to achieve even higher specific strengths for advanced applications, such as in the construction of space structures or high-performance sports equipment. The ability to combine different fiber orientations within a single tube can enhance specific properties like torsional strength or impact resistance. For example, hybrid carbon fiber tubes, which incorporate other high-strength materials such as Kevlar, can achieve tensile strengths up to 4.0 GPa, making them suitable for extreme environments and high-stress applications. The density of carbon fiber tubes typically ranges from 1.5 to 1.6 g/cm³, contributing to their lightweight nature and ease of handling.

Corrosion Resistance

Carbon fiber tubes exhibit excellent resistance to corrosion, unlike metals such as steel and aluminum, which can degrade over time when exposed to moisture and chemicals. This corrosion resistance makes carbon fiber tubes ideal for use in harsh environments, including marine, industrial, and chemical processing applications. The inert nature of the carbon fibers and the stability of the epoxy resin matrix contribute to this resistance, ensuring long-term durability and reduced maintenance costs. Carbon fiber composites maintain their structural integrity and performance in environments where metals would fail, contributing to longer service life and lower lifecycle costs.

The high corrosion resistance of carbon fiber tubes also translates into significant cost savings over the lifecycle of a product. For instance, offshore oil and gas platforms use carbon fiber tubes for risers and other structural components to avoid the frequent and costly maintenance required for steel alternatives. The annual maintenance cost for steel risers can exceed $100,000, whereas carbon fiber risers require minimal upkeep, potentially reducing maintenance costs by up to 80%. Furthermore, the non-reactive nature of carbon fiber makes it an ideal choice for biomedical applications, where biocompatibility and resistance to body fluids are essential for long-term implants and prosthetics. Carbon fiber composites do not elicit immune responses, making them suitable for medical implants such as prosthetic limbs and spinal rods. The chemical inertness of carbon fiber, combined with its mechanical properties, ensures that it can be used in environments where other materials would fail or require extensive protective measures. Carbon fiber's biocompatibility reduces the risk of adverse reactions and extends the lifespan of medical devices and implants, often exceeding 20 years without degradation.
