Carbon Kevlar hinge with thickness to 0.5mm and 120kg static load
Carbon Kevlar hinge with thickness to 0.5mm and 120kg static load
Carbon Kevlar hinge with thickness to 0.5mm and 120kg static load
Carbon Kevlar hinge with thickness to 0.5mm and 120kg static load
Carbon Kevlar hinge with thickness to 0.5mm and 120kg static load
Carbon Kevlar hinge with thickness to 0.5mm and 120kg static load
Carbon Kevlar hinge with thickness to 0.5mm and 120kg static load
Carbon Kevlar hinge with thickness to 0.5mm and 120kg static load
Carbon Kevlar hinge with thickness to 0.5mm and 120kg static load
Carbon Kevlar hinge with thickness to 0.5mm and 120kg static load
Carbon Kevlar hinge with thickness to 0.5mm and 120kg static load
Carbon Kevlar hinge with thickness to 0.5mm and 120kg static load
Specifications
Brand Name :
Skywell
Model Number :
carbon kevlar hinge
Certification :
SGS
Place of Origin :
China
MOQ :
10 pieces
Price :
USD5-20 Per Piece
Payment Terms :
Western Union, Western Union, MoneyGram, T/T,
Supply Ability :
10000 pieces per month
Delivery Time :
5-8 days
Packaging Details :
10 pieces / paper box
Materials :
Carbon fiber + kevlar +Resin
Item :
Carbon kevlar fiber hinge
Features :
High strength and high modulus and light
Size :
custom
Outward :
3K plain / 3K twill
Thickness :
0.5mm to 6.0mm
Length :
10cm to 150cm
Wings :
18mm to 25mm
Painting Finish :
Matte / Glossy / rough
Additional CNC :
Yes
Delivery :
3-5 days after confirmed order
Packing :
10 pieces / paper box
Description

Carbon Kevlar hinge with thickness to 0.5mm and 120kg static load

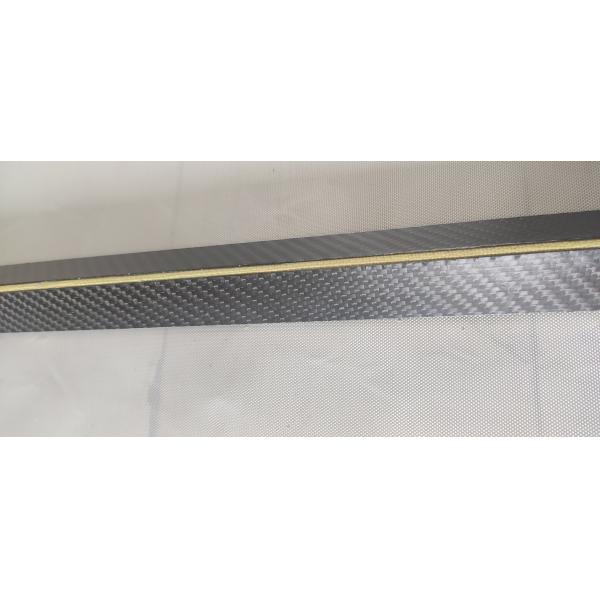

Carbon Kevlar hinges consist of rigid wings and flexure units. The rigid airfoil is a woven carbon fiber or glass fiber carbon hybrid in an epoxy resin matrix. And telescopic units with single or double Kevlar versions.
It can be rotated 360 degrees, bearing up to 200KG

The 1.6mm hinge is specially designed for bonding assembly. All hinges exceeding this thickness can be glued, fixed with screws or both.

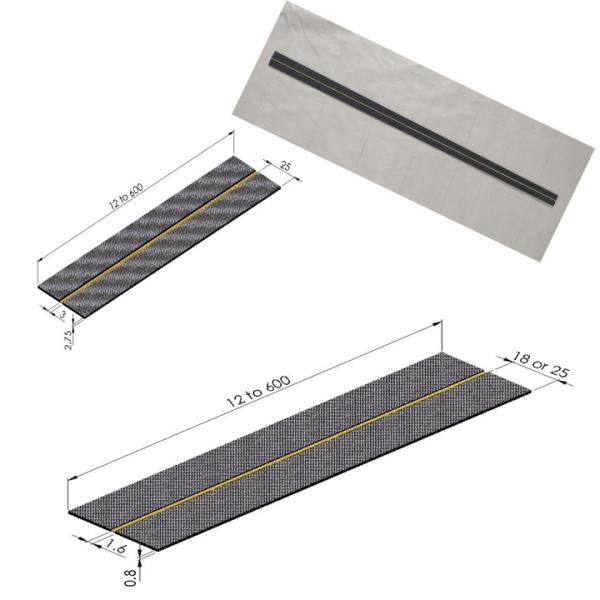

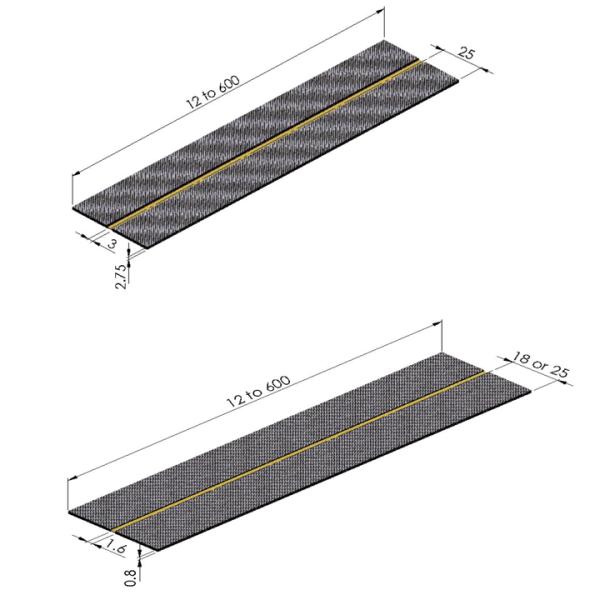

We provide a selection of hinge configurations, however, hinges of various sizes can be customized. The length of the hinge ranges from 12mm to 1500mm, or the length of the panel hinge is from 100mm to 600mm, Wings has 18mm to 30mm , and can be pre-drilled and countersunk.

Phsical Paremeter:

  1. Resin Type : Epoxy resin,carbon fiber , Kevlar
  2. Density :>1.65g /cm3
  3. Stiffness : >80-120 GPA
  4. Service Temperature : -40F To 248F
  5. Load : 120kg to 300kg

Hinge Selection Flowchart

Wings Thickness (mm) Closed Flex unit Others Length
18mm -25mm 0.8 Single Urethane Impregnated Kevlar Ultra thin, Bond only 50-300mm
18mm -25mm 1.0 Single Urethane Impregnated Kevlar Ultra thin, Bond only 50-1000mm
18mm -25mm 1.6 Single Urethane Impregnated Kevlar thin, Bond only 50-1000mm
18mm -25mm 3 Single Urethane Impregnated Kevlar Bond and screw assembly 50-1000mm
25mm 3.5 Double Urethane Impregnated Kevlar Bond and screw assembly 50-1500mm
18mm -25mm 5 Single Urethane Impregnated Kevlar counterbore to accept screws 50-1500mm
25mm 5.5 Double Urethane Impregnated Kevlar counterbore to accept screws 50-1500mm

Carbon Kevlar hinge with thickness to 0.5mm and 120kg static load

Application :

Ocean,shipping,Furniture,Auto parts etc

Carbon Kevlar hinge with thickness to 0.5mm and 120kg static load

Carbon Kevlar hinge with thickness to 0.5mm and 120kg static load
