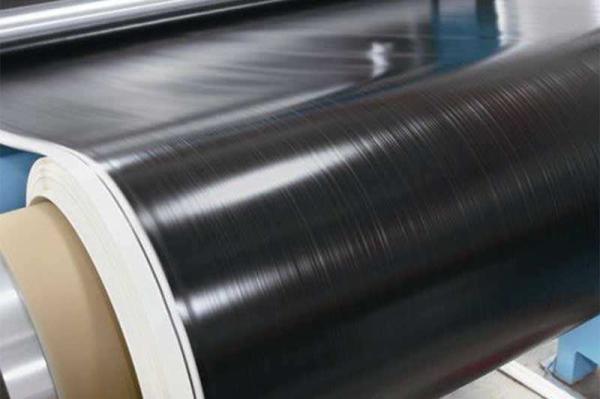

U Directional Carbon Fiber Prepreg 24 Ton Faw 100g 240 GPA Impact Resistant
U Directional Carbon Fiber Prepreg 24 Ton Faw 100g 240 GPA Impact Resistant
U Directional Carbon Fiber Prepreg 24 Ton Faw 100g 240 GPA Impact Resistant
U Directional Carbon Fiber Prepreg 24 Ton Faw 100g 240 GPA Impact Resistant
U Directional Carbon Fiber Prepreg 24 Ton Faw 100g 240 GPA Impact Resistant
U Directional Carbon Fiber Prepreg 24 Ton Faw 100g 240 GPA Impact Resistant
U Directional Carbon Fiber Prepreg 24 Ton Faw 100g 240 GPA Impact Resistant
U Directional Carbon Fiber Prepreg 24 Ton Faw 100g 240 GPA Impact Resistant
Specifications
Brand Name :
Carbon Power
Model Number :
U24T10000-34
Certification :
SGS
Place of Origin :
China
MOQ :
100㎡
Price :
USD6/㎡
Payment Terms :
T/T, Western Union, MoneyGram
Supply Ability :
100000㎡ per month
Delivery Time :
5-8 days
Packaging Details :
Polyester bag and foam rolling inside,Paper carton out of packing size 121cm*42cm*40cm
Carbon fiber Type :
24Ton And T700
FAW :
100g/㎡
RC :
34%
Thickness :
0.105mm
Total weight :
151g/㎡
Tensile Strength :
4900MPA
Strength Modulus :
240GPA
Density :
1.82
Resin System :
#4177
Carbon fiber :
T700 / TR50S
Scrim :
No
Description
Resin No. 　 　 Resin Type 　 　 Curing Temperature ℃ 　 Features & applications
　 　 　 　 　 　 　 　 　
#450 　 　 Epoxy 　 　 130 　 High flex ,impact resistant,Fishing rob,Golf,rolling tube
#469 　 　 Epoxy 　 　 130 　 General industry,sporting equipment, bicycle frame,bicycle rims,Racket,hockey stick
#477 　 　 Epoxy 　 　 130 　 The better improved type than #469,Used in low RC ,high carbon modulus ,And for products with higher quality.Superior impact resistant ,better transparency,self-adhesive, sporting products like bike,racket,hockey,golf etc
#4177 　 　 Epoxy 　 　 135 　 Used in low RC ,high carbon modulus ,And for products with higher quality.Superior impact resistant ,half of transparency, higher self-adhesive
#4619 　 　 Epoxy 　 　 135 　 Not suitable for products asked by nice transparency apperance,And lower resin loss rate, general sporting products
#502AB 　 　 Epoxy 　 　 130 　 Specially Designed for impact resistant, the #502A Most used in non-transparency products , And #502B used in transparency products ,like safe helmet
#3016TG 　 　 Epoxy 　 　 160 　 impact resistant,most suitable for products that needs high temperature resistant,like road bicycle rims ,braking system
#3017TG 　 　 Epoxy 　 　 180 　 Be suitable for products that needs high temperature resistant,flame retardant, TG point for 180℃ to 190℃
#8005 　 　 Epoxy 　 　 180 　 Aircraft,PC products,Flame retardant, high standard under Germany DIN5510-2 ,And United State UL94V0.

U Directional Carbon Fiber Prepreg 24 Ton Faw 100g 240 GPA Impact Resistant

1. What is the feature of carbon fiber ?

Carbon Fiber's Specisal Features and Characterizing Performances

1>. Light in Weight and Strong (Mechanical Performances)

2>. Excellent Dimensional Stability and Heat Resistance (Thermal Characteristics)

3>. Highly Electric Conductive and Excellent EMI Shielding Propaerty

4>. Magnificant X-ray Permeability

2. How to get Pan type carbon fiber ?

Carbon Fibers are manufactured by production processes as illustrated below. Manufacturers produce the fibers under different processing conditions to get assortments of products qualities.

U Directional Carbon Fiber Prepreg 24 Ton Faw 100g 240 GPA Impact Resistant

3. To be suit for different manufacturer progress.

U Directional Carbon Fiber Prepreg 24 Ton Faw 100g 240 GPA Impact Resistant

4. Application:

U Directional Carbon Fiber Prepreg 24 Ton Faw 100g 240 GPA Impact Resistant

5. Resin system :

There are 8 different resin systems , Here you can find one that suits you . Please go to download our spreadsheet of products.

Resin No. Resin Type Curing Temperature ℃ Features & applications
#450 Epoxy 130 High flex ,impact resistant,Fishing rob,Golf,rolling tube
#469 Epoxy 130 General industry,sporting equipment, bicycle frame,bicycle rims,Racket,hockey stick
#477 Epoxy 130 The better improved type than #469,Used in low RC ,high carbon modulus ,And for products with higher quality.Superior impact resistant ,better transparency,self-adhesive, sporting products like bike,racket,hockey,golf etc
#4177 Epoxy 135 Used in low RC ,high carbon modulus ,And for products with higher quality.Superior impact resistant ,half of transparency, higher self-adhesive
#4619 Epoxy 135 Not suitable for products asked by nice transparency apperance,And lower resin loss rate, general sporting products
#502AB Epoxy 130 Specially Designed for impact resistant, the #502A Most used in non-transparency products , And #502B used in transparency products ,like safe helmet
#3016TG Epoxy 160 impact resistant,most suitable for products that needs high temperature resistant,like road bicycle rims ,braking system
#3017TG Epoxy 180 Be suitable for products that needs high temperature resistant,flame retardant, TG point for 180℃ to 190℃
#8005 Epoxy 180 Aircraft,PC products,Flame retardant, high standard under Germany DIN5510-2 ,And United State UL94V0.

U Directional Carbon Fiber Prepreg 24 Ton Faw 100g 240 GPA Impact Resistant

6. Carbon Fiber Specification :

Type Tickness FAW (g/㎡) RC (%) Total weight (g/㎡) Tensile strength (MPA) Tensile Modulus (GPA)
U24T10000-34 0.105 100 34 151 4900 240
