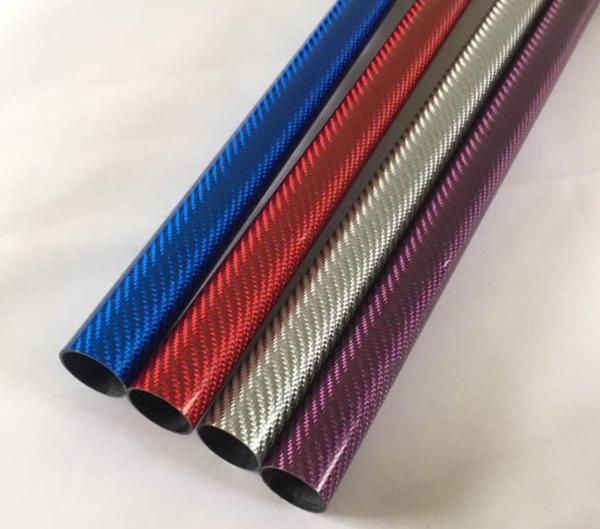

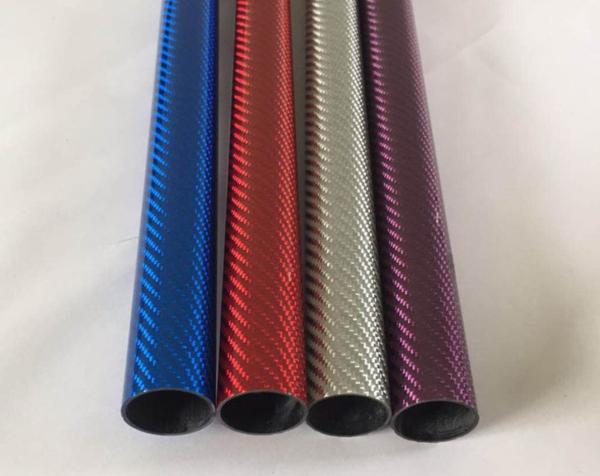

High Modulus Carbon Fiber Products Colourful Kevlar Aramid Carbon Fiber Tube
High Modulus Carbon Fiber Products Colourful Kevlar Aramid Carbon Fiber Tube
High Modulus Carbon Fiber Products Colourful Kevlar Aramid Carbon Fiber Tube
High Modulus Carbon Fiber Products Colourful Kevlar Aramid Carbon Fiber Tube
High Modulus Carbon Fiber Products Colourful Kevlar Aramid Carbon Fiber Tube
High Modulus Carbon Fiber Products Colourful Kevlar Aramid Carbon Fiber Tube
High Modulus Carbon Fiber Products Colourful Kevlar Aramid Carbon Fiber Tube
High Modulus Carbon Fiber Products Colourful Kevlar Aramid Carbon Fiber Tube
High Modulus Carbon Fiber Products Colourful Kevlar Aramid Carbon Fiber Tube
High Modulus Carbon Fiber Products Colourful Kevlar Aramid Carbon Fiber Tube
High Modulus Carbon Fiber Products Colourful Kevlar Aramid Carbon Fiber Tube
High Modulus Carbon Fiber Products Colourful Kevlar Aramid Carbon Fiber Tube
High Modulus Carbon Fiber Products Colourful Kevlar Aramid Carbon Fiber Tube
High Modulus Carbon Fiber Products Colourful Kevlar Aramid Carbon Fiber Tube
High Modulus Carbon Fiber Products Colourful Kevlar Aramid Carbon Fiber Tube
High Modulus Carbon Fiber Products Colourful Kevlar Aramid Carbon Fiber Tube
Specifications
Brand Name :
Skywell
Model Number :
Colourful Kevlar-Aramid Carbon Fiber Tube
Certification :
SGS
Place of Origin :
China
MOQ :
100 meters
Price :
USD3-10 Per meter
Payment Terms :
L/C, T/T, Western Union, MoneyGram,paypal
Supply Ability :
10000 meters per month
Delivery Time :
5-8 days
Packaging Details :
100 meters / paper box
Materials :
Carbon fiber + Resin
Item :
Colourful Kevlar-Aramid Carbon Fiber Tube
Features :
High strength and high modulus and light
Size :
Custom or at sight of design
Outward :
3K plain / 3K twill / colourful kevlar
Diameter :
Customized
Thickness :
1mm, 2mm, 3mm, 4mm, 5mm
Painting Finish :
Matte / Glossy
Additional CNC :
Yes
Delivery :
5-7 days after confirmed order
Packing :
10 piecs / paper box
Description

High Modulus Carbon Fiber Products Colourful Kevlar Aramid Carbon Fiber Tube

Roll wrapped prepreg carbon fiber tubes are constructed using multiple wraps of twill and/or unidirectional fabrics. It's ideal for applications that require high strength and light weight. Carbon fiber tubes/poles are widely used in different applications like telescopic poles, sport equipment, exhaust pipes and etc.

Phsical Parameter:

Resin type Epoxy
Tolerances +/-1-2mm
Density >1.65g/cm3
Stiffness >80-120Gpa
Bending Strength >80-120Gpa
Tensile Strength >650Mpa
Service Temperature -40F to 248F

High Modulus Carbon Fiber Products Colourful Kevlar Aramid Carbon Fiber Tube

Remark: OD means outer diameter, ID means inner diameter. Maximum length could be 5 meters.

OD*ID*LENGTH mm OD*ID*LENGTH mm OD*ID*LENGTH mm OD*ID*LENGTH mm OD*ID*LENGTH mm
5/3/1000 13/11/1000 23/21/1000 33/31/1000 47/45/1000
6/4/1000 14/12/1000 24/19/1000 34/32/1000 48/44/1000
7/5/1000 15/10/1000 24/22/1000 35/25/1000 48/46/1000
7/6/1000 15/11/1000 25/22/1000 35/33/1000 50/46/1000
8/6/1000 15/13/1000 25/23/1000 36/34/1000 50/44/1000
8/7/1000 16/12/1000 26/24/1000 37/35/1000 50/46/1000
9/7/1000 16/14/1000 27/25/1000 38/35/1000 50/48/1000
9/8/1000 17/15/1000 28/24/1000 38/36/1000 60/57/1000
10/6/1000 18/16/1000 28/26/1000 40/36/1000 Customized
10/8/1000 19/17/1000 29/25/1000 40/38/1000
10/9/1000 20/16/1000 29/27/1000 41/39/1000
11/8/1000 20/18/1000 30/26/1000 42/40/1000
11/9/1000 22/18/1000 30/28/1000 43/41/1000
12/6/1000 22/19/1000 31/28/1000 44/42/1000
12/10/1000 22/20/1000 31/29/1000 45/43/1000
12/11/1000 23/19/1000 32/30/1000 46/44/1000

Application :

Carbon fiber bicycle tube, photography tripod tube, golf clubs for sports and leisure, semi-finished fishing and fishing rods,

arrows, poles, ski poles, masts for ships, carbon fiber shafts for equipment, carbon fiber rollers for equipment, etc.

High Modulus Carbon Fiber Products Colourful Kevlar Aramid Carbon Fiber Tube

High Modulus Carbon Fiber Products Colourful Kevlar Aramid Carbon Fiber Tube

High Modulus Carbon Fiber Products Colourful Kevlar Aramid Carbon Fiber TubeHigh Modulus Carbon Fiber Products Colourful Kevlar Aramid Carbon Fiber TubeHigh Modulus Carbon Fiber Products Colourful Kevlar Aramid Carbon Fiber TubeHigh Modulus Carbon Fiber Products Colourful Kevlar Aramid Carbon Fiber Tube
