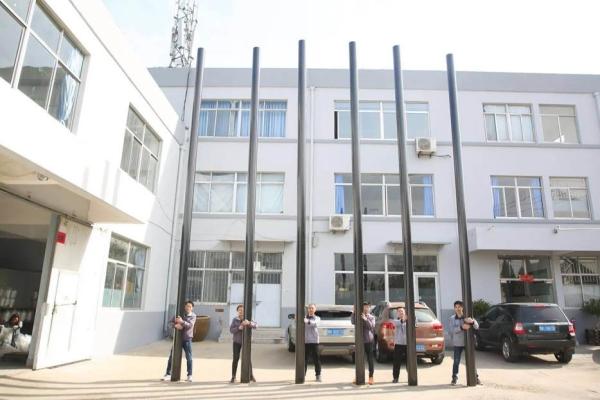

Longer Carbon Fiber Products Tube 8 Meters Length For Building Reinforcement
Longer Carbon Fiber Products Tube 8 Meters Length For Building Reinforcement
Longer Carbon Fiber Products Tube 8 Meters Length For Building Reinforcement
Longer Carbon Fiber Products Tube 8 Meters Length For Building Reinforcement
Longer Carbon Fiber Products Tube 8 Meters Length For Building Reinforcement
Longer Carbon Fiber Products Tube 8 Meters Length For Building Reinforcement
Longer Carbon Fiber Products Tube 8 Meters Length For Building Reinforcement
Longer Carbon Fiber Products Tube 8 Meters Length For Building Reinforcement
Longer Carbon Fiber Products Tube 8 Meters Length For Building Reinforcement
Longer Carbon Fiber Products Tube 8 Meters Length For Building Reinforcement
Longer Carbon Fiber Products Tube 8 Meters Length For Building Reinforcement
Longer Carbon Fiber Products Tube 8 Meters Length For Building Reinforcement
Specifications
Brand Name :
Skywell
Model Number :
longer tube
Certification :
SGS
Place of Origin :
China
MOQ :
1 Piece
Price :
USD100 -USD1000 per piece
Supply Ability :
100 meters per month
Delivery Time :
5-8 days
Packaging Details :
foam packing , shipped by ocean container
Materials :
Carbon fiber + Resin
Item :
Carbon fiber tubes
Features :
High strength and high modulus and light
Size :
Custom or at sight of design
Outward :
UD
Diameter :
6mm-50mm
Thickness :
1mm, 2mm, 3mm, 4mm, 5mm,7mm
Painting Finish :
Matte / Glossy
Additional CNC :
Yes
Delivery :
5-7 days after confirmed order
Packing :
1 set / paper box
Description

Longer Carbon Fiber Products Tube 8 Meters Length For Building Reinforcement

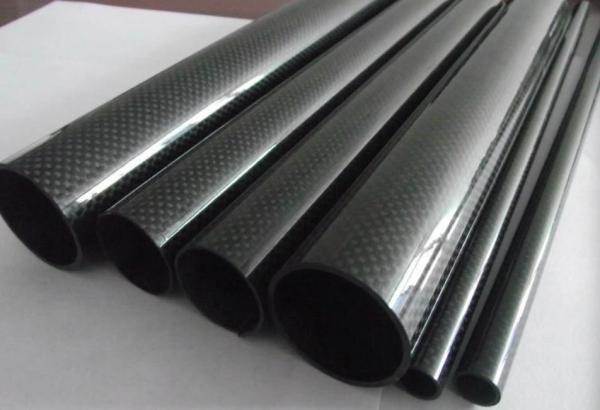

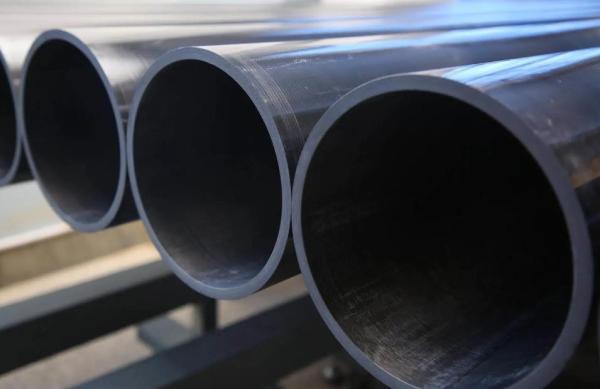

The carbon fiber tubes , one product can replace steel or metal tubes in some industry .

The high strength and high modulus of tubes is better than steel . And the weight of carbon fiber tubes is pretty light.

Phsical Parameter:

Resin type Epoxy
Tolerances +/-1-2mm
Density >1.65g/cm3
Stiffness >80-120Gpa
Bending Strength >80-120Gpa
Tensile Strength >650Mpa
Service Temperature -40F to 248F

Longer Carbon Fiber Products Tube 8 Meters Length For Building Reinforcement

Remark: OD means outer diameter, ID means inner diameter. Maximum length could be 5 meters.

OD*ID*LENGTH mm OD*ID*LENGTH mm OD*ID*LENGTH mm OD*ID*LENGTH mm OD*ID*LENGTH mm
5/3/1000 13/11/1000 23/21/1000 33/31/1000 47/45/1000
6/4/1000 14/12/1000 24/19/1000 34/32/1000 48/44/1000
7/5/1000 15/10/1000 24/22/1000 35/25/1000 48/46/1000
7/6/1000 15/11/1000 25/22/1000 35/33/1000 50/46/1000
8/6/1000 15/13/1000 25/23/1000 36/34/1000 50/44/1000
8/7/1000 16/12/1000 26/24/1000 37/35/1000 50/46/1000
9/7/1000 16/14/1000 27/25/1000 38/35/1000 50/48/1000
9/8/1000 17/15/1000 28/24/1000 38/36/1000 60/57/1000
10/6/1000 18/16/1000 28/26/1000 40/36/1000 Customized
10/8/1000 19/17/1000 29/25/1000 40/38/1000
10/9/1000 20/16/1000 29/27/1000 41/39/1000
11/8/1000 20/18/1000 30/26/1000 42/40/1000
11/9/1000 22/18/1000 30/28/1000 43/41/1000
12/6/1000 22/19/1000 31/28/1000 44/42/1000
12/10/1000 22/20/1000 31/29/1000 45/43/1000
12/11/1000 23/19/1000 32/30/1000 46/44/1000

Longer Carbon Fiber Products Tube 8 Meters Length For Building ReinforcementLonger Carbon Fiber Products Tube 8 Meters Length For Building ReinforcementLonger Carbon Fiber Products Tube 8 Meters Length For Building Reinforcement

Application :

Carbon fiber bicycle tube, photography tripod tube, golf clubs for sports and leisure, semi-finished fishing and fishing rods,

arrows, poles, ski poles, masts for ships, carbon fiber shafts for equipment, carbon fiber rollers for equipment, etc.

Longer Carbon Fiber Products Tube 8 Meters Length For Building Reinforcement
