E Glass Coated Fiberglass Fabric Unidirectional Epoxy Resin System Heat Resistant
E Glass Coated Fiberglass Fabric Unidirectional Epoxy Resin System Heat Resistant
E Glass Coated Fiberglass Fabric Unidirectional Epoxy Resin System Heat Resistant
E Glass Coated Fiberglass Fabric Unidirectional Epoxy Resin System Heat Resistant
E Glass Coated Fiberglass Fabric Unidirectional Epoxy Resin System Heat Resistant
E Glass Coated Fiberglass Fabric Unidirectional Epoxy Resin System Heat Resistant
E Glass Coated Fiberglass Fabric Unidirectional Epoxy Resin System Heat Resistant
E Glass Coated Fiberglass Fabric Unidirectional Epoxy Resin System Heat Resistant
E Glass Coated Fiberglass Fabric Unidirectional Epoxy Resin System Heat Resistant
E Glass Coated Fiberglass Fabric Unidirectional Epoxy Resin System Heat Resistant
E Glass Coated Fiberglass Fabric Unidirectional Epoxy Resin System Heat Resistant
E Glass Coated Fiberglass Fabric Unidirectional Epoxy Resin System Heat Resistant
Specifications
Brand Name :
Skywell
Model Number :
E-300
Certification :
CE
Place of Origin :
China
MOQ :
1 ton
Price :
USD380--1000 PER TON
Payment Terms :
L/C, T/T, Western Union,Paypal
Supply Ability :
10000 m
Delivery Time :
5-10 days
Packaging Details :
6 rolls one paper box
Materials :
100% fiberglass
Yarn type :
E-Glass
Product No :
E-300
Filament Diameter :
17-24um
Resin System :
Epoxy
Product Features :
Compatibility with a multiple of resin systems, low fuzz
HS Code :
70191200
Description

E Glass Coated Fiberglass Fabric Unidirectional Epoxy Resin System Heat Resistant

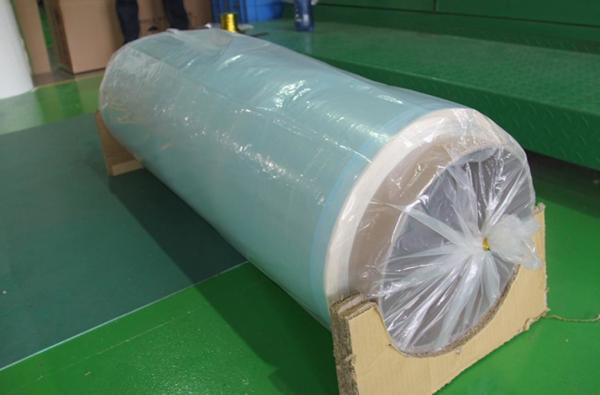

Glass fiber prepreg uses conventional FAW300g plus epoxy resin, conventional length is 100 meters, width is 1 meter, and it is mainly used in sports products, such as golf, ice hockey, and pipes. Without affecting the quality of the product, it can also improve the physical rigidity and toughness of the product. It is a good composite material.

E Glass Coated Fiberglass Fabric Unidirectional Epoxy Resin System Heat Resistant

Technical data sheet:

Item TEX Diameter(um) LOI(%) Mol(%) Vompatible Resin Features
E-Glass Direct Roving for Filament Winding 1103,1200,1985,2100, 2400,4800 17-24 0.40-0.70 ≤0.10 EP Good wet-out, Low fuzz.high strength
E-Glass Direct Roving for Pultrusion 4400 17-24 0.40-0.70 ≤0.10 EP Good wet-out, Low fuzz /Good wet-out high strength

E-Glass Direct Roving for Pultrusion

 300/600/1200/2400 13-24 0.40-0.70 ≤0.10 UP, VE Good wet-out Low fuzz

E-Glass Direct Roving for Weaving

 200/275/300/400/551 /000 13-24 0.35-0.55 ≤0.10 UP VE EP PF Low fuzz,General purpose /Good weaving properties
E-Glass Direct Roving for Weaving 300/600/900/1200/ 1500/2400 13-24 0.35-0.55 ≤0.10 UP, VE, EP,PF Good weaving properties,General purpose

E-Glass Direct Roving for LFT

 400/1200/2400 13-24 0.35-0.55 ≤0.10 PP Excellent process property and good compatibility with resins,LFT-D process

Features:

  1. Excellent package transfer
  2. Good processing charateristics
  3. Fast wet out in thermoset resin systems
  4. Provides strand hardness without sacrificing rapid and complete wet-out
  5. Low resin demand during processing
  6. General purpose sizing

Application:

  • E-glass Direct rovings for weaving are compatible with polyster, vinyl ester, phenolic and epoxy resins.
  • E-glass Direct rovings for weaving are specially used to produce woven rovings used as reinforcement for boats and chemical storage tanks.

Storage:
Unless otherwise specified, fiberglass products should be stored in a dry, cool and moistureproof area.

Room temperature and humidity should always be maintained at -5°C - 0°C
Best used within 12 months after production date. Fiberglass products should remain in their original packaging until just prior to use.

​​

E Glass Coated Fiberglass Fabric Unidirectional Epoxy Resin System Heat Resistant

E Glass Coated Fiberglass Fabric Unidirectional Epoxy Resin System Heat ResistantE Glass Coated Fiberglass Fabric Unidirectional Epoxy Resin System Heat Resistant

E Glass Coated Fiberglass Fabric Unidirectional Epoxy Resin System Heat ResistantE Glass Coated Fiberglass Fabric Unidirectional Epoxy Resin System Heat Resistant
