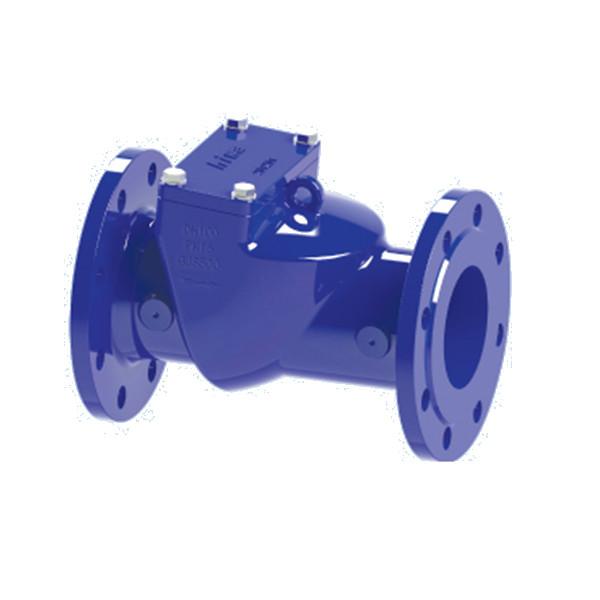

Blue Swing Type Check Valve , DIN Cast Iron Lift Check Valve Check Structure
Blue Swing Type Check Valve , DIN Cast Iron Lift Check Valve Check Structure
Blue Swing Type Check Valve , DIN Cast Iron Lift Check Valve Check Structure
Blue Swing Type Check Valve , DIN Cast Iron Lift Check Valve Check Structure
Specifications
Place of Origin :
Shanghai, China
Brand Name :
HJ
Model Number :
DIN3202
Supply Ability :
50000 Piece/Pieces per Week
Packaging Details :
woden boxes or according to customer's reqirement
MOQ :
>=2 Pieces
Price :
$12.80
Application :
General
Material :
cast iron/stainless steel
Temperature of Media :
Medium Temperature, Normal Temperature
Pressure :
PN10/PN16
Port Size :
DN40-DN800
Structure :
Check
Body material :
Cast Iron
Type :
Normal Colse
Working pressure :
PN10/PN16/PN25
Nominal diameter :
DN40-DN800
Description

Blue Swing Type Check Valve , DIN Cast Iron Lift Check Valve Check Structure

Product Description

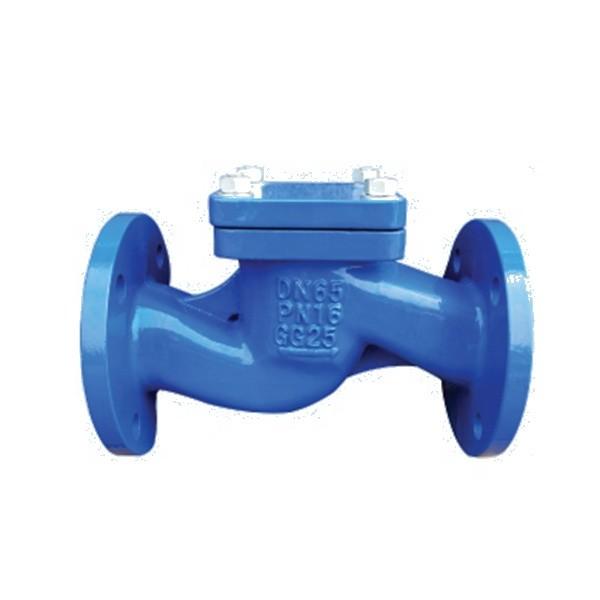

DIN cast iron lift check valve

Dual plate check valve is mainly composed of valve body, valve plate, valve stem and spring and other important parts, and the use of thin lightweight design.Because the closing stroke of the valve plate is shortened and the spring action can accelerate the closing effect, water hammer and water hammer sound can be reduced.

The valve is mainly used in water supply systems, high-rise buildings and industrial areas.Because the distance between its face is shorter than the general check valve, the most convenient place to have installation space restrictions.

Material ASTM A126B/Bronze/Stainless steel/Bronze
Size 1.5''-24''(DN40-DN600)
Pressure PN10,PN15,PN25
Temperature range -20-300 degree C
Connection Butt weld
Sealing PTFE,RPTFE,PPL etc
Production process Investment casting,CNC lathe,Test,Claening,Packing,Storage.
Main products Includes ball valve/butterfly valve/gate valve/strainer/globe valve
Application Suitable for oil piping system,air,steam,water,gas eqipment etc
Delivery details Normal delivery times is from 30 to 45 days or according to the quantities and specifications of each other.

Products show

Dimensions(mm)

* Other available Flange driling kindly refer to the attached Flange Drilling Dimensions.

* Special Stem head dimensions kindly contact with Haiji directly.

*All the specifications can be customized.

Why Choose Us

Our Factory

Our Certifications

Customer visit
