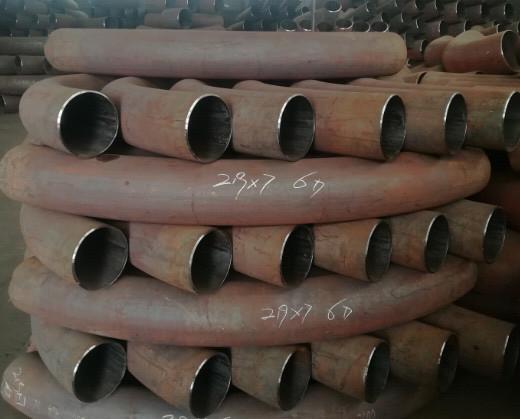

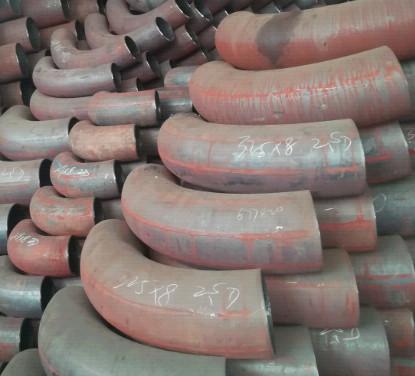

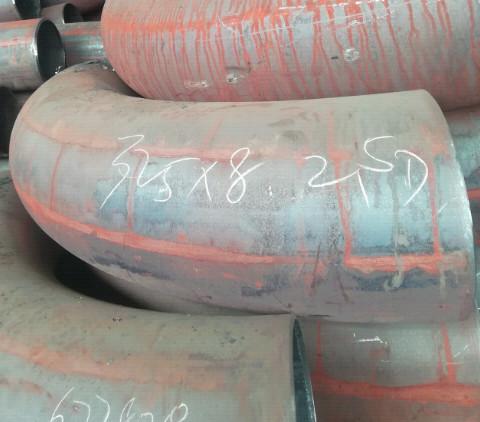

DN15-DN2400 90Deg Carbon Steel Bend Pipe Fittings 3D 5D Elbow Abrasion Proof
DN15-DN2400 90Deg Carbon Steel Bend Pipe Fittings 3D 5D Elbow Abrasion Proof
DN15-DN2400 90Deg Carbon Steel Bend Pipe Fittings 3D 5D Elbow Abrasion Proof
DN15-DN2400 90Deg Carbon Steel Bend Pipe Fittings 3D 5D Elbow Abrasion Proof
DN15-DN2400 90Deg Carbon Steel Bend Pipe Fittings 3D 5D Elbow Abrasion Proof
DN15-DN2400 90Deg Carbon Steel Bend Pipe Fittings 3D 5D Elbow Abrasion Proof
Specifications
Brand Name :
YiHang
Model Number :
1/2"-72"
Certification :
API/ISO
Place of Origin :
China
MOQ :
1 pc
Price :
Negotiate
Payment Terms :
L/C, T/T
Supply Ability :
5000 Tons/Month
Delivery Time :
3-10 Days
Packaging Details :
Wooden box / Pallet
Material :
Carbon Steel
connection :
Butt Weld
Usage :
Joining Pipe Line
Pipe Type :
Seamless or Seam remove
Keyword :
Bend Pipe
Standard :
ASTM A 234,EN
Color :
Black Painted
Size :
DN15-DN2400
Description
90 Deg Carbon Steel Bend Pipe Fittings 3D 5D Elbow Seamless Astm 234 Wpb
Brand Name YiHang
Product Name

90 Deg Carbon Steel Bend Pipe Fittings 3D 5D Elbow Seamless Astm 234 Wpb
Certification /BV/ABS/LR/TUV/DNV/BIS/API/PED
Place of Origin Cangzhou Hebei (Mainland)

Material

ASTM

 Carbon steel(ASTM A234WPB,,A234WPC,A420WPL6.

Stainless steel(ASTM A403 WP304,304L,316,316L,321. 1Cr18Ni9Ti, 00Cr19Ni10,

00Cr17Ni14Mo2, ect.)
Alloy Steel:A234WP12,A234WP11,A234WP22,A234WP5,
A420WPL6,A420WPL3

DIN

 Carbon steel:St37.0,St35.8,St45.8
Stainless steel:1.4301,1.4306,1.4401,1.4571
Alloy steel:1.7335,1.7380,1.0488(1.0566)

JIS

 Carbon steel:PG370,PT410
Stainless steel:SUS304,SUS304L,SUS316,SUS316L,SUS321
Alloy steel:PA22,PA23,PA24,PA25,PL380

GB

 10#,20#,20G,23g,20R,Q235,16Mn, 16MnR,1Cr5Mo,
12CrMo, 12CrMoG, 12Cr1Mo
Standard Specification ASTM,JIS,BS,DIN,UNI etc.
Connection Welding
Shape Equal
Technics Forged
Qualification ISO9001, API,CE
Equipment Pushing Machine,Beveling Machine,Sand Blasting Machine
Thickness Sch10-Sch160 XXS
Size Seamless 1/2" To 24" Welded 24" To 72"
Surface of Finish Antirust Oil,Hot Galvanized
Pressure Sch5--Sch160,XXS
Standard ASME,ANSI B16.9; DIN2605,2615,2616,2617,JIS B2311 ,2312,2313; EN 10253-1 ,EN 10253-2
The third party inspection BV, , LOIYD, TUV, and other party alloyed by clients.
Remark Also can supply IBR fittings and Specialized NACE & HIC Fittings
Marking Registered logo,Heat Number,Steel Grade,Standard,Size
Minimum Order Quantity 1pcs
Supply Ability 3,0000pcs per month
Price Depending on quantity
Special design available as the requirement of customer
Material 90 Deg Carbon Steel Bend Pipe Fittings 3D 5D Elbow Seamless Astm 234 Wpb
Size 1/2"-48"(Dn15-Dn1200)
Standard ANSI/ASTM / JIS / DIN / BS / GB/ GOST
Bending radius(R) R=2D 3D 4D 5D 6D 7D 8D 9D 10D
Bending Angle 15° 30° 45° 60° 90° 135° 180°
Straight length The length between two ends general from 300mm~1500mm
Surface treatment Black painting , anti-rust oil , hot-dipped galvanized
Wall thickness Sch5-Sch160 XS XXS STD
Certificate ISO9001-2000 , SUV ,BG
Payment terms T/T , L/C
Delivery time 10~15 days or as customers’ requirement
Package Seaworthy wooden cases , pallets or as customers’ requirement
Application Petroleum,chemical,power,gas,metallurgy,shipbuilding,construction etc.
Price Very competitive price from direct manufacturer
Sample Available
Notes The bevel can be made according to customers’ special requirements
Remarks Special design is available or as customers’ drawing

Carbon Steel Bend 90 Deg Pipe Fittings 3d Lr Elbow Seamless Alloy 90 Astm 234 Wpb

manufacturer and service provider devoted to best products and service for oil and gas and other energy industries. The company has been implementing API 5CT, API 5L and API 11B, ISO 9001, ISO 45001 and ISO 14001 for many years. The leading products are tubular products including casing and tubing, line pipe, drill pipe, boiler pipe, hydraulic pillar pipe, cylinder pipe and structural pipe etc; pumping equipment and accessories including sucker rod, tubing/sucker rod pump and pumping unit, petroleum accessories and downhole tools; casting & forging parts including large oil ball valve body, mud pump liner and floating valve etc. With the best products, competitive prices and sound technical service, Shandong Molong has been building a long- term and good relationship with CNPC, Sinopec, CNOOC and Yanchang Oil Fields and other national engineering machinery manufacturers in China and TNK-BP, Chevron, KOC, OXY, Rosneft and ADNOC etc in overseas markets. The ultimate goal of Shandong Molong is to develop into a world- class reputable energy resources equipment manufacturer and good service provider by improving the performance of products and constantly providing best products and all- around timely services to the customers at home and abroad.
