Butt Weld Long Radius Sch40 Cs Pipe Elbow Ansi B16.9 90 Degree Black Painting Galvanized
Butt Weld Long Radius Sch40 Cs Pipe Elbow Ansi B16.9 90 Degree Black Painting Galvanized
Butt Weld Long Radius Sch40 Cs Pipe Elbow Ansi B16.9 90 Degree Black Painting Galvanized
Butt Weld Long Radius Sch40 Cs Pipe Elbow Ansi B16.9 90 Degree Black Painting Galvanized
Butt Weld Long Radius Sch40 Cs Pipe Elbow Ansi B16.9 90 Degree Black Painting Galvanized
Butt Weld Long Radius Sch40 Cs Pipe Elbow Ansi B16.9 90 Degree Black Painting Galvanized
Specifications
Brand Name :
SOLID
Model Number :
YH-1
Certification :
API/ISO
Place of Origin :
China
MOQ :
1 pc
Price :
Negotiate
Payment Terms :
L/C, T/T
Supply Ability :
5000 Tons/Month
Delivery Time :
3-10 Days
Packaging Details :
Wooden box / Pallet
Technics :
Forged
Customized support :
OEM
Material :
carbon steel
Applicable standard :
ASME,ASTM,MSS,JIS,DIN,EN
Type :
Seamless/Seam Remove
Nature of company :
Factory
Connection :
Welding, Welded Connection
Color :
Black Oil Galvanized
Usage :
Joining Pipe Lines
Description

ANSI B16.9 Black Painting Butt Weld Long Radius Carbon Steel 90 Degree Carbon Steel Elbow


Advantages And Characteristics

Advantages And Characteristics

Products
Seamless Butt-Welded Carbon Steel Pipe Fittings
Brand: Kingmetal OEM Brand is avaliable
Item
Elbow L/R S/R,Equal Tee,Reducing Tee,Concentric Reducer,Eccentric Reducer,Cap, Bend
Standard
ASME
ANSI B16.9,ANSI B16.28,MSS-SP-75
DIN
DIN2605,DIN2615, DIN2616, DIN2617, DIN28011
SGP
JISB2313
EN
EN10253-1 EN10253-2
Material
ASME
A234 WPB,A234 WP1,A234 WP5,A234,WP9,
A234 WPB11,A234 WPB12,A234 WPB22,WP91,
A420,WPHY42,WPHY52,WPHY60,WPHY65,
WPHY70,WP304,WP304L,WP304H,WP316,
WP316L,WP321,WP347,WP347H
DIN
ST37.0,ST35.8,ST45.8,S235JR,P235GH,P265GH,
10CrMo910,15CrMo,12Cr1MoV
JIS
JIS G3454,STPG370,TPG410
Surface
Black paint/bright paint/Galvanized
Marking
As customer’s requirements
Package
By strong plywood cases
Delivery
Within 30 days
Certificate
PED, ISO9001:2008
Brand Name YiHang
Product Name Thread Elbow
Certification /BV/ABS/LR/TUV/DNV/BIS/API/PED
Place of Origin Shanghai China (Mainland)

Material

ASTM

 Carbon steel(ASTM A234WPB,,A234WPC,A420WPL6.

Stainless steel(ASTM A403 WP304,304L,316,316L,321. 1Cr18Ni9Ti, 00Cr19Ni10,

00Cr17Ni14Mo2, ect.)
Alloy Steel:A234WP12,A234WP11,A234WP22,A234WP5,
A420WPL6,A420WPL3

DIN

 Carbon steel:St37.0,St35.8,St45.8
Stainless steel:1.4301,1.4306,1.4401,1.4571
Alloy steel:1.7335,1.7380,1.0488(1.0566)

JIS

 Carbon steel:PG370,PT410
Stainless steel:SUS304,SUS304L,SUS316,SUS316L,SUS321
Alloy steel:PA22,PA23,PA24,PA25,PL380

GB

 10#,20#,20G,23g,20R,Q235,16Mn, 16MnR,1Cr5Mo,
12CrMo, 12CrMoG, 12Cr1Mo
Standard Specification ASTM,JIS,BS,DIN,UNI etc.
Connection Welding
Shape Equal
Technics Forged
Qualification ISO9001, API,CE
Equipment Pushing Machine,Beveling Machine,Sand Blasting Machine
Thickness Sch10-Sch160 XXS
Size Seamless 1/2" To 24" Welded 24" To 72"
Surface of Finish Antirust Oil,Hot Galvanized
Pressure Sch5--Sch160,XXS
Standard ASME,ANSI B16.9; DIN2605,2615,2616,2617,JIS B2311 ,2312,2313; EN 10253-1 ,EN 10253-2
The third party inspection BV, , LOIYD, TUV, and other party alloyed by clients.
Remark Also can supply IBR fittings and Specialized NACE & HIC Fittings
Marking Registered logo,Heat Number,Steel Grade,Standard,Size
Minimum Order Quantity 1pcs
Supply Ability 3,0000pcs per month
Price Depending on quantity
Special design available as the requirement of customer


Mandrel ProcessButtweld elbows 45 and 90 degrees can be manufactured in different ways, the main ones are the “mandrel process” and the “cold forming” (other methods are the elliptical forming and the double-seam welding method).The three most common types of elbows in piping are the 45, 90, and 180

Cold forming


Manufacter supplis strightly , of good quality and big quantity


Used to the pipes connecting ,

Petroleum, chemical, power plant, gas, metallurgy, shipbuilding, construction, etc

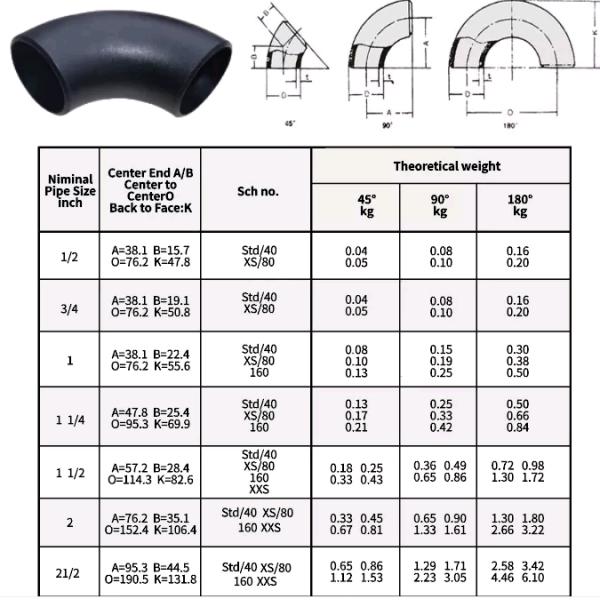

Types & Range

1)ANSI B16.9 SCH 20 Long Radius & Short Radius Elbow 90°,45° and 180° A234 WPB.

2)ANSI B16.9 STD Long Radius & Short Radius Elbow 90°,45° and 180° A234 WPB.

3)ANSI B16.9 SCH 40 Long Radius & Short Radius Elbow 90°,45° and 180° A234 WPB.

4)ANSI B16.9 SCH 80 Long Radius & Short Radius Elbow 90°,45° and 180° A234 WPB.

5)ANSI B16.9 SCH 160 Long Radius & Short Radius Elbow 90°,45° and 180° A234 WPB.

Size Range

1).Seamless Elbows: 1/2" ~ 24" (DN15-DN600)

2).Seam Welded Elbows: 1/2"~72" (DN15~DN1800)

Butt Weld Long Radius Sch40 Cs Pipe Elbow Ansi B16.9 90 Degree Black Painting Galvanized
