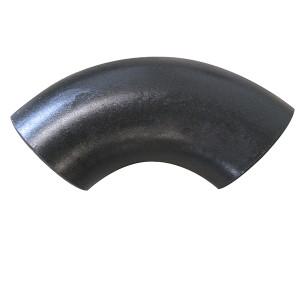

Multiple Carbon Steel Pipe Elbow A234 Astm Forged Fitting Butt Welding
Multiple Carbon Steel Pipe Elbow A234 Astm Forged Fitting Butt Welding
Multiple Carbon Steel Pipe Elbow A234 Astm Forged Fitting Butt Welding
Multiple Carbon Steel Pipe Elbow A234 Astm Forged Fitting Butt Welding
Multiple Carbon Steel Pipe Elbow A234 Astm Forged Fitting Butt Welding
Multiple Carbon Steel Pipe Elbow A234 Astm Forged Fitting Butt Welding
Specifications
Brand Name :
YiHang
Model Number :
Carbon Steel Pipe Fitting
Certification :
API/ISO
Place of Origin :
China
MOQ :
1 pc
Price :
Negotiate
Payment Terms :
L/C, T/T
Supply Ability :
5000 Tons/Month
Delivery Time :
3-10 Days
Packaging Details :
Wooden box / Pallet
Product Name :
Carbon Steel Pipe Elbow
Usage :
Oil Gas Water Industrial
Customized support :
OEM
Material :
carbon steel
Package :
wooden box
Type :
Seamless
Nature of company :
Manufacuturer
Connection :
Welding, Welded Connection
rand Name :
SOLID
Description

ASTM Forged Pipe Fitting Butt Welding Carbon Steel Pipe Elbow

Product Description:

Material: Carbon Steel: ASTM/ASME A234 WPB/WPC; A420 WPL6; ASTM A860 WPHY42/52 /60/65/70/75, ST37.0, ST35.8, ST45.8, 10CRMo910, 15CrMo, 12Cr1MoV,etc;
Alloy Steel: A234 WP1/WP2/WP5/WP9/WP11/WP12/WP22/WP91, etc;
Stainless Steel: A403 WP304/304L; WP316/316L/316H;WP347H,etc.
Size: 1/2"~24"; 26"~96"
Wall Thickness: SCH5S~XXS
Standard: ASTM/JIS/DIN/BS/GB
ASME B16.9, ASME B16.28, MSS SP43, DIN2605,DIN2617,DIN2516,JISB2311,etc; or design as the clients' requests;
Usage:Petroleum, chemical, power plant, gas, metallurgy, shipbuilding, construction, etc


Advantages And Characteristics

Butt welding pipe fittings - Elbow
Standards ASME/ANSI B16.9, ASME/ANSI B16.11, ASME/ANSI B16.28,JIS B2311, JIS B2312, DIN 2605, DIN 2615, DIN 2616, DIN 2617, BS 4504, GOST 17375, GOST 30753, GOST 17378
Bending radius Short Radius(SR), Long Radius(LR), 2D, 3D, 5D, multiple
Degree 45 / 90 / 180, or customized degree
Size Range Seamless type: ½" up to 28"
Welded type: 28"-to 72"
WT Schedule SCH STD,SCH10 to SCH160, XS, XXS,
Carbon Steel A234 WPB, WPC; A106B, ASTM A420 WPL9, WPL3, WPL6, WPHY-42WPHY-46, WPHY-52, WPHY-60, WPHY-65, WPHY-70,
Alloy Steel A234 WP1, WP11, WP12, WP22, WP5, WP9, WP91
Special Alloy Steel Inconel 600, Inconel 625, Inconel 718, Inconel X750, Incoloy 800,
Incoloy 800H, Incoloy 825, Hastelloy C276, Monel 400, Monel K500
WPS 31254 S32750, UNS S32760
Stainless Steel ASTM A403 WP304/304L, WP316/316L, WP321, WP347, WPS 31254
Duplex stainless steel ASTM A 815 UNS S31803, UNS S32750, UNS S32760
Applications Petroleum industry, chemical, power plant, gas piping, shipbuilding. construction, sewage disposal,and nuclear power etc.
Packaging material plywood cases or pallets, or as per customer's requirements
Production Period 2-3weeks for normal orders
Carbon Steel Butt Welded Pipe Fitting 90 Degree Pipe Elbow
Technique
Hot-pushing, welding
Standard
ASME B16.9, ASME B16.28, GOST 17375-2001, GOST 30753-2001, EN 10253
Size
DN 15-DN 2400, 1/2" - 96"
Thickness
SCH 20, STD, SCH 40, SCH60, XS, SCH 80, SCH 160, XXS
2MM-32MM
1.6MM-customized
Pipe Elbow Ends
Beveling
Type
LR pipe elnow
SR pipe elbow
45 degree pipe elbow
90 degree pipe elbow
60 degree pipe elbow
180 degree pipe elbow
customized degree pipe elbow
Surface Treatment
Black Painting, Transparent Anti-rust Oil, Sand Blast
PE/3PE anti-corrosion coating, other customized coating
Material
A234-WPB, steel 20#, A420-WPL6, WP304L, WP316L, WP304, WP316, etc..
Material in Stock
Carbon steel, Mild steel, LTCS, Alloy Steel
Package
Plastic bags, pallets, plywood case, etc
Production Time
3-5 days for stock goods, 15-30 days for one container,
more 10 days for one more container.
Application
Petroleum, Natrual Gas, Water Disposal, Shipbuilding, Nuclear Energy,
Chemical Engineering, Deckle, Electric Power

ASME B16.9 buttweld elbows are manufactured in a wide range of dimensions (combinations of outside diameter and wall thickness) to fit ASME B36.10 and ASME B36.19 carbon, alloy and stainless steel pipes of any size between 2 and 48 inches (and above).

Buttweld elbows below 24 inches in diameter are produced by cutting, heating and bending seamless steel pipes; pipe elbows of larger sizes are manufactured, instead, from welded pipes or steel plates.

The three most common types of elbows in piping are the 45, 90, and 180 degrees (or return elbow), as shown in the image:

Buttweld elbows 45 and 90 degrees can be manufactured in different ways, the main ones are the “mandrel process” and the “cold forming” (other methods are the elliptical forming and the double-seam welding method).

Mandrel Process

Cold forming


Manufacter supplis strightly , of good quality and big quantity


Used to the pipes connecting ,

Petroleum, chemical, power plant, gas, metallurgy, shipbuilding, construction, etc
