Austenitic Steel Strip Coil , Galvanized Metal Strips Mirror Finished Surface
Austenitic Steel Strip Coil , Galvanized Metal Strips Mirror Finished Surface
Austenitic Steel Strip Coil , Galvanized Metal Strips Mirror Finished Surface
Austenitic Steel Strip Coil , Galvanized Metal Strips Mirror Finished Surface
Austenitic Steel Strip Coil , Galvanized Metal Strips Mirror Finished Surface
Austenitic Steel Strip Coil , Galvanized Metal Strips Mirror Finished Surface
Specifications
Brand Name :
JIN LAI
Model Number :
316 316L
Certification :
ISO
Place of Origin :
CHINA
MOQ :
1 ton
Price :
negotiable based on the quantity
Payment Terms :
T/T, Western Union, L/C
Supply Ability :
3500 tons per month
Delivery Time :
within 10 days after received the advance
Packaging Details :
standard seaport packing or as customers' request
Standard :
JIS, AISI, ASTM, GB, DIN, EN
Thickness :
0.1-3mm
Width :
2-1219mm
Technic :
cold rolled
surface :
2B,BA,or as customized
delivery time :
with 15 days
Thickness tolerance :
±5%
Port :
Shanghai
Description

Cold rolled 200 series stainless steel strip 2B bA finish

Type 316L(UNS 31635) is a Titanium stabilized austenitic chromium-nickel stainless steel containing molybdenum. This addition increases corrosion resistance, improves resistance to pitting chloride ion solutions and provide increased strength at elevated temperatures. Properties are similar to those of type 316 except that 316Ti due to its Titanium addition can be used at elevated sensitisation temperatures. Corrosion resistance is improved, particularly against sulfuric, hydrochloric, acetic, formic and tartaric acids, acid sulfates and alkaline chlorides.

Used in Food Industries, Chemical Industries , Electrielcal Industries, Genrater Industries, Shaft Industries, Cement Industries, Gas Industries, Power Project etc..

Stainless Steel 316L Strip Specification

Item Stainless Steel 316L Strip(Hot rolled, cold rolled)
Standard JIS, AISI, ASTM, GB, DIN, EN, etc
Surface the surface and finish of stainless steel 316L Strip:
2B, 2D, BA, NO.1, NO.4, NO.8, 8K, mirror, checkered, embossed, hair line, sand
blast, Brush, etching, etc
Thickness 0.3~10.0mm
Width 1000mm, 1219mm, 1500mm, 1800mm, 2000mm, 2500mm, 3000mm, 3500mm, etc
Length 2000mm, 2440mm, 3000mm, 5800mm, 6000mm, etc
Package Standard export package, suit for all kinds of transport, or as
required.
Export to India, Indonesia Malaysia, Singapore, Saudi Arabia, Qatar, UAE, Iran, Iraq, Oman, South Africa, Nigeria, Kenya, Italy, UK, Brazil, Russia , Egypt , Kuwait , Taiwan, Australia .

STANDARD UNS JIS WERKSTOFF NR. AFNOR BS GOST EN
SS 316L S31603 SUS 316L 1.4404 Z7CND17‐11‐02 316S11/316S13 - X5CrNiMo17-12-2 / X3CrNiMo17-13-3

Stainless Steel 316L Strip Useful Information

316L Stainless Steel Strip Chemical Properties :

C Mn Si P S Cr Mo Ni N
316L
(S31603)		 0.03
max		 2.0
max		 0.75
max		 0.045
max		 0.03
max		 min: 16.0
max: 18.0		 min: 2.0
max: 3.0		 min: 10.0
max: 14.0		 0.10
max

316L Stainless Steel Strip Mechanical Properties :

Grade Tensile Strength
ksi (min)		 Yield Strength
0.2% ksi (min)		 Elongation % Hardness (Brinell) MAX Hardness
(Rockwell B) MAX
316L
(S31603)		 70 25 40 217 95

316L Stainless Steel Strip Physical Properties :

Density
lbm/in3		 Thermal Conductivity
(BTU/h ft. °F)		 Electrical
Resistivity
(in x 10-6)		 Modulus of
Elasticity
(psi x 106		 Coefficient of
Thermal Expansion
(in/in)/°F x 10-6		 Specific Heat
(BTU/lb/°F)		 Melting
Range (°F)
0.29 at 68°F 100.8 at 68 212°F 29.1 at 68°F 29 8.9 at 32 – 212°F 0.108 at 68°F 2500 to 2550
9.7 at 32 – 1000°F 0.116 at 200°F
11.1 at 32 – 1500°F

316L Stainless Steel Strip Application

  • 316L Stainless Steel Strip Used for Architectural trim and molding
  • 316L Stainless Steel Strip Used for Construction material in large buildings
  • 316L Stainless Steel Strip Used for Kitchen benches, sinks, troughs, equipment, and appliances
  • 316L Stainless Steel Strip Used for Chemical containers, including for transport
  • 316L Stainless Steel Strip Used for Automotive and aerospace structural
  • 316L Stainless Steel Strip Used for Food processing equipment, particularly in beer brewing, milk processing, and wine making
  • 316L Stainless Steel Strip Used for Heat exchangers
  • 316L Stainless Steel Strip Used for Woven or welded screens for mining, quarrying & water filtration
  • 316L Stainless Steel Strip Used for Nuts, bolts, screws, and other fasteners in the marine environment
  • 316L Stainless Steel Strip Used for Dyeing industry
Production Process
Austenitic Steel Strip Coil , Galvanized Metal Strips Mirror Finished Surface

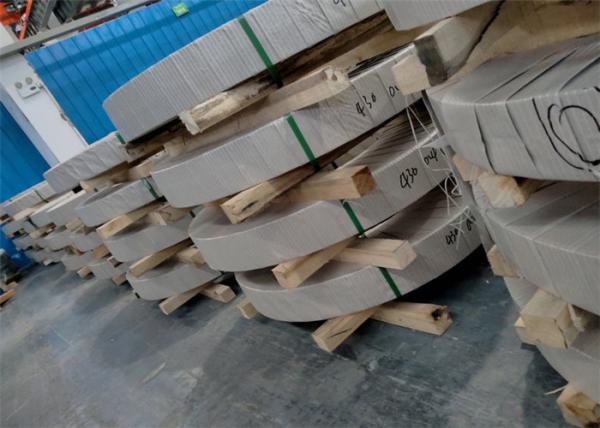

Packing and delivery
Austenitic Steel Strip Coil , Galvanized Metal Strips Mirror Finished Surface
If you have any question, please contact us any time.
