A283 Checkered Carbon Steel Sheet S235jr Mild Alloy Iron Plate 2000mm
A283 Checkered Carbon Steel Sheet S235jr Mild Alloy Iron Plate 2000mm
A283 Checkered Carbon Steel Sheet S235jr Mild Alloy Iron Plate 2000mm
A283 Checkered Carbon Steel Sheet S235jr Mild Alloy Iron Plate 2000mm
A283 Checkered Carbon Steel Sheet S235jr Mild Alloy Iron Plate 2000mm
A283 Checkered Carbon Steel Sheet S235jr Mild Alloy Iron Plate 2000mm
Specifications
Brand Name :
BAO STEEL
Model Number :
Carbon Steel Plate
Certification :
ISO,SGS, CE, RoSH
Place of Origin :
CHINA
MOQ :
10 Tons
Price :
Negotiation
Payment Terms :
L/C, T/T
Supply Ability :
1000Tons per month
Delivery Time :
5-15 DAYS
Packaging Details :
AS REQUIRED
Origin :
China
Brand name :
BAO STEEL
Product Name :
Hot Rolled Checkered Plate S235jr Steel Sheet
Thickness :
5mm,6mm,7mm,8mm
Width :
2000mm
Length :
6000mm
Grade :
Q195,Q235,Q345,SS400,45#
Standard :
GB , JIS, ASTM , AISI , DIN
Description

A36 Hot Rolled Checkered Plate S235jr Steel Sheet A283 A387 Mild Alloy Carbon Iron Sheets

PRODUCT DESCRIPTION

A36 Hot Rolled Checkered Plate S235jr Steel Sheet A283 A387 Mild Alloy Carbon Iron Sheets

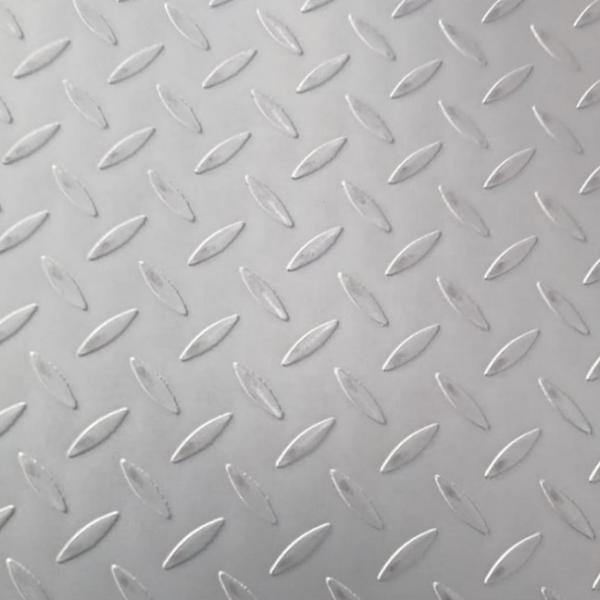

The pattern can be a single diamond, lentil or round bean, or two or more patterns can be appropriately combined into a combined pattern plate.
The pattern mainly plays the role of anti-skid and decoration. The comprehensive effect of the combined checker plate in terms of anti-skid ability, bending resistance, metal saving and appearance is obviously better than that of the single checker plate.
Checkered steel plates are widely used in shipbuilding, boilers, automobiles, tractors, railway cars and construction industries.
Due to the ridges on its surface, the patterned steel plate has anti-slip effect, and can be used as floors, workshop escalators, work frame pedals, ship decks, car bottom plates, etc.
The patterned steel plate is used in workshops, large equipment or the treads of ship walkways and stairs. It is a steel plate with a diamond-shaped or lentil-shaped pattern extruded on the surface.

Product Description :

Product Name Carbon Steel sheets/plate
Size as required
Width 50mm-3000mm or as required
Thickness 10mm-260mm or as required
Standard GB/T1591-2008
Technique Hot rolled
Surface Treatment According to customer's requirement
Thickness Tolerance ±0.01mm~ ±0.25mm
Material Q345
Application Bridges, vehicles, ships, buildings, pressure vessels, etc.
MOQ 1 ton , We can accept sample order.
Shipment Time Within 15-20 workdays after receiving deposit or workable L/C
Export Packing

Waterproof paper, and steel strip packed.Standard Export Seaworthy Package.

Suit for all kinds of transport,or as required
Capacity 250,000 tons/year

A283 Checkered Carbon Steel Sheet S235jr Mild Alloy Iron Plate 2000mm

Chemical Composition :

Grade C Si Mn P S V Nb Ti AL
≤% ≤% ≤% ≤% ≤% % % % ≥%
Q345A 0.20 0.55 1.70 0.045 0.045 0.02-0.15 0.015-0.060 0.02-0.20 /
Q345B 0.20 0.55 1.70 0.040 0.045 0.02-0.15 0.015-0.060 0.02-0.20 /
Q345C 0.20 0.55 1.70 0.035 0.035 0.02-0.15 0.015-0.060 0.02-0.20 0.015
Q345D 0.18 0.55 1.80 0.030 0.030 0.02-0.15 0.015-0.060 0.02-0.20 0.015
Q345E 0.18 0.55 1.80 0.025 0.025 0.02-0.15 0.015-0.060 0.02-0.20 0.015

Physical properties :

Grade Tensile strength (MPa) Yield strength (MPa) Elongation δ5≥(%)
Q345A (thickness≦16mm) 470-630 345 21
Q345B(thickness≦16mm) 470-630 345 21
Q345C(thickness16-35mm) 470-630 ≥325 22
Q345D(thickness35-50mm) 490-675 ≥295 22
Q345E(thickness50-100mm) 490-675 ≥275 22

A283 Checkered Carbon Steel Sheet S235jr Mild Alloy Iron Plate 2000mm

FAQ :

Q1. What are your company's main products ?

A1: Our main products are Carbon Steel, Stainless Steel, Galvanized Steel Sheet, Coil, Tube, Bar, Profile etc.

Q2. How do you control quality ?

A2: Mill Test Certification is supplied with shipment, Third Party Inspection is available. and we also get ISO,SGS,Alibaba Verified.

Q3. What are the advantages of your company ?

A3: We specialise in steel business for years,so we have mature production technology,stable capacit,more competitive price,

we dedicated to strict quality control and thoughtful customer service

Q4. Can you provide sample ?

A4: We can provide the samll samples in stock for free, as long as you contact us.
