excellent tensile strength PC Plastic Sheet 0.04-0.10mm thickness
excellent tensile strength PC Plastic Sheet 0.04-0.10mm thickness
excellent tensile strength PC Plastic Sheet 0.04-0.10mm thickness
excellent tensile strength PC Plastic Sheet 0.04-0.10mm thickness
excellent tensile strength PC Plastic Sheet 0.04-0.10mm thickness
excellent tensile strength PC Plastic Sheet 0.04-0.10mm thickness
excellent tensile strength PC Plastic Sheet 0.04-0.10mm thickness
excellent tensile strength PC Plastic Sheet 0.04-0.10mm thickness
Specifications
Brand Name :
MKarte
Model Number :
MUO-PC
Place of Origin :
China
MOQ :
20000 sheets
Price :
negotiated
Payment Terms :
D/P, L/C, , T/T, Western Union, MoneyGram
Supply Ability :
50000 Sheet/Sheets per Week
Delivery Time :
10-15 working days
Packaging Details :
in reel or 500 sheets per bag/4 bags per paper carton, or as per customer requirements
Size :
in sheet or reel, Size as per customer requirements
thickness :
0.04-0.10mm
Color :
transparent without coating on surface.
Package method :
in reel or 500 sheets per bag/4 bags per paper carton, or as per customer requirements
Storage condition :
Sealed, moisture-proof, room temperature under 40℃, Keep it horizontally, avoid heavy pressing and direct sunlight.
Laser engraving performance :
cannot be laser engraved.
Vicat :
147±2℃)
Surface Dyne :
≥38 dynes/cm
Description

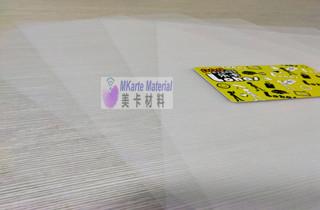

PC Overlay or Polycarbonate Thin Film / Sheet Without Coating for PC card body laminaiton

PC Overlay or Polycarbonate Thin Film / Sheet Without Coating (Model: MUO-PC) is specially produced for PC card body lamination with printed sheets. It has such good features like strong lamination adhesion, excellent tensile strength, wear resistance and high temperature resistance. It is widely used in such cards as anti-fake IC cards, driving license card, transportation card and passport etc.

1.PC Overlay or Polycarbonate Thin Film / Sheet Without Coating - Introduction

excellent tensile strength PC Plastic Sheet 0.04-0.10mm thickness

Brief Introduction:

PC Overlay or Polycarbonate Thin Film / Sheet Without Coating is a new developed environment friendly product which could get excellent peel strength at high temperature. It provides superior aging resistance performance to other similar products, no color change and deformation after lamination.

Characteristics:

　●　Work well at high temperature,no color change with fluorescent ink.

　●　Abrasion resistant , prolong the life of cards.

　●　Environment friendly, no solvent or gas discharged.

Item Specification Test Method
Thickness 40-100um
Thickness tolerance

＞0.5±6um

≤0.5±4um
Density 1.2±0.05 g/cm3 ASTM D792
Surface tension(front) ≥38Dynes/cm ASTM D1922
Surface tension(back) ≥38Dynes/cm ASTM D1922
Shrinkage ＜1.0 ASTM D1204
Vicat 147±20C ASTM D1525
Tensile strength ≥50 N/mm2 ASTM D1922
Surface roughness 0.5um-1.8um

2.PC Overlay or Polycarbonate Thin Film / Sheet Without Coating - Parameters

1). Size: in sheet or reel, A4, A3 or as per customer requirements
2). Normal thickness in mm: 0.04,0.05,0.06,0.08,0.10

3). Color: transparent without coating on surface.

4). Package method: in reel or 500 sheets per bag/4 bags per paper carton, or as per customer requirements.

5). Storage condition: Sealed, moisture-proof, room temperature under 40℃, Keep it horizontally, avoid heavy pressing and direct sunlight.

6). Laser engraving performance: cannot be laser engraved.

Item Unit Value
Density g/cm3 1.20 ±0.05
Tensile Strength Horizontal MPa ≥50
Vertical ≥50
Vicat ℃ 147±2
Surface Dyne dynes/cm ≥38

3.PC Overlay or Polycarbonate Thin Film / Sheet Without Coating - Application

excellent tensile strength PC Plastic Sheet 0.04-0.10mm thickness

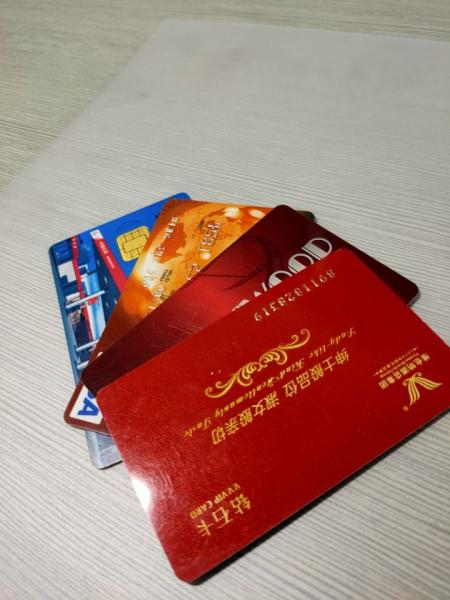

Application :

such as identity card,driving card, passport etc.

Item Parameters
Vicat (℃) 147±2
Shrinkage MD/TD ＜1.0
Tensile Strength (MPa) MD ≥50
TD ≥50
Roughness(μm) Ra 0.58, 1.5-2.1
Ra 3.45
Thickness(mm) 0.04-0.1

◆Laminating Condition:

Laminating Unit Temp(℃) Pressure(MPa) Time (min)
Heat Laminating 140~155 ≥6 25
Cool Laminating ≤25 ≥6 15

4.PC Overlay or Polycarbonate Thin Film / Sheet Without Coating - Packing

◆Packing:

Outer:Carton Inner:PE bag

◆Storage:

Keep package sealed and moisture-proof, room temperature under 40℃

Keep horizontally, avoid oppress heavily and direct sun light.

Stacking height should not exceed one meter.

Shelf life: Two year.

Storage conditions:

Ideal storage conditions under 40℃, Ideal RH 40%. Should not be stored in direct sunlight and avoid major thermal fluctuation, store in original packing. Film should be conditioned a minimum of 24 hours at ambient room temperature.

Recommended use of material within one year of production date.

excellent tensile strength PC Plastic Sheet 0.04-0.10mm thickness
