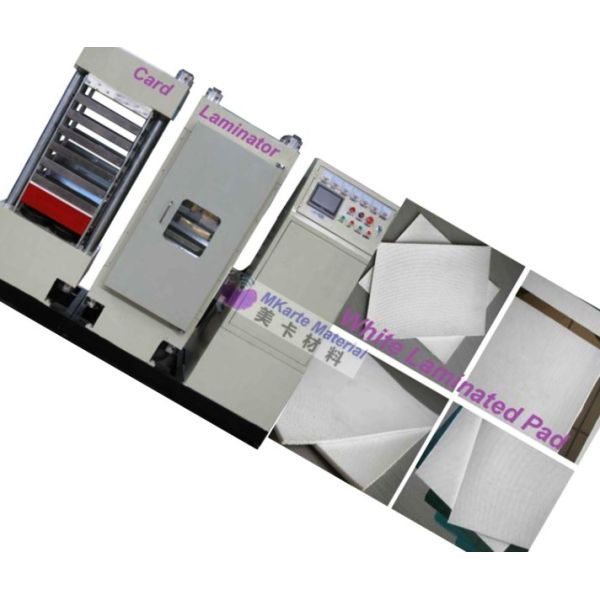

Laminated Pad In White For Hot-press Process in Plastic Card Laminator

Production Specification

Laminated Pad In White is suitable for manufacturing kinds of ISO standard cards, ID cards and smart cards. Raw materials are all for anti-high temperature and anti-high pressure. Meeting the requirements of laminating process, as the professional card consumables, they have been widely using for improving the production efficiency and saving energy because of the feature of thermal conductive fast and uniform. Have excellent bibulous performance, can effectively eliminate the risks of bubbles and watermarks on card surface, greatly improved the qualification rate of products, and with good cushioning properties, they can avoid the scratches linked to the hard touching between the heating plate and the trays, benefited to the long using life of above both.

Laminated Pad In White is designed for the lamination process for various plastic cards including bank card , credit card , and royalty card . It works with lamination steel plate in the plastic card lamination process .

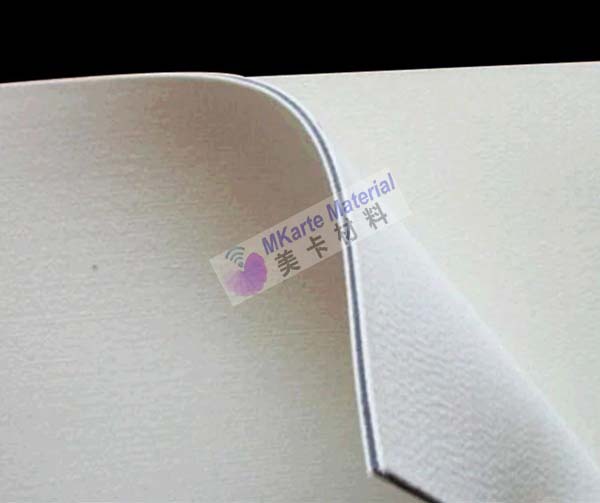

The structure of white silicon cushion pads is white heatproof silicon rubber layers on the surfaces with glass filer in the middle .

Product Parameter :

1. Heatproof performance: 200℃

2. Tensile strength: 80 N/mm

3. Adhesion: 80 N/mm

4. Hardness SHORE A: 55±5

5. Thickness: 3mm

6. Length and width: A4, A3 or custom-made size (size tolerance: ±1mm)

Key Features:

1. It is heatproof with great durability, which can well meet the technological requirements in plastic card lamination .

2. It can transfer heat quickly and evenly , which can improve production efficiency and energy conservation .

3. It has good performance of high temperature resistance and excellent elastic resilience .

4. It has good cushioning performance to avoid the damage and scratching resulting from direct contacting between laminator template and lamination steel plates , which can extend the service life of both lamination steel plates and template .

Detailed Product Description

(1) Silicon rubber cushion
(2) High tensile strength and tearing strength,
(3) Long service life,
(4) Heat resistant up to 250

(5) Product Application: It is used for hot-press , widely used for card laminating or furniture , wooden doors of the pressure paste .

(6) Product specification: 1) thickness: 1.5- 3.5mm 2) maximum width: 3800mm with no joint 3) any length 4) color: white
