Fuji - Xerox Digital Printing PVC Card Material For IC Cards Production
Fuji - Xerox Digital Printing PVC Card Material For IC Cards Production
Fuji - Xerox Digital Printing PVC Card Material For IC Cards Production
Fuji - Xerox Digital Printing PVC Card Material For IC Cards Production
Fuji - Xerox Digital Printing PVC Card Material For IC Cards Production
Fuji - Xerox Digital Printing PVC Card Material For IC Cards Production
Fuji - Xerox Digital Printing PVC Card Material For IC Cards Production
Fuji - Xerox Digital Printing PVC Card Material For IC Cards Production
Specifications
Brand Name :
MKarte
Model Number :
MDP-MG-FX
Place of Origin :
China
MOQ :
30000 sheets or 2 tons
Price :
Negotiable
Payment Terms :
L/C, D/A, D/P, T/T, Western Union, MoneyGram
Supply Ability :
30 thousand pieces per week
Delivery Time :
10-15 work days
Packaging Details :
50 or 100 or 200 sheets per bag, 10 bags per paper carton, and the cartons are piled up and firmly fixed on solid plywood pallets
Size :
A4, A3 or as per customer requirements
Thickness :
0.15mm-0.40mm
Size/ Thickness tolerance :
+/-5%
Color :
snow white/supper white
suitable printers :
whole series of MGI printers.
Vicat softening point :
78±2℃
Heat Laminating :
110~130℃
Density :
1.42±0.05g/cm3
Description

PVC Card Material Fuji-Xerox Digital Printing PVC Core White Applicated in IC Cards Production

1.PVC Card Material Fuji-Xerox Digital Printing PVC Core White - Introduction

Fuji - Xerox Digital Printing PVC Card Material For IC Cards Production

Brief Introduction:

PVC Card Material Fuji-Xerox Digital Printing PVC Core White is suitable for Fuji-Xerox digital printer series. It could be printed directly by digital printers with perfect printing quality.

PVC Card Material Fuji-Xerox Digital Printing PVC Core White , also called electronic ink printing sheet, it is a novel material used for digitization ink printing, and its color is recovered accurately. Printing ink has strong adhesive force, high laminating strength, clear graphic outline, and free from static electricity. Generally, it is matched with tape film for making laminated card.

Characteristics:

　

● Excellent ink adhesion.

● Good printing stability.

● Suitable for the whole series of Fuji-Xerox printers.
● High definition images.

● No crack occurs on the printed images after lamination at high temperature.

2.PVC Card Material Fuji-Xerox Digital Printing PVC Core White - Parameters and Features

Fuji - Xerox Digital Printing PVC Card Material For IC Cards Production

PVC Card Material Fuji-Xerox Digital Printing PVC Core White is developed specially for the whole series of Fuji-Xerox printers.. It could be printed directly by the machine with high precision images, no Topaz coating needed.

It is developed specially for the whole series of Xerox digital printing machines. With excellent printed image, ink adhesion and heat resistance, it is widely used in ID cards and documents production.

Size A4, A3 or as per customer requirements
Thickness 0.15mm-0.40mm
Color white/supper white
Package method 50, 100 or 200 sheets per bag, 10 bags per paper carton, and the cartons are piled up and firmly fixed on solid plywood pallets.
Storage condition Sealed, moisture-proof, room temperature under 40℃

Parameters:

1). Size: A4, A3 or as per customer requirements (tolerance +/-0.5mm)

2). Thickness: 0.15mm-0.40mm (tolerance +/-5%)

3). Coating description: digital ink coating on one side and lamination glue coating on another side.

4). Color: white/supper white

5). Package method: 50/100/200 sheets per bag, 10 bags per paper carton, and the cartons are piled up and firmly fixed on solid plywood pallets.

6). Storage condition: Sealed, moisture-proof, room temperature under 40℃

3.PVC Card Material Fuji-Xerox Digital Printing PVC Core White - Application

Fuji - Xerox Digital Printing PVC Card Material For IC Cards Production

Using Method:

Printed directly by the whole series of Fuji-Xerox printers.

Item Parameters
Surface Clean and flatness
Dimensional Tolerance (mm) ±1
Angle Cut Tolerance(mm) ±1
Diagonal Difference(mm) ≤1.2
Thickness Tolerance(mm) ±10%

Laminating Unit Temp(℃) Pressure(MPa) Time (min)
Heat Laminating 110~130 ≥8 20
Cool Laminating ≤40 ≥8 20

4.PVC Card Material Fuji-Xerox Digital Printing PVC Core White - Inspection & Packing

Fuji - Xerox Digital Printing PVC Card Material For IC Cards Production

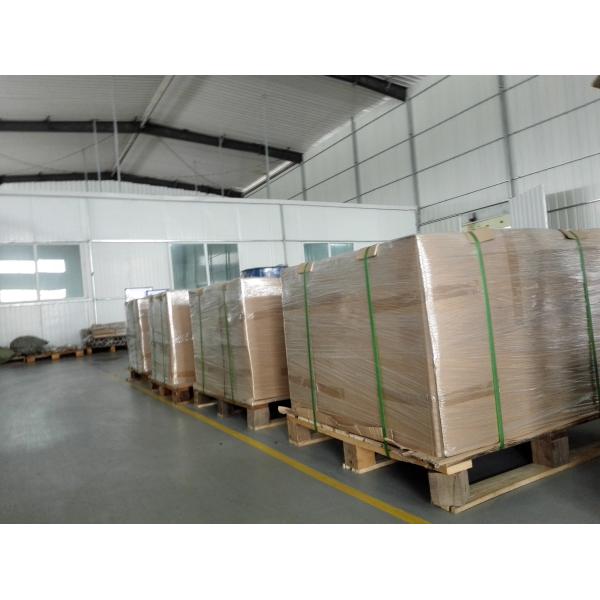

Packing:

Outer:Carton Inner:PE bag

Storage:

Keep package sealed and moisture-proof, room temperature under 40℃.

Keep horizontally, avoid oppress heavily and direct sun light.

Stacking height should not exceed one meter.

Shelf life: One year.

Product Test Report
Product Name: PVC Digital Printing Sheet
Inspected Items Unit Inspection Standard Test Result
Appearance 　 The color is even,
No black impurity spots,
No obvious scratch		 Meet the requirements
Length mm ±1 OK
Width mm ±1 OK
Thickness mm ±10% OK
Squareness mm/m ≤1 0.4
Density g/cm3 1.42±0.05 1.41
Chromatic aberration ∆E ≤1.0 0.51
Pulling Strength MD MPa ≥45 47
CD ≥43 43.1
Roughness
Ra		 4# ṷ m 0.7～1.8 1.28
5# ṷ m 0.7～1.8 0.97
Roughness
Rz		 4# ṷ m 4～12 7.912
5# ṷ m 4～12 6.91
Surface Tension 4# Dynes/cm ≥34 34.5
5# ≥34 34
Heating shrinkage rate MD % ≤-6.0 -2
CD ≤+2.2 0
Whiteness 　 　 　 96.2
Transmittance 　 % 　 5.5
Vicat softening point 　 ℃ 78±2 78.9
