Intelligent 7.2T Automatic Flute Laminating Machine For Corrugated Carton
Intelligent 7.2T Automatic Flute Laminating Machine For Corrugated Carton
Intelligent 7.2T Automatic Flute Laminating Machine For Corrugated Carton
Intelligent 7.2T Automatic Flute Laminating Machine For Corrugated Carton
Specifications
Brand Name :
AD
Model Number :
AD- Automatic flute Laminating Machine
Certification :
ISO CE ISO9001
Place of Origin :
China
MOQ :
1
Price :
1220
Payment Terms :
D/A, T/T, Western Union
Supply Ability :
1000sets
Delivery Time :
35 days
Packaging Details :
as per need
Automatic grade :
Automatic flute Laminating Machine
Weight :
5T, About 3T, 450Kg, 3 Ton, 230kg
Driven type :
Electric, Pneumatic, Hydraulic, Mechanical
After-sales service provided :
Engineers available to service machinery overseas, Online support, Video technical support, Field installation, commissioning and training
Type :
Laminating Machine, high speed semi-automatic flute laminating machine, laminating machine and flip flop machine
Application :
Machinery & Hardware, Food, Commodity, Medical, Beverage
Voltage :
380V, 380V/50HZ, 220/380V, 380V/220V, 220v
Condition :
New
Dimension(l*w*h) :
7100*1850*1250, 30*3.5*3m, 12000*2550*2655mm, 11.5x2x2.4M, 6000mm*1800mm*2000mm
Packaging material :
Wood, Paper, Plastic, Metal, Glass
Description

Fully Automatic Intelligent High Speed Flute Laminating Machine

Product Parameters

Fully Automatic Intelligent High Speed Flute Laminating Machine
Max size 1450*1300mm
Min size 350mm*350mm
Speed 0-100m/min
Total power 12kw
Overall size 12.0m*2.40m*2.655m
Weight 7.2T

Paper request

Bottom paper : 350-800 800g/m2

Max thickness: 10mm
Face paper : 180-800 g/m2
Product Display

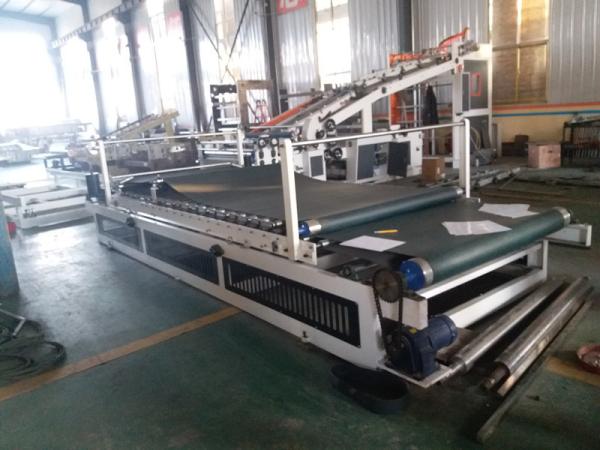

Intelligent 7.2T Automatic Flute Laminating Machine For Corrugated Carton

Intelligent 7.2T Automatic Flute Laminating Machine For Corrugated CartonIntelligent 7.2T Automatic Flute Laminating Machine For Corrugated Carton

Machine Character

1,Adopt unique press spring type FRONT LAY design which low rate of break down And with intelligent control can laminate paper in right position.

2,Adopt frequency convertor for speed regulation , PLC control , run and control rightly .

3,Double servo control are used to make bottom paper send to front lay timely and accurately . to promise machine working accuracy when machine run.

4,Glue roller and doctor roller work together to improve homogeneity of glue . will low cost glue for customer.

5,Steel roller through balanced processing and testing, with tight assembly process effectively improve the mechanical stability, combined with the main transmission . adopts the timing belt drive, bottom paper suction feeder directly, effectively improve the precision and speed of mechanical operation.

6,Glue level control system , automatic glue recycle , reduce worker labor.

7,Material are used for this machine according to ISO 90001 . good quality material , key part like bearing is imported. Electric part used all world famous brand and China well-known brand.

8,Self-develop high strength feeder compliant with high configuration electric system.

9,Suit 150-450 gsm face paper with A,B,C,D,,E,F flute 3 ply, 5ply cardboard (thickness less than 8mm )

Suzy yu (Sales Dept.)
Cangzhou Aodong Light Industry Machinery EQUIPMENT Co.,Ltd
Cangzhou City, Hebei Province China
Mob:+86-15903176289
E-mail:suzy@aodongpack.com
QQ:174996398
Wechat:15903176289
