No.

Name

Qty(set)

Note

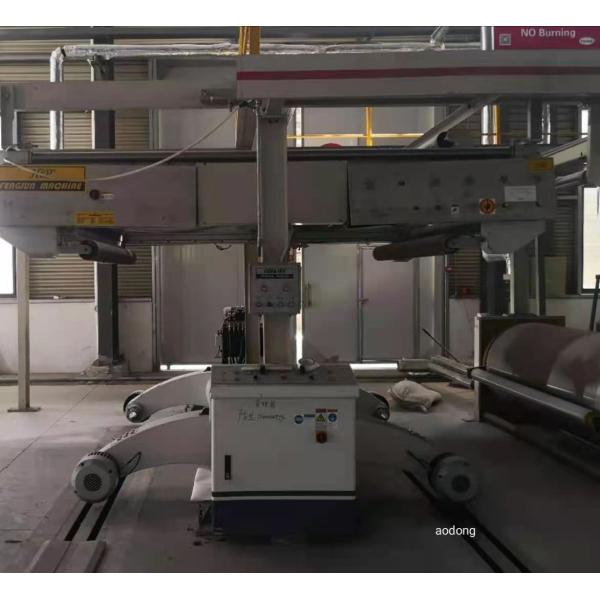

hydraulic mill roll stands(including 5 carriage and 10rails)

1.Hydraulic drive, to be completed by paper lift, clamp, loosen, move the pair.
2.Multi-point type brakes,pneumatic tension adjust paper tension,bulge style chuck,
3.Max single arm load weight:3 ton;

Automatic splicer machines

Size;1800mm
Brand: HIP

Preheaters 900mm diameter

1.Main drive roller:Φ900mm,electric adjust wrap corner,
2.Paper wrap angle adjust scope:60-270 degrees;

Single facer machines(C flute,B flute)

1.Roller is 320,Material tungsten roller ,cardon drive;
2.Electric adjust glue width;
3.Manual adjust glue gap;
4.Pneumatic for glue supply, automatic recycled;
5.Adopt individual gear box with gimble drive;
6. Flute type: B,Cflute available;

Three layer pre-heater-
Grounding type

1.Main drive roller:Φ600mm,grounding type,
Electric adjust wrap corner, adjust scope:60-270 degrees;
2.grinding and chrome plated

Over transport bridge

1.Adsorption type tension control,
2.Electric motion deflection-corrected,easy operation;

Two layer -secondary gluing machine(PLC automatic gluing control)

1.PLC touch screen,electric adjust glue gap;
2.Independent variable frequency motor drive;

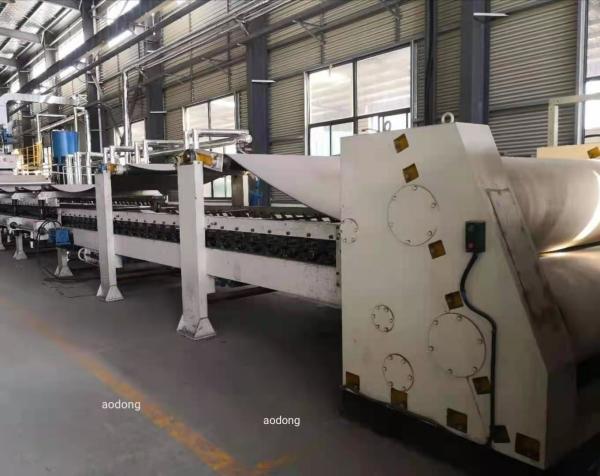

Double baker machine
(hot unit)

Shengyang cotton belt,up and down two

5. Adopt quality conveyor belt ,Shenyang produced,
good permeability, high temperature resistant.
6.Upper and lower belt included;

computer high-speed zero creasing thin blade knife machine

1.Adopt five-knives eight-scorers;
2.Automatic tracking of orders, all computer-controlled, thin tungsten alloy blades;
3.Replace order to adjust the knife, time is 3-8 seconds;
4.The cutter wheel and creasing wheels are controlled by pneumatic rising, orders do not have to replace cardboard cut;
5.The patented sharpening system is not broken knife and extended blade life, can be achieved manually sharpening and automatic sharpening.
6. Equipped with automatic clear stripping device;

Computer high-speed cut off machine,
speed 180m/min

1.Design speed: 200m/ min,effective width: 1800mm;
2.Cutting length:500-9999mm,cutter precision:1mm uniform
3.The computer can store multiple orders, HMI separate color,PLC touch screen display
4.Adopt Shanghai Tomita 11KW AC servo motors and servo drives 15KW Bryant Germany;
5.Use high-speed steel spiral inlay blades, serrated knife, reducing cardboard resistance, low noise;

Gantry type stacker

A set of glue making system

All pipelines,valves and water delivery valves below the line

Air control system(including 2 sets storage tanks)

waster water recovery system.
