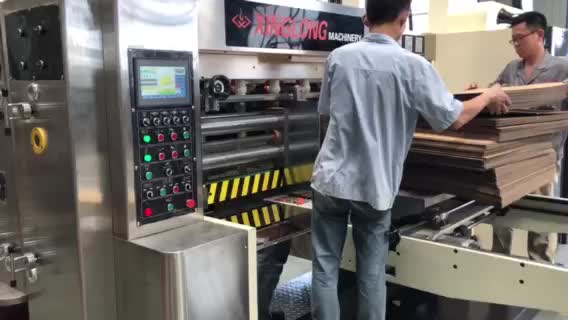

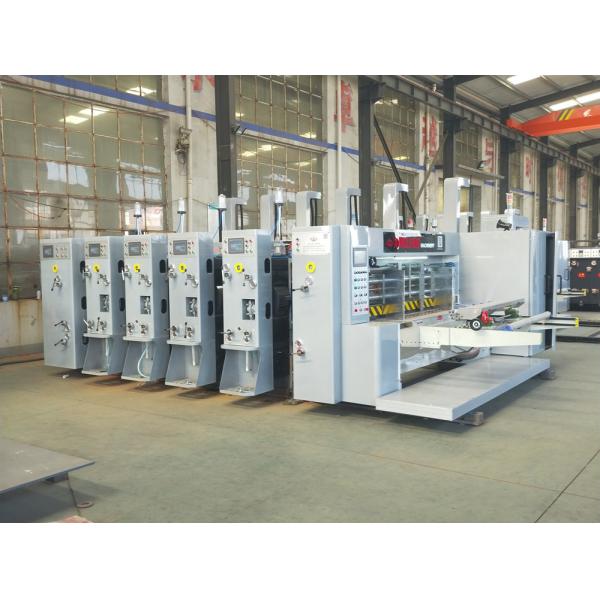

Customized Flexo Printing Slotting Die Cutting Machine Paperboard Processing
Customized Flexo Printing Slotting Die Cutting Machine Paperboard Processing
Customized Flexo Printing Slotting Die Cutting Machine Paperboard Processing
Customized Flexo Printing Slotting Die Cutting Machine Paperboard Processing
Specifications
Brand Name :
AD
Model Number :
printing machine
Certification :
ISO CE SGS
Place of Origin :
China
MOQ :
1
Price :
15000
Payment Terms :
L/C, D/P, D/A, T/T, Western Union
Supply Ability :
1000sets
Delivery Time :
35 days
Packaging Details :
Cartons, Film, Case, Bottles, Belt
Voltage :
380V, 220V/380V, 220V/380VCan be customized according to the customer, 220v, 380V/220V
Condition :
New
After-sales service provided :
Engineers available to service machinery overseas, Online support, Video technical support, Field maintenance and repair service, Free spare parts
Weight :
3500kg-7500kg, 3 tons, 6300x3300x2700, about 100tons, 1600KG
Dimension(l*w*h) :
5450*1000*1800mm, 3800 mm*2400 mm*2300mm, 45*3*5m, 4200*1400*1500MM, as real
Warranty :
1 Year, 12 Months, One Year Guarantee, 3 years
Type :
Packaging Line, Feeding paper to corrugation machine/single facer, Corrugated Sheet Shredder, New type, Absorb type
Application :
Machinery & Hardware, Commodity, Food, Chemical, Beverage
Automatic grade :
Automatic, Semi-Automatic
Driven type :
Electric, Hydraulic, Mechanical
Packaging material :
Plastic, Wood, Paper, Metal, corrugated cardboard blade slitter scorer machine
Packaging type :
Cartons, Film, Case, Bottles, Belt
Name :
5, corrugated cardboard blade and corrugated slitter scorer machine, Kraft Paper Making Production Line Paper Mill Machinery, Corrugated paper making machine, 5 ply fully automatic box corrugated cardboard making machine price
Power :
7.5kw, about 100kw, 25kw-50kw, 41KW, custom
Color :
Any color, White and grey, Customized, yellow, red
Power(w) :
320 KW, 37kw, 11kw, 200kw--230kw, 2.2KW
Product name :
corrugated cardboard production line carton box making machine, Kraft Paper Roll Corrugated Cardboard Making Machine, 2 ply corrugated paperboard production line, Semi Automatic Corrugated Paper Cardboard Slitting Machine, fingerless single facer corrugati
Keywords :
single facer machine, Semi Automatic Thin Blade Slitter, Paper corrugation cardboard production line, Corrugated Cardboard Production Line Machine Single Facer, 3 5 7 ply corrugated cardboard production line
Usage :
Making Carton, Paper corrugation, Corrugated Box, CORRUGATING CARDBOARD
Description

full automatic high speed Corrugated Carton Board Flexo Printing slotting die cutting Machine

Main mechanisms performance
1. Adopt lead edge feeding system . Adjust wind volume according bending degree to ensure feeding paper smoothly 2. The rubber
roller with air cylinder device ,feeding accurately , stably , not destroy paperboard strength if the feeding space is very small.
3. The left and right side baffles adopt electric control with data display(options: pneumatic lifting device ) the back baffle
box adopt electric adjustment , the front baffle space by manual adjustment.
4. Equipped with colors touch screen take 360 degree set to die roller , display product speed and set production quantity .
5. The rubber roller adopt mechanical control the position move left and right .the movement distance is 40mm.
6. The space of rubber roller with die roller adopt automatic looking device .and with air cylinder can adjust quickly ,reduce
rubber wear ,prolong use lift.
7. With speed compensation device make rubber roller rotate with die roller ,make the surface speed of the rubber cushion is
completely controlled by dies .The shape of the carton will absolutely equal to the dies.
8. With rubber repair device ,the rubber can be used after repaired.
9. All of rollers are made of good quality steel .Surface be grinded ,tempering,hard chromed plate.
10. Drive roller used good quality alloy steel ,after heat treatment ,be grinded .Gear closed cycle spray lubrication ,automatic
balance engine oil device ,keep every unit oil level is equal.
11. Main motor use frequency converter adjustment.
Product Paramenters
model
FAY1224
feed type
light pressur lead edge
design speed
200 pcs/min
working speed
160-180 pcs
power
30kw
Printing precision
+-0.5mm
Wall thickness
50mm
Max feeding paper siz(mm)
1200*2400
Max effective printing size(mm)
1200*2200
printing roller dia.
410mm
certificate
CE,BV

Product Information
Product Information
Dongguang Chenxiang Machinery Co., Ltd
Item 40-24 model type
Wallboard medial width 2400mm
The diameter of the anilox 400 mm
Max feeding paperboard size 1200 mm * 2400 mm
Max effective printing size 1200 mm * 2200 mm
Min process paperboard size 450 mm * 550 mm
Thickness of the printing plank 7.2 mm
Working speed 200 pieces / min
Precision of the printing ±0. 75 mm
Printing rolling axle circle-oriented regulating 360 degree revolving
Printing rolling axle-oriented regulating +/-10mm

Main features

1.printer slotter phase :electric number digital adjust

2. auto ink circulation system

3. combined slotting creasing slitting knives which is easy to change order.

4.The gear of the machine: Auto lubrication with oil

5.Machine body thickness:50mm

6.automatic seperated, pneumatic lock up.
