Pneumatic Locking Cardboard Box Printing Machine , 4 Color Flexo Printing Machine
Pneumatic Locking Cardboard Box Printing Machine , 4 Color Flexo Printing Machine
Pneumatic Locking Cardboard Box Printing Machine , 4 Color Flexo Printing Machine
Pneumatic Locking Cardboard Box Printing Machine , 4 Color Flexo Printing Machine
Specifications
Brand Name :
AODONG
Model Number :
AODONG- 3247
Certification :
IOS9001
Place of Origin :
CN
MOQ :
1 sets
Price :
36000 usd
Payment Terms :
L/C, D/A, D/P, T/T, Western Union, MoneyGram
Supply Ability :
15 sets per month
Delivery Time :
35 days
Packaging Details :
wood
Type :
Flexographic Printer,Carton Box Printing Machine,automatic,WY-P4
Automatic grade :
Automatic,Full-Atuomatic,Semi-Automatic,Full-computerized
Voltage :
380V,220V/380V/440V,380V 50hz 3phase
Warranty :
2 Years
After-sales service provided :
Engineers available to service machinery overseas,Field maintenance and repair service,Online support,Video technical support,Field installation
Applicable industries :
Manufacturing Plant,Printing Shops,Food & Beverage Factory,Construction works ,Building Material Shops
Usage :
Paper Printer,Card Printer,Bill Printer,Label Printer,corrugated paperboard printing
Condition :
New
Plate type :
Letterpress,Flatbed Printer,Gravure,resin
Weight :
Machine model
Color & page :
Multicolor,Two Colors,5
Application :
Carton Box Making Machine,Corrugated Carton Box
Color :
Requirements
Name :
Flexo Ink Corrugated Carton Flexo Printing Machine,flexo printing slotting die cutting machine,Chain Feed Flexo printing slotter die cutter/Carton box making machine,two colors printing die-cutter machine,multi color ink printing receiving paper machine
Product name :
Slotter Die Cutting Machine,Automatic High Speed High Definition Printing Machine,Printing Machine,printing slotting die-cutting folder gluer line,Printing Slotting Die Cutting Machinery
Machine type :
carton Printing Machine,Paper pulp molding machine,Carton Packaging machinery,High Speed Flexo Printing Machine
Colors :
Multicolor
Description

Corrugated Cardboard 4 Color Flexo Printing Machine

Product Paramenters
Below are the standard dimensions for our machine. We can also customize the machine according to your requests.
Please feel free to contact our sales if there is a need.
Specification
Max. Sheet (mm)
Min. Sheet(mm)
Max. Printing(mm)
 Speed(pcs/min)
cardboard thickness(mm)
DHY-SS920
900x2000
260x600
880x1800
 0-80
1.5-11
DHY-SS1224
1280x2400
350x710
1260x2200
 0-80
1.5-11
DHY-SS1424
1360x2400
360x710
1360x2200
 0-80 1.5-11
DHY-SS1624
1580x2400
420x710
1580x2200
 0-70
1.5-11
DHY-SS1626
 1580x2600
420x710
1580x2400
 0-70
1.5-11
DHY-SS1826
1800x2600
420x740
1800x2400
 0-70
1.5-11
DHY-SS2128
2100x2800
450x800
2100x2600
 0-60
1.5-11

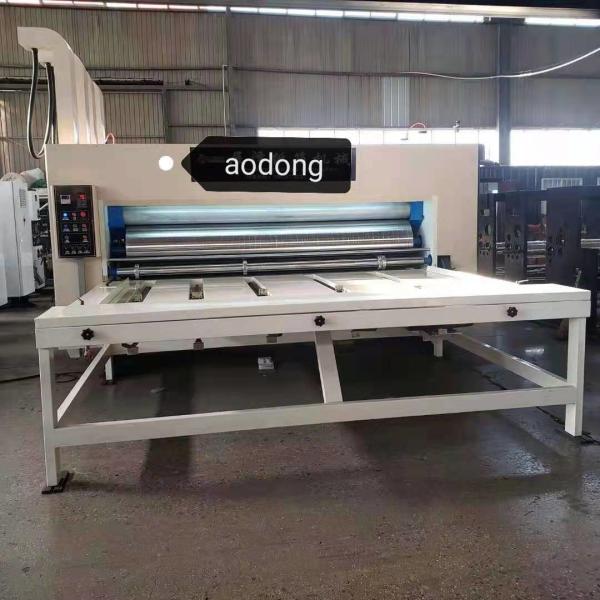

The semi automatic rotary printer slotter die cutter machine is for corrugated cardboard printing and converting.


The machine can do the semi automatic feeding, printing, slotting, die cutting in one process.

It has a manual feeding system, the operator need to feed the cardboard one by one.

You can also add a auto feeder mechanism to achieve automatic feeding to save labor costs.

A stacker can be added to collect the finished cardboard.

Suitable for 3/5/7 layer corrugate cardboard( as well as E flute paper board.)

MAIN FEATURES

1.Open & close type units combination, electrically open and close, pneumatic locking.

2.Chain feeding system, high automation level.
3. This machine adopts the features of the similar machines abroad, upgraded especially the structure of the plate changing, ink
supply, paper transmission etc.,achieves mechanical-electrical integration.

4. Printing, slotting, die cutting adopts electrical motorized adjusting at 360 degree.

5. Anilox roller equipped with automatic pneumatic lifting system and automatic idling system.
Anilox roller contact with the plate roller when feeding starts.
Anilox roller separate with the plate roller when feeding stops.

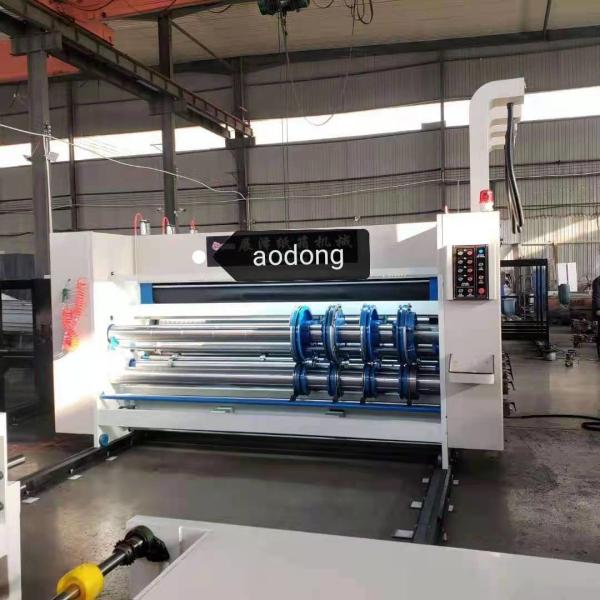

6. 4 sets of knives for slotting and corner cutting. Manual adjustment for the carton height and the horizontal and vertical movement of the knives. Slotting knives and creasing wheels are united moved.

7. Die cutting rubber cushion roller has cutting and repair mechanism. The rubber dressing can be used repeatedly.
A speed difference-off setting device is adopted that can automatically adjust the rotation speed of the rubber roller so that the die cutting carton has exactly the same shape as the die shape.
