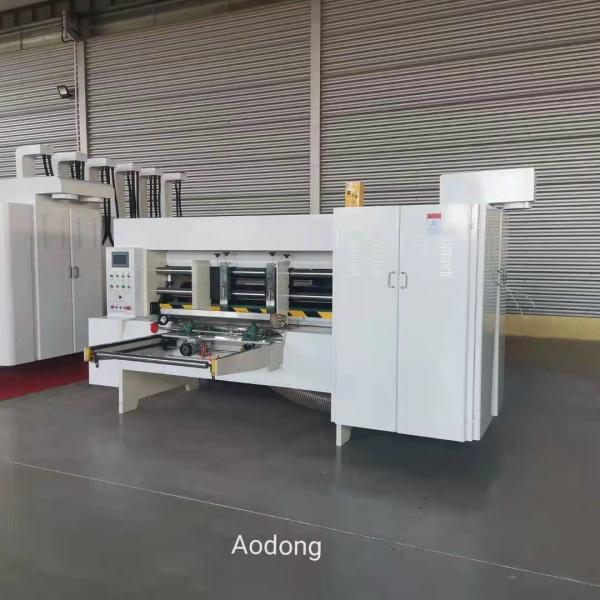

Automatic Corrugated Paperboard Carton Box Flexo Slotter Printing Making Machine In China



Lead Edge Feeding

1. Electric control machine from the alarm bell, continuous ringing warning, to ensure the safety of workers
2. Drive shaft with friction clutch, to avoid misuse and damage to the machine.
3. Pneumatic interlock device.
4. The host motor starts the protection device. (The machine is not locked, the host can not start running)


Printing department

Printing roll (plate roll)
1. Diameter of ¢ 468 mm (with diameter of ¢ 480 mm).
2. High-quality steel surface grinding, axial reference scale, hard chrome plating.
3. Do the balance correction, smooth operation, to adapt to high-speed operation.
4. Ratchet fixed scroll plate, with hanging plate ditch, to adapt to the rapid version of the installation convenient and quick.
5. Full version of hanging slot, for 10 mm hanging version of the article
6. Printing roller axial manual traverse, the maximum movement of 10mm.
Printing press roll
1. Diameter of ¢ 155 mm.
2. The use of high-quality seamless steel pipe surface grinding, dynamic balance correction, smooth operation, hard chrome plating
3. Printing pressure roller cross slider-type dial to manually adjust the adjustment range of 0 to 12 mm. Adjustment does not affect Gear clearance to ensure transmission accuracy.

Feed the upper and lower rollers

1.On the roll: diameter ¢ 86 mm seamless steel pipe, with three paper feed ring.
2.The next roll: diameter ¢ 155 mm seamless steel pipe, surface grinding, hard chrome plated
3.Feeding roller cross slider-type dial dial manually adjust the adjustment range of 0 ~ 12 mm. Adjustment does not affect teeth Wheel clearance, to ensure transmission accuracy.

Steel anilox roller rubber roller set ink system

1. Diameter of ¢ 176 mm. Dalian roller .
2. Steel surface grinding, repression reticulate, hard chrome plating.
3. Balance correction, smooth operation.
4. Mesh number is 180,200,220,250 lines / inch selection. Option ceramic roller 300line/inch
5. Tth the feed system pneumatic automatic lifting device. (When feed paper pr the anilox roller is lowered and touched with print plate ,stop feed paper anilox roll is up and the plate is separated)
6. Anilox roller with wedge-type clutch, even ink, easy to clean ink.
7. Rubber roller diameter ¢ 168 mm.
8. Steel pipe surface wrapped with wear-resistant rubber, and do the balance
9. Rubber in the special high grinding, ink transfer effect is good. Quick clearance fine-tuning self-locking device to ensure uniform ink. The amount of uniform ink system, the conversion effect is good, to extend the life of rubber roller.

Slotter Part

1. Slot knives 7mm use ally steel material after heat treatment ,grinding , teeth
model knives .
2. Slot phase adopt the gear structure 360degree electrical digital number adjustable , running and stop all can all can adjust
3. Slot seat and creasing wheel and precreasing wheel transverse adopt manual adjust


Die cutting

Wooden die roller (lower roll)
1.Outside diameter ¢ 430mm (without cutter).
2.Cast iron surface grinding, hard chrome plating, balance correction, increase operational stability.
3.Die fixed screw hole spacing, axial 100mm; radial 18 equal parts. Applicable tool height 25.4mm.
4.Wood template thickness: 16mm (for three-layer paperboard) 13 mm (for five-layer
paperboard)
5.Diameter of ¢ 388.9mm, aniv cover 420mm

6.Quick change type pad, wear resistance, long life.
7.Cast iron surface grinding, hard chrome plated.
8.Balance correction, increase operational stability.
9.Pad thickness of 9m. Width 250mm. Mechanical type transverse 40mm swimming device. (Adjustable swimming speed)
