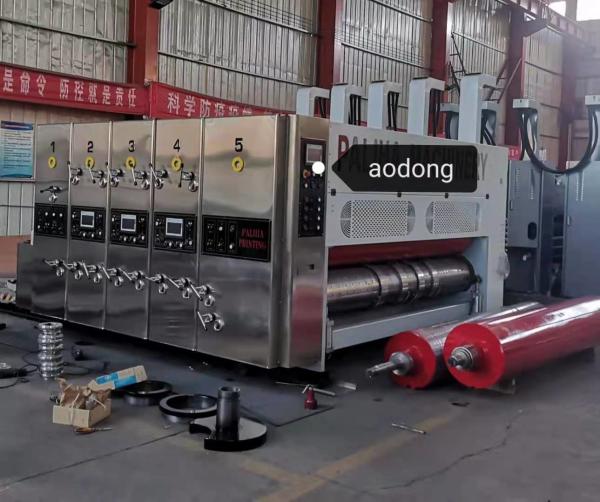

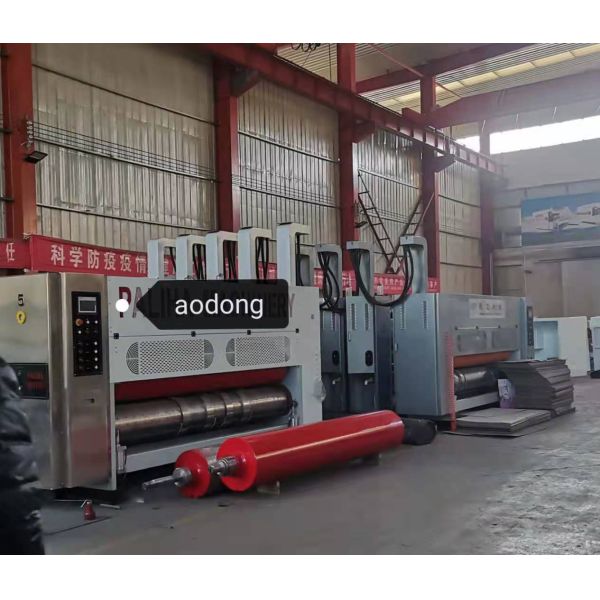

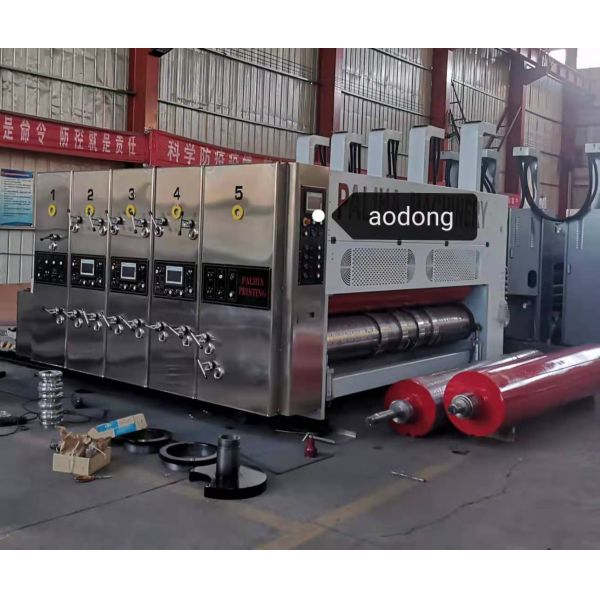

4 Color Flexo Printing Slotting Die Cutting Machine 2 Year Warranty
4 Color Flexo Printing Slotting Die Cutting Machine 2 Year Warranty
4 Color Flexo Printing Slotting Die Cutting Machine 2 Year Warranty
4 Color Flexo Printing Slotting Die Cutting Machine 2 Year Warranty
Specifications
Brand Name :
aodong
Model Number :
aodong- 727
Certification :
iso9001
Place of Origin :
CN
MOQ :
5 sets
Price :
100 usd
Payment Terms :
L/C, D/A, D/P, T/T, Western Union, MoneyGram
Supply Ability :
10 sets per month
Delivery Time :
35 DAYS
Packaging Details :
woods
Type :
Flexographic Printer,Carton Box Printing Machine
Automatic grade :
Semi-Automatic
Voltage :
220V/380V/440V
Warranty :
2 Years
After-sales service provided :
Engineers available to service machinery overseas,Field maintenance and repair service,Online support,Video technical support,Field installation
Applicable industries :
Manufacturing Plant,Printing Shops,Food & Beverage Factory,Construction works ,Building Material Shops
Usage :
Paper Printer,Card Printer,Bill Printer,Label Printer,corrugated paperboard printing
Condition :
New
Plate type :
Letterpress,Flatbed Printer,Gravure,flexo,resin
Color & page :
Multicolor,Two Colors
Speed :
200PCS/min
Application :
Carton Box Making Machine,Corrugated Carton Box
Color :
optional,Any color
Name :
Flexo Ink Corrugated Carton Flexo Printing Machine,flexo printing slotting die cutting machine,Chain Feed Flexo printing slotter die cutter/Carton box making machine,two colors printing die-cutter machine,multi color ink printing receiving paper machine
Product name :
Slotter Die Cutting Machine,Automatic High Speed High Definition Printing Machine,Printing Machine,printing slotting die-cutting folder gluer line,Printing Slotting Die Cutting Machinery
Machine type :
carton Printing Machine,Paper pulp molding machine,Carton Packaging machinery,High Speed Flexo Printing Machine
Colors :
Multicolor
Description

Carton Machinery Manufacturer Automatic 4colors Printing Slotting Machine

1. Technical data

Type Unit ZYM-1024
Design speed Pcs/min 120
Working speed Pcs/min 80-120
Max paper coverage mm 1000*2400
Effective printing area mm 1000*2400
Min finish size mm 350*600
cardboard thickness mm 2-12
Wall thickness mm 50mm
Feeding tolerance mm ±1
Print tolerance mm ±0.5
Slotting accuracy mm ±1.5

2. Machine details

Feeder unit

Individual feeder system ,it is very steady when machine running ,and it is easier to adjust.

Touch screen available ,size input by screen or buttons based on operator needs.

Four rollers for feeding, upper two rollers wrapped with rubbers which can keep the flute in good shape, not destroyed. Dynamic balance technical for rollers.

Brush device is available ,which can clean the cardboard before printing.

Delta inventor and PLC ,touch screen operation .

Schneider contactor/ electric

Main bearing use NSK brand.

wall thickness is 50mm

working speed: 120 sheets/minute

it adopts lead edge type feeding with 7.5 kw adsorption motor.

There is protect system for main motor(machine can not working when it is not locked for combination).

40Cr material /grinding technology for gears

Skipping feeding is available.

4 Color Flexo Printing Slotting Die Cutting Machine 2 Year Warranty

Printer unit

There is plating hung bar, it is easy to install the printing plate.

Exclusive design for the changing anilox roller and the rubber roller, if change the anilox roller and the rubber roller just need 2 hours, its save the time and the very convenient.

Auto zero with order memory function.

Touch screen operation .

Schneider contactor/ electric

NSK bearing for main transmission part

Gear adopt grinding technical for 40Cr material with thickness 50mm

Print rollers, ink roller and embossing rollers all adopt dynamic balance technical for ensure steady transmission.

Ink roller lifting automatically coordinate with feeding system. Installed wedge clutch which is good for ink distributing and washing.

Rubber roller made in JiZhou which is durable.

Ink roller adopt DaLian brand ,ink distributing is better.

Touch screen/ button adjusted on the side.

Ink automatic cycle.

LPI ranged from 200 to 280.

4 Color Flexo Printing Slotting Die Cutting Machine 2 Year Warranty

Slotter unit

Auto zero with order memory function.

Touch screen and button operation .

Schneider contactor/ electric

NSK bearing for main transmission part

Gear adopt grinding technical for 40Cr material with thickness 50mm

Slotting blades adopt alloy steel material with heating treatment and grinding technical which ensure its hardness and flexibility.

Carton height,length and width is controlled by touch screen

Auto zero with order memory function.
