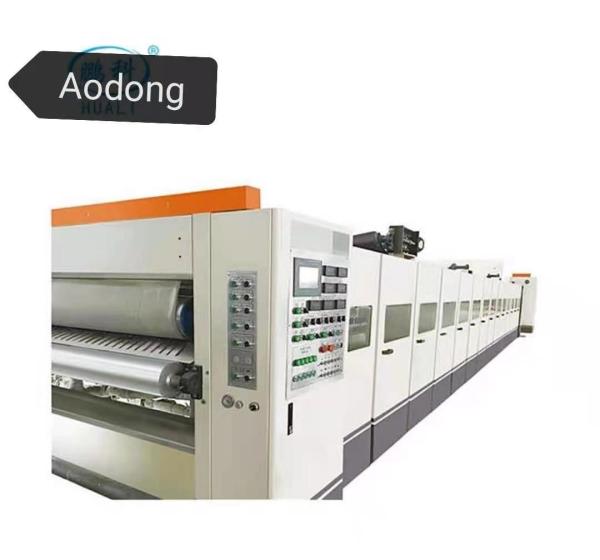

multilayer Corrugated Paperboard Production Line / Carton Box Cardboard Making Machine
multilayer Corrugated Paperboard Production Line / Carton Box Cardboard Making Machine
multilayer Corrugated Paperboard Production Line / Carton Box Cardboard Making Machine
multilayer Corrugated Paperboard Production Line / Carton Box Cardboard Making Machine
multilayer Corrugated Paperboard Production Line / Carton Box Cardboard Making Machine
multilayer Corrugated Paperboard Production Line / Carton Box Cardboard Making Machine
Specifications
Brand Name :
LUM -2021
Model Number :
2021-152
Certification :
ISO9001
Place of Origin :
CN
MOQ :
1 set
Price :
200USD-1000 USD
Payment Terms :
L/C, D/A, D/P, T/T, MoneyGram
Supply Ability :
20 sets per month
Delivery Time :
35 days
Packaging Details :
wood
After-sales service provided :
Engineers available to service machinery overseas,Field maintenance and repair service
Condition :
New
Voltage :
220V/380V
Type :
Feeding paper to corrugation machine/single facer,NC--200N,Corrugating Machine
Automatic grade :
Automatic,Semi-Automatic
Packaging type :
Cartons
Warranty :
12 Months
Power :
about 100kw,4.2-5.1KW,45kw,25kw-50kw,as requested
Name :
Double Wall Corrugated Cardboard Making Machine
Product name :
NC--200N Helical knives NC cutting machine,corrugated cardboard production line carton box making machine,Automatic Corrugated Carton Packing Machine,2 ply corrugated paperboard production line,kraft/cardboard/corrugated paper making machine price
Usage :
Making Carton,CORRUGATING CARDBOARD
Machine type :
Carton Packaging Machinery
Description

Multilayer Corrugated Paperboard Production Line / Carton Box Cardboard Making Machine

Max. paper width: 1800mm
Design Speed 150m/min
Max. speed of machine 120-130m/min
Steam consumption: 4000kg/hour

Working. pressure: 1.0-1.1MPa

Max. Pressure: 1.25Mpa
Power requested:

380V, 50Hz,3-phase

(Or as client's country situation)

Machine Parts


Hydraulic Mill Roll Stand

1. Reel paper lift-lower, clamp, loosen, movement, contra position operated by hydraulic.feeding kraft / reel paper quickly.

2. Brake: multiple-point brake.

3. Each stand with two feeding trolly

multilayer Corrugated Paperboard Production Line / Carton Box Cardboard Making Machine

multilayer Corrugated Paperboard Production Line / Carton Box Cardboard Making Machine

Main Features

φ600 Preheter
1. The pre-heater roller is under the stander of the 1st class(grade) pressure vessel of the national.
2. All the surfaces of every rollers have been grinded with high accuracy and chromed plated to less the resistance of paper preheating, long service of using life.
3. Electric to enlarge the preheating area, preheating area can be in 360° to adjust the preheating area.

Machine Parts

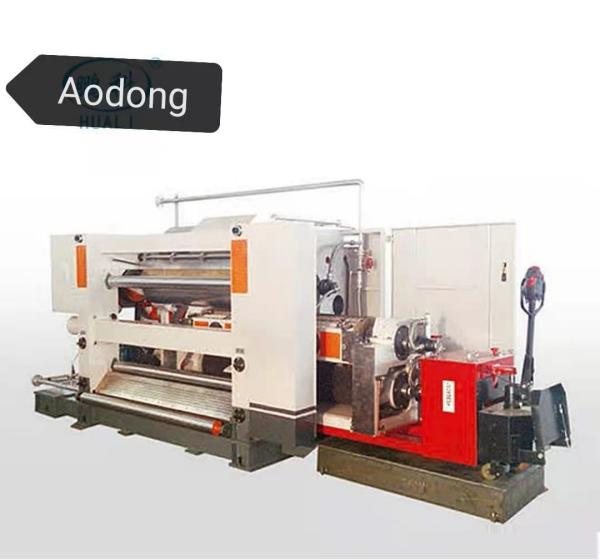

320 Fingerless Single Facer
48CrMo high quality alloy steel, rigidity HRC55°-58°
The surface of upper-lower roller is plating chrome, annealing, hardening and tempering, surface grinded
(U/V) ACBEF
Steam heating

Main Features

Gluer
1. After the glue roller surface quenched, bore machining, surface grinding and doing balancing engraved pit style textured, coating evenly, consume less glue.
2. Glue roller rotation frequency motor control, the inverter control ensures glue line speed and duplex roller synchronous machines, and can operate independently.
3. Electric adjustment digital glue. Automatic cycle for glue, glue avoid sedimentation and viscosity stability.
4. Pneumatic presses structure, trimming the gap by the electric. Upper and lower layer are used independently variable frequency motor drive.
5. Sided machine speed signal measurements taken in order to achieve its synchronous operation. Man-machine interface display, easy operation.

Product tags

corrugated cardboard manufacturing process

,

paper corrugated box making machinery

,

corrugated cardboard making machines
