MAIN SPECIFICATION

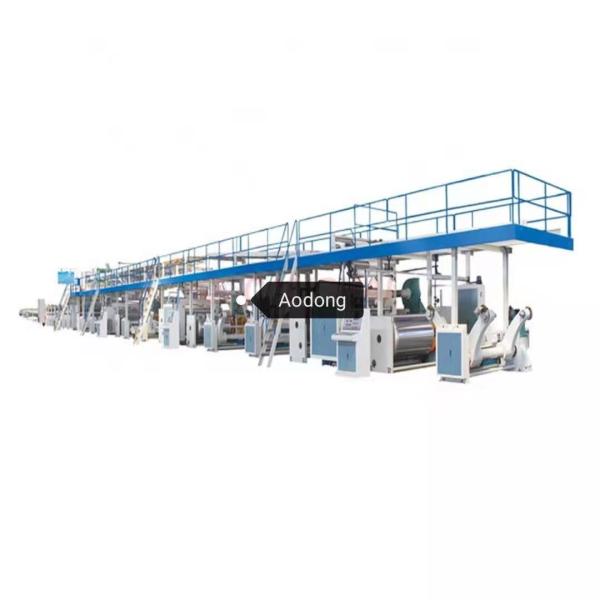

Corrugated Cardboard Production Line Manufacturing Machine 5 Ply

1.Manufacture width: 1800mm

2.Design speed: 150m/min Working speed: 100-120m/min

Note: The roll paper which is used to test the production speed should meet following requirements:

Grade: Min. B Moisture content: 11% ±2%

Face paper: 100~250g/m2 Liner paper: 100~150g/m2

Corrugated paper: 100- 200g/m2

3.Flute profiles: A,B,C ,E fluteas (per clients request)

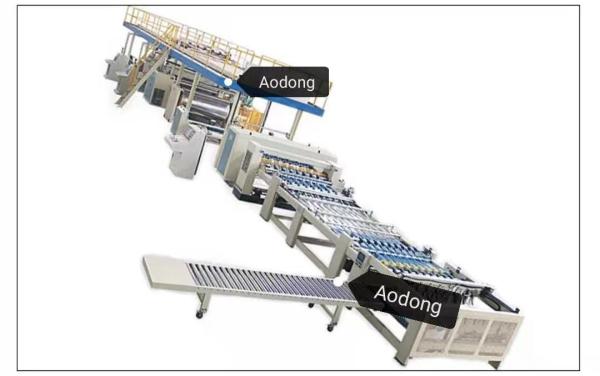

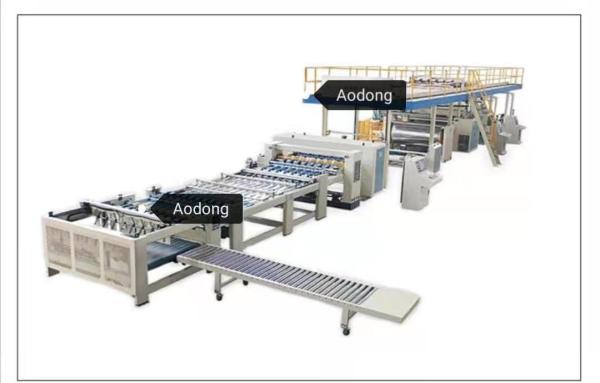

Corrugated cardboard production line is the professional equipment for producing corrugated cardboard .

The production line consists of the Mill Roll Stand, liner (medium paper ) Pre-heater, Single facer machine ,

Conveyor bridge , Gluing Machine, Double facer machine , Slitter Scorer , Cut-off , Conveyer and Stacker,

Heating System ,Air compression system and Glue Making System and so on. We produced different grade

3,5,7 ply corrugated production line with different fitting. On the base of understanding the requirements of

the customers and the advanced skills at home and abroad, our company has developed and designed these

production lines with the speed 60~220m/min, the paper with 1600~2200mm and A,B,C,E UV flute production

line can satisfy different customers.

4.Steam requirement:

Steam consumption:2500-3000kg/hr Max. Pressure:1.2Mpa

Air compressor pressure:0.8~1.1Mpa

5. Electricity: 380V, 50Hz,three-phase four wire type(also can do as per clients country electricity standard)

6. Equipment Occupation:the real data is according to the drawing

7. Equipment Direction:Left or Right transmission will be according to client's requirements.

8. Factory request size:specific length as to the foundation of drawing
