High Platform Type 12kw Paper Mounting Machine Semi Automatic
High Platform Type 12kw Paper Mounting Machine Semi Automatic
High Platform Type 12kw Paper Mounting Machine Semi Automatic
High Platform Type 12kw Paper Mounting Machine Semi Automatic
High Platform Type 12kw Paper Mounting Machine Semi Automatic
High Platform Type 12kw Paper Mounting Machine Semi Automatic
Specifications
Brand Name :
AODONG-2021
Model Number :
2021-18
Certification :
ISO9001
Place of Origin :
CN
MOQ :
1 set
Price :
15000-37000 usd
Payment Terms :
L/C, D/P, T/T
Supply Ability :
20 sets per month
Delivery Time :
35 days
Packaging Details :
plastic film
Automatic grade :
Semi-Automatic
Weight :
5T
Driven type :
Electric
After-sales service provided :
Online support
Type :
Laminating Machine,high speed semi-automatic flute laminating machine
Application :
Machinery & Hardware
Condition :
New
Packaging material :
Wood,Paper,Plastic
Packaging type :
Cartons,Case,Film
Power :
12kw
Product name :
semi automatic flute laminating machine,Flute Corruagated Cardboard Laminating Machine
Warranty :
12 months
Name :
flute laminating machine
Description

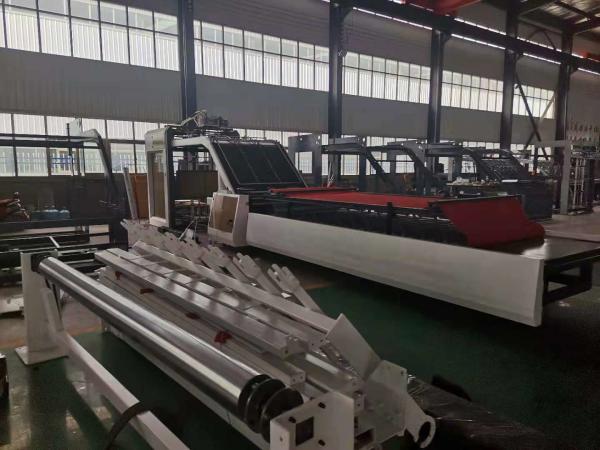

High Platform Type Semi Automatic Paper Mounting Machine
Performance characteristics:
Face paper can be piled up 1.5 meters at one time, and the paper pile automatically rises during paper feeding, making paper feeding easier and more efficient.
At the bottom, suction type automatic paper feeding is adopted, which can automatically and continuously track according to the speed of manual paper feeding.
New concept, pre-positioning, high positioning accuracy, never leading base paper, adjustable leading amount of face paper.
The whole machine adopts touch screen /PLC control system, and the circuit system runs stably and can automatically display fault alarm.
Full-automatic glue replenishment system can automatically replenish the lost glue amount in the bonding process, and cooperate with glue recycling to avoid glue loss and waste.
The linear speed of the metering roller is scientifically designed to ensure uniform gluing amount and avoid glue throwing during high-speed operation.
It is convenient and quick to adjust the pressure of each pressing roller by means of unilateral adjustment of worm gear rod.
Cleaning water source adopts independent water tank to control water circulation, and simultaneously cleans rubber roller, rubber roller and recovery tank.
It is suitable for 175g-500g color printing face paper to be mounted with A/B/C/D/E/F corrugated paper, and 175g-500g color printing face paper to be mounted with chip board.
　
Main technical parameters:
model
AO-1300W
AO-1450W
AO-1600W
max size f cover face (W×L)
1300×1100mm
1450×1100mm
1600×1100mm
mix size of cover face (W×L)
350×350mm
350×350mm
350×350mm
grass power
8.5kw
9.5kw
9.5kw
speed
0-90m/min
0-90m/min
0-90m/min
weight
5500kg
6500kg
7500kg
dimension (long×width×height)
10000×2200×2300mm
10000×2350×2300mm
10000×2500×2300mm

High Platform Type 12kw Paper Mounting Machine Semi AutomaticHigh Platform Type 12kw Paper Mounting Machine Semi AutomaticHigh Platform Type 12kw Paper Mounting Machine Semi Automatic
