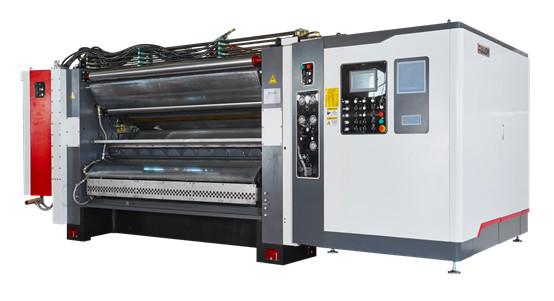

Used Cassette Type 380v Single Facer Machine Of Positive Pressure Air Cushion
Used Cassette Type 380v Single Facer Machine Of Positive Pressure Air Cushion
Used Cassette Type 380v Single Facer Machine Of Positive Pressure Air Cushion
Used Cassette Type 380v Single Facer Machine Of Positive Pressure Air Cushion
Specifications
Brand Name :
fuli
Model Number :
fuli-2018
Certification :
ISO9001
Place of Origin :
CN
MOQ :
1 set
Price :
8000 usd
Payment Terms :
L/C, D/P, T/T, Western Union, MoneyGram
Supply Ability :
only 1 set
Delivery Time :
35 days
Packaging Details :
plastic film
Voltage :
220v/380v/440v
Type :
Packaging Line
After-sales service provided :
Engineers available to service machinery overseas
Driven type :
Electric,Hydraulic
Warranty :
2 years
Power :
as requested
Name :
5 ply fully automatic box corrugated cardboard making machine price
Product name :
corrugated cardboard production line carton box making machine
Function :
High Efficiency
Machine type :
Carton Packaging Machinery
Description

Used Cassette Type Single Facer Of Positive Pressure Air Cushion

1. positive pressure air cushion type paper guide is adopted, which has high heat energy utilization rate and good corrugated forming quality;
2. Corrugating roller adopts positive pressure cassette type, which is placed under the pressure roller to lower the center of gravity of the machine. The upper and lower corrugating rollers adopt the cooperation of large and small rollers, different rotating speeds, and adopt embedded underframe, which can run smoothly at high speed and reduce vibration.
3. Opening and closing of corrugated roller, opening and closing of pressure roller, opening and closing of paste roller and locking of corrugated roller set are all controlled by hydraulic pressure.
4. Use closed thickened wallboard made of ductile iron and integrated base to increase rigidity and reduce machine vibration;
5. The corrugated roller set can be switched in and out electrically to quickly change various corrugations;
6. The pressure adjustment of corrugated roller and pressure roller is independently controlled by hydraulic pressure of positive and negative cylinders (both sides are provided), and the pressure adjustment of corrugated roller and paste roller is controlled by hydraulic pressure.
7. Corrugating roller is directly driven by motor synchronous belt, which runs stably and reliably with low noise;
8. The independent pasting machine can swing out of the main machine, which is easy to clean and maintain. The hydraulic swing arm structure makes the pasting machine position more stable and reliable; PLC automatic slurry mixing system.
9. The machine is internally provided with a tissue preheating roller and a core paper arc heating plate, and the tissue preheating roller is driven by an independent motor to rotate.
10. Equipped with air-cooled water chillers, which are used in water-cooled pulp retaining plates and hydraulic stations;
11. Stop device for broken core paper. The speed is more than 15m/min. When broken core paper is detected, the rollers are separated and the motor stops running.
