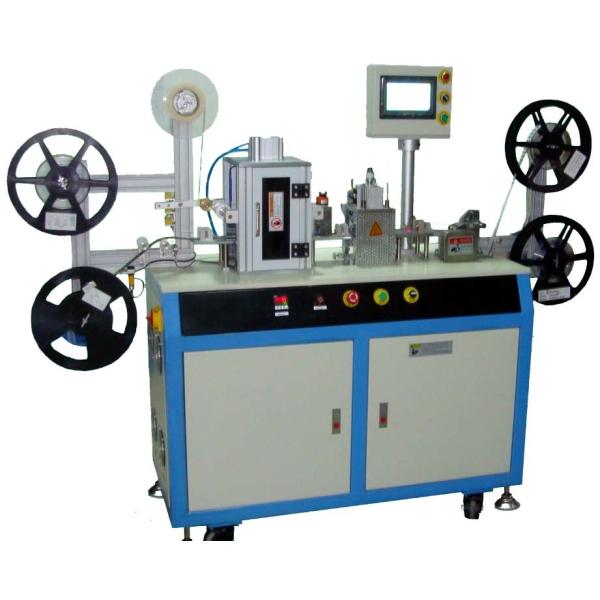

Contact IC Chip Tape Glue Preparation Machine for 6 Pin Chip And 8 Pin Chip
Contact IC Chip Tape Glue Preparation Machine for 6 Pin Chip And 8 Pin Chip
Contact IC Chip Tape Glue Preparation Machine for 6 Pin Chip And 8 Pin Chip
Contact IC Chip Tape Glue Preparation Machine for 6 Pin Chip And 8 Pin Chip
Contact IC Chip Tape Glue Preparation Machine for 6 Pin Chip And 8 Pin Chip
Contact IC Chip Tape Glue Preparation Machine for 6 Pin Chip And 8 Pin Chip
Contact IC Chip Tape Glue Preparation Machine for 6 Pin Chip And 8 Pin Chip
Contact IC Chip Tape Glue Preparation Machine for 6 Pin Chip And 8 Pin Chip
Specifications
Brand Name :
YL
Model Number :
YCGP-1
Place of Origin :
China
MOQ :
1 set
Price :
negotiable
Payment Terms :
T/T, Western Union, MoneyGram
Supply Ability :
1 set per 35 days
Delivery Time :
30-35days
Packaging Details :
1 plywood case
Power :
around 1.0kiw
Power supply :
AC220V 50/60 HZ
Compressed air :
6kg/cm²（dry oil free）
spped 1 :
9000~12000chips/hour( 2 times of hot welding)
spped 2 :
15000~18000chips/hour( 1 time of hot welding)
Module specification :
ISO standard contact IC card chip tape (M3/8-pin & M2/6-pin）
Description

6-Pin Chip And 8-Pin Chip Contact IC Chip Tape Glue Preparation Machine YCGP-1 With Hot Welding Glue Preparation Tech

IC Chip Tape Glue Preparation Machine YCGP-1

Contact IC Chip Glue Applicator, Contact IC Card Machine, IC Chip Tape Glue Pastor, IC Card Machine

1. Introduction of 6-Pin Chip And 8-Pin Chip Contact IC Chip Tape Glue Preparation Machine YCGP-1 With Hot Welding Glue Preparation Tech

The machine is automatically controlled by PLC program. The imported high-quality stepper motor is used to transport IC module strip and hot melt glue for precise glue preparation. The production speed is fast and the glue preparation precision is high.

Contact IC Chip Tape Glue Preparation Machine for 6 Pin Chip And 8 Pin Chip

2. Features of 6-Pin Chip And 8-Pin Chip Contact IC Chip Tape Glue Preparation Machine YCGP-1 With Hot Welding Glue Preparation Tech

It integrates the transportation of IC module strip and hot melt adhesive strip, glue flushing, hot welding preparation and finished product collection.

1) the hot welding glue preparation welding head adopts automatic correction and balance structure design, so that the glue preparation effect is better and the debugging is more convenient.

2) the hot welding and glue punching molds are equipped with position fine-tuning mechanism, which makes the punching precision higher and the operation more convenient.

3) reasonable mold structure design can ensure easy and convenient replacement. When preparing glue for different types of IC modules, it can be completed only by replacing the mold.

4) the stepping position of IC module is automatically monitored and protected by electric sensor eye. If the position is incorrect, it will automatically alarm and display shutdown.

5) the material belt will automatically discharge and receive materials. If there is no material in the feed, it will automatically alarm and shut down.

Contact IC Chip Tape Glue Preparation Machine for 6 Pin Chip And 8 Pin Chip

3. Technical Parameter of 6-Pin Chip And 8-Pin Chip Contact IC Chip Tape Glue Preparation Machine YCGP-1 With Hot Welding Glue Preparation Tech

Power AC220V 50/60 HZ operator 1 person
Main Power Around 1.0 KW Speed 9000~12000chips/hour( 2 times of hot welding)
Compressed air 6kg/cm²(dry oil free) 15000~18000chips/hour( 1 time of hot welding)
Air comsupmtion Around 30L/min Bonding mode Hot melt glue(like Tesa 8410, Scapa G175 or similar)
NW Around 400Kg Module specification ISO standard contact IC card chip tape (M3/8-pin & M2/6-pin)
Control mode PLC+stepper system Machine size

Around L1700×W800×H1600mm

Contact IC Chip Tape Glue Preparation Machine for 6 Pin Chip And 8 Pin Chip

4. Application of 6-Pin Chip And 8-Pin Chip Contact IC Chip Tape Glue Preparation Machine YCGP-1 With Hot Welding Glue Preparation Tech

It is applicable to the preparation and processing of various types of contact IC chip or module tape (such as 6-pin chip and 8-pin chip).

Contact IC Chip Tape Glue Preparation Machine for 6 Pin Chip And 8 Pin Chip
