Manual Cutting IC Module Punching Contact IC Card Module Cutter YMC-1 With SMC Pneumatic Parts

1. Introduction of Manual Cutting IC Module Punching Contact IC Card Module Cutter YMC-1 With SMC Pneumatic Parts

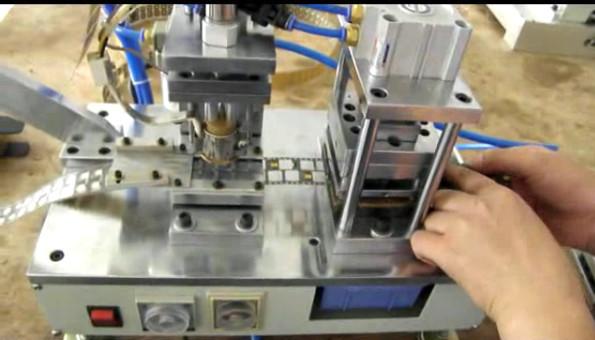

The machine is designed for cutting the single IC chips from the IC Module tape after the hot melt glue is pressed to the IC module bottom side.

Basic configuration

Material releasing (glue tape wheel and chip reel wheel) →hot pressing station (stick the glue tape onto chip bottom by hot lamination)→chip cutting station( cut the chip tape into single pieces)→chip collection unit

1. ) Speed: 4000-6000 units per hour
2. ) Material model: M2/M3 standard chip tape
3. ) Compressed air: 6 kg/cm²
4. ) Air Consumption: 10 L/min.
5. ) Power:0.4KW
6. ) Power supply: AC220V 50/60HZ4
7. ) Weight: 30 KG
8. ) Dimension: L600×W300×H300mm

2. Features of Manual Cutting IC Module Punching Contact IC Card Module Cutter YMC-1 With SMC Pneumatic Parts

Feature:

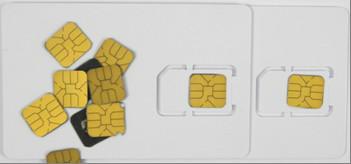

1. The machine is designed for manual cutting the single IC chips from the various IC Module tape after the hot melt glue is pressed to the IC module bottom side.
2. The simple structure of the machine, easy to operate and maintain, improve the life space of the machine, and ensure the production efficiency of the machine.
3. The machine runs stable and safe safely ,the whole process can be handle only by one people.
4. The temperature, time and pressure of the hot melt glue are adjustable.
5. Equipped with finishes product collection device, easy for operation and adjustment.

3. Technical Parameter of Manual Cutting IC Module Punching Contact IC Card Module Cutter YMC-1 With SMC Pneumatic Parts

Machine Spec:

1.Power supply: AC220V 50/60HZ4

2.Weight: About 30 KG

3.Dimension: L1000×W450×H550mm

4. Material model: various contact and contactless chip

5.Compressed air: 6 kg/cm²

6.Operator:1 Person

4. Application of Manual Cutting IC Module Punching Contact IC Card Module Cutter YMC-1 With SMC Pneumatic Parts

Manual Cutting IC Module Punching Contact IC Card Module Cutter YMC-1 With SMC Pneumatic Parts is also called IC chip cutter, IC chip tape puncher, IC module tape cutter, IC card machine, smart card machine
